TBTTSR-1J
TBTSCIETECH
| Availability: | |
|---|---|
Introduction
TBTTSR-1J adopts single observation angle and illumination angle for measuring RA(nighttime retroreflection) on traffic sign, high visibility clothing, conspicuity tape and license plate.
For demand of multi-angle version, you can select TBTTSR-1M.
Referring Standard
ASTM E1709, ASTM E1809, ASTM E2540
Features
1. Equip with imported sensor to ensure accuracy of measurement;

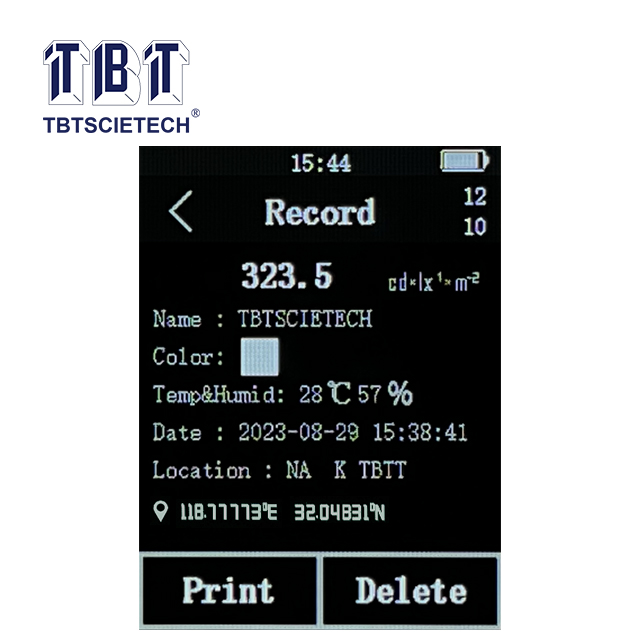

2. Colour touch screen real-time display temperature and humidity;
3. Ultrafast retroreflection measurement;
4. USB port for test data exporting to computer;
5. Support connect with extension rod, Bluetooth printer and GPS;
6. Multi-languages are available.
Technical Specification
Measurement items | Retroreflective coefficient (cd•lx-1•m-2) |
Measuring range | 0~4000(cd•lx-1•m-2) |
Observation angle | Standard angle: 0.2° (Any one from 0.2°, 0.33°, 0.5°, 1°) |
Illumination angle | Standard angle: -4° (Any one from -4°, 5°, 10°, 20°, 30°, 40°, 45°) |
Measuring area | φ25mm |
Light source color temp. | 2856±50k(standard A light source) |
Measuring time | ≈2s |
Data storage | 4GB |
Screen | 3.5inch colorful touch screen |
Battery working time | >30h |
Batter capacity | 12V/5.2Ah |
Ambient temperature & humidity | -15℃~+60℃, <98%, no frost |
Size | Around 200x75x55mm |
Net weight | Around 0.45KG |
Configuration
No. | Item | Standard/Optional | Quantity |
1 | Retroreflectometer | Standard | 1pc |
2 | Calibration Plates | Standard | 1set |
3 | Battery Charger | Standard | 1pc |
4 | USB Cable for Data Transfer to Computer | Standard | 1pc |

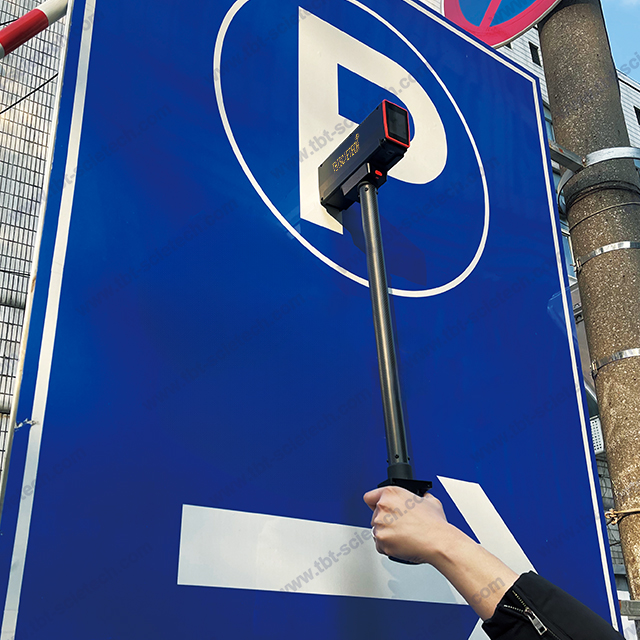

5 | Extension Rod 50cm | Optional | 1pc |
6 | Bluetooth Printer | Standard | 1pc |
7 | GPS | Standard | 1pc |
8 | Certificate of Calibration | Standard | 1pc |
9 | Instruction Manual | Standard | 1pc |

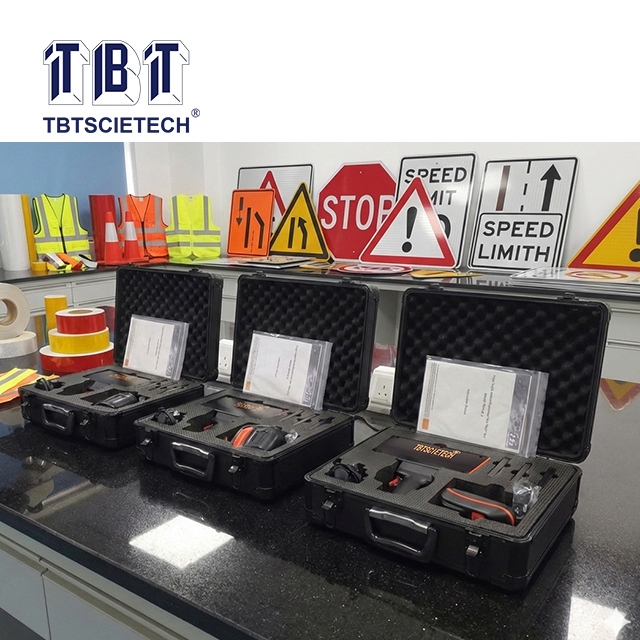

10 | Carrying Case | Standard | 1pc |
