TBTRMT-1
TBTSCIETECH
| Availability: | |
|---|---|
Introduction

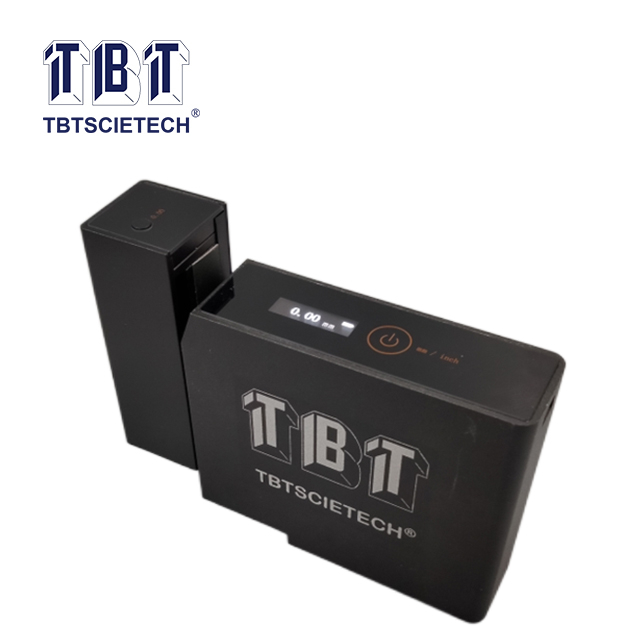

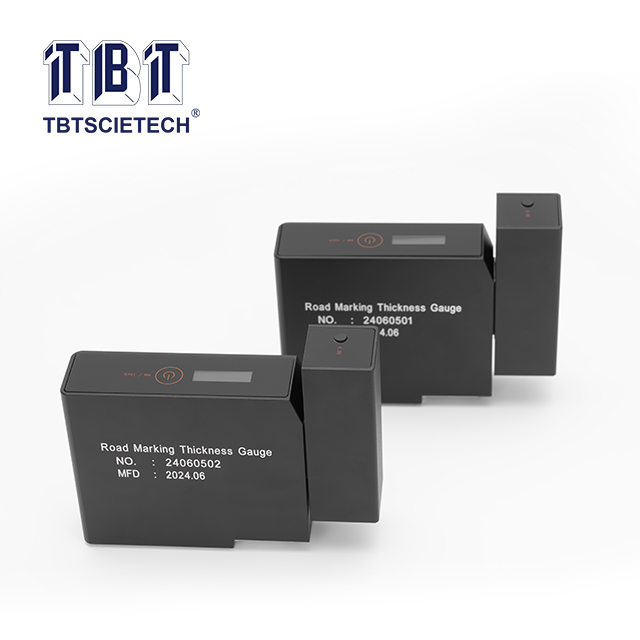

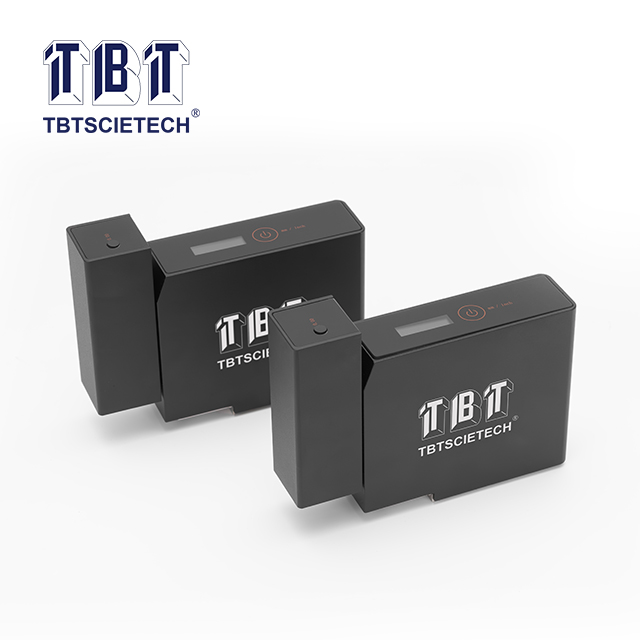

TBTRMT-1 is a digital device for measuring the thickness of dry pavement markings with OLED screen.
It ensures a simple but efficient metric for measurement and apply to quality control and inspection of marking coating thickness for road maintenance units, road marking lacquer manufacturers, construction companies, quality supervision department.
Referring Standard
EN 13197
Features
1. Portable design, easy to carry, single hand operation;
2. OLED screen display test data;
3. Built-in large capacity lithium battery for long standby time;
4. High accuracy in 0.02mm;
5. 00 level marble demarcation board, make sure calibration accuracy;
6. Rigid aluminum alloy housing.
Technical Specification
Measuring range | ±12.7mm |
Measuring resolution | 0.01mm |
Accuracy | 0.02mm |
Calibration block accuracy | Grade 00 |
Display | OLED |
Li-battery working time | >30hr |
Power supply | 12V 5.2Ah |
Working temp. & humidity | -15C ~ 60C / <98% |
Size | Around 140x110x30mm |
New weight | Around 0.45KG |

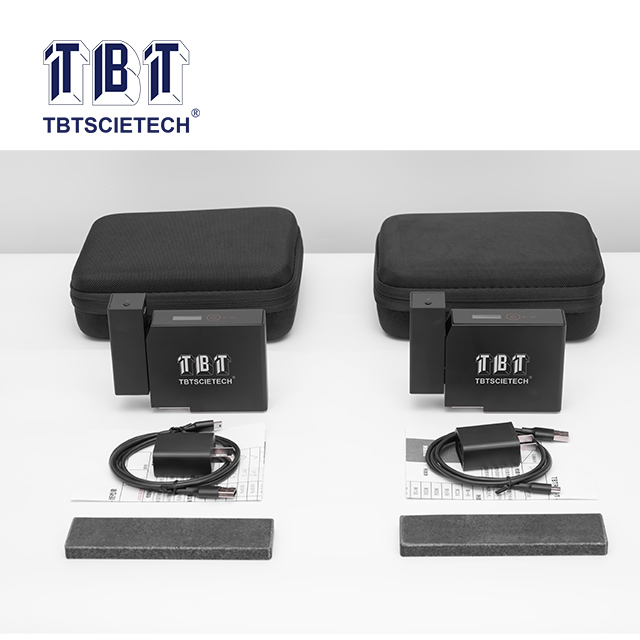

Configuration
No. | Description | Standard/Optional |
1 | 1pc Main Host | Standard |
2 | 1pc Calibration Block | Standard |
3 | 1pc Battery Charger | Standard |
4 | 1pc Operation Manual | Standard |
5 | Carrying Case | Standard |
