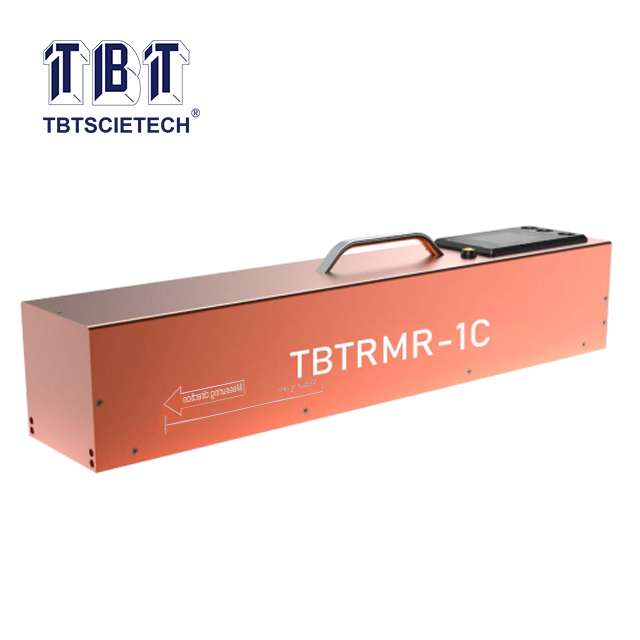

TBTRMR-1C
TBTSCIETECH
| Availability: | |
|---|---|
Introduction
TBTRMR-1C is a portable on-site instrument which simulate the brightness of road and airport marking that can be seen by the driver under the illumination of motor vehicles, and determine the retroreflection characteristic.
It supports simultaneously measure index of night visibility(RL), temperature and humidity efficiently.
Referring Standard
ASTM E1710(RL), EN 1436
Features
1. Equip with imported sensor;
2. Touch screen real-time display temperature and humidity;
3. Ultrafast retroreflectometer measurement;
4. Real-time broadcasting of test data;
5. USB port for test data exporting to computer;
6. Mini Bluetooth printer;
7. GPS for longitude and latitude for each test data;
8. English software or customized language are available.
Specification
Measurement items | Retroreflective coefficient (mcd•m-2•lx-1) |
Measurement range | RL(mcd•m-2•lx-1): 0~4000 |
Illumination angle RL | ASTM E1710: 88.76° EN 1436: 1.24° |
Observation angle RL | ASTM E1710: 1.05° EN 1436: 2.29° |
Light source color temperature | 2856±50K |
Error of repeatable measurement | ≤2% |
Continuous working time of battery | ＞30h |
Data storage space | More than 100,000 data |
Built-in battery capacity | 12V / 5.2Ah |
Charger | DC 15V |
Ambient temperature | -15℃~+60℃ |
Ambient humidity | ＜98%, no frost |
Measurement | Around 700mm x 140mm x 140mm |
Weight | Around 5KG |

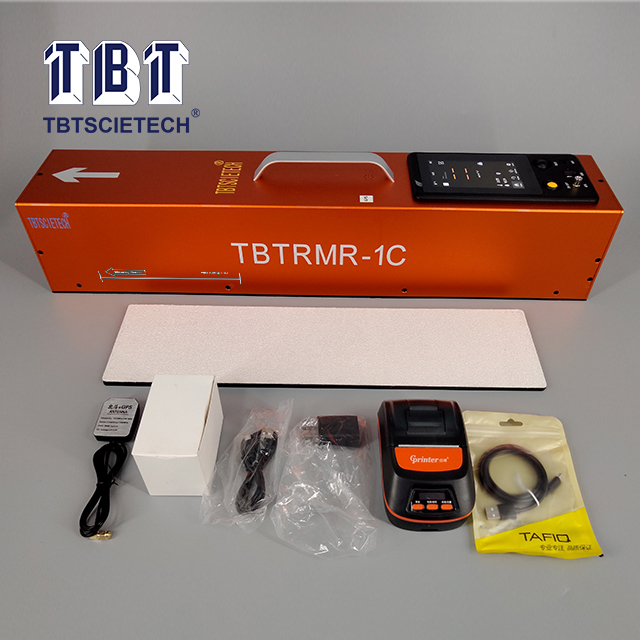

Configure
No. | Description | Standard/Optional |
1 | 1pc Retroreflectometer | Standard |
2 | 2pcs Calibration Plate(Black & White) | Standard |
3 | 1pc GPS | Optional |
4 | 1pc Battery Charger | Standard |
5 | 1pc USB Cable for Data Transfer to Computer | Standard |
6 | 1pc Bluetooth Printer | Standard |
7 | 1pc Certificate of Calibration | Standard |
8 | 1pc Operation Manual | Standard |
9 | Carrying Case | Standard |
