TBTUTM-CSI Series
TBTSCIETECH
| TBTUTM-100CSI: | |
|---|---|
| TBTUTM-300CSI: | |
| TBTUTM-600CSI: | |
| TBTUTM-1000CSI: | |
| Availability: | |

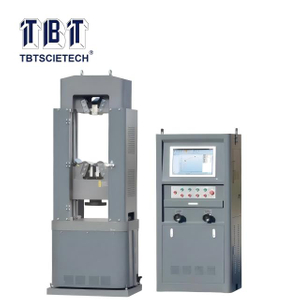

This series of products are mainly used for metal, nonmetal materials tensile, compression, bending, shear and other mechanical properties.
Machines composed of four column, two screw rod, double space frame structure, tension and compression space spacing electrically adjustable, hydraulic automatic way fixture clamping, gripping, reliable, and convenient.There are built-in beam coil spring buffer device, which can effectively eliminate the transmission gap between the screw and nut, and play a good role in the sample buffer pull off. Top of the platform configuration and high toughness fence, the space between the test and the formation of the operator isolation, can effectively guarantee the safety of the operator.
Machines adopt industrial PC which is convenient and easy for operating; Software with a variety of control methods load, displacement, stress, strain, elongation, etc. Test data using standard database management, enabling test data and analysis of the curve, and then edit the local amplification and data can automatically determine the mechanical properties of the material, you can print out the complete test report and curves.
This series of products are mainly used for metal, nonmetal materials tensile, compression, bending, shear and other mechanical properties.
Machines composed of four column, two screw rod, double space frame structure, tension and compression space spacing electrically adjustable, hydraulic automatic way fixture clamping, gripping, reliable, and convenient.There are built-in beam coil spring buffer device, which can effectively eliminate the transmission gap between the screw and nut, and play a good role in the sample buffer pull off. Top of the platform configuration and high toughness fence, the space between the test and the formation of the operator isolation, can effectively guarantee the safety of the operator.
Machines adopt industrial PC which is convenient and easy for operating; Software with a variety of control methods load, displacement, stress, strain, elongation, etc. Test data using standard database management, enabling test data and analysis of the curve, and then edit the local amplification and data can automatically determine the mechanical properties of the material, you can print out the complete test report and curves.
A. TBTUTM-CSI series adopts hydraulic power source drive, electro-hydraulic servo control technology, computer data acquisition and processing, high-precision material testing equipment
It can realize closed-loop control and automatic testing.
B. It is composed of main unit, oil source (hydraulic power source), measurement and control system, Four parts, the maximum test force 1000kN, test machine accuracy level better than 1 level.
C. the maximum test force 100kN / 300kN / 600kN / 1000kN. Accuracy level better than 1 level.
D. It can meet the national requirements of metal tensile test in the standard test requirements, but also in accordance with other standards for different materials or products of the tensile, compression, bending, cutting, etc.
Result including: tensile strength, yield strength and other performance;

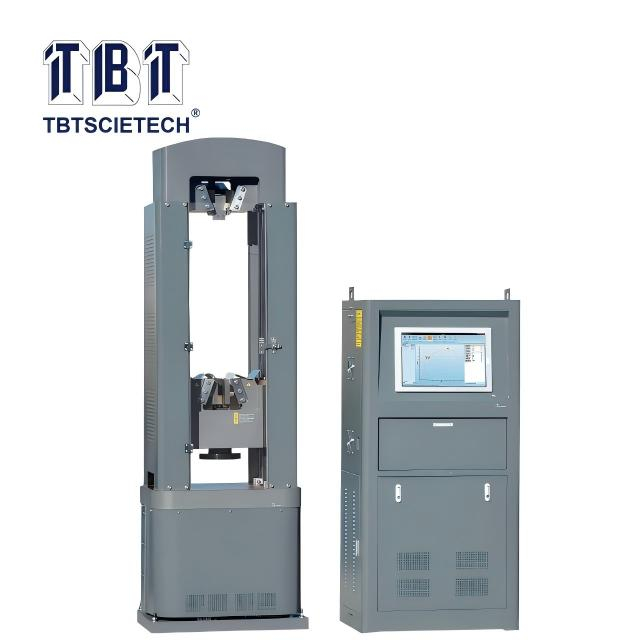

E. It is a 6 column, double space structure, stretching space between the upper beam and the lower beam, compression space between the lower beam and the test bench, the test space through the sprocket and lead screw rotating the lower beam to move up and down To adjust automatically. The upper and lower beams are equipped with hydraulically controlled clamping jaws. The standard models are equipped with V-shaped and flat jaws for tension testing cylindrical and flat specimens. The lower end of the standard cross-beam is equipped with On the pressure plate, test bench with a spherical structure with the pressure plate can conduct compression test.
F. It is designed to expand the possibility of fitting additional fixtures to accomplish more tests.
Such as: bolt installation fixture can be used to do the bolt stretching,
with bending fixture can do round bar or plate bending test,
equipped with cutting fixture can do round bar shear strength test,
in the compression space with a flexure, shear, splitting, elastic modulus instrument can do concrete and cement block test.
A. TBTUTM-CSI series adopts hydraulic power source drive, electro-hydraulic servo control technology, computer data acquisition and processing, high-precision material testing equipment
It can realize closed-loop control and automatic testing.
B. It is composed of main unit, oil source (hydraulic power source), measurement and control system, Four parts, the maximum test force 1000kN, test machine accuracy level better than 1 level.
C. the maximum test force 100kN / 300kN / 600kN / 1000kN. Accuracy level better than 1 level.
D. It can meet the national requirements of metal tensile test in the standard test requirements, but also in accordance with other standards for different materials or products of the tensile, compression, bending, cutting, etc.
Result including: tensile strength, yield strength and other performance;
E. It is a 6 column, double space structure, stretching space between the upper beam and the lower beam, compression space between the lower beam and the test bench, the test space through the sprocket and lead screw rotating the lower beam to move up and down To adjust automatically. The upper and lower beams are equipped with hydraulically controlled clamping jaws. The standard models are equipped with V-shaped and flat jaws for tension testing cylindrical and flat specimens. The lower end of the standard cross-beam is equipped with On the pressure plate, test bench with a spherical structure with the pressure plate can conduct compression test.
F. It is designed to expand the possibility of fitting additional fixtures to accomplish more tests.
Such as: bolt installation fixture can be used to do the bolt stretching,
with bending fixture can do round bar or plate bending test,
equipped with cutting fixture can do round bar shear strength test,
in the compression space with a flexure, shear, splitting, elastic modulus instrument can do concrete and cement block test.
TBTUTM-100CSI | TBTUTM-300CSI | |
Capacity： | 100KN | 300KN |
Accuracy degree: | Grade 1 | Grade 1 |
Relative error: | ±1% | ±1% |
Effective measurement range： | 1%-100%F·S(full measurement) | 1%-100%F·S(full measurement) |
Deformation measurement range | 1%-100%F·S | 1%-100%F·S |
Deformation indicate relative error | ±1% | ±1% |
Displacement relative error | ±1% | ±1% |
Displacement measurement resolution | 0.001mm | 0.001mm |
Stress rate relative error | ±2% | ±2% |
Displacement rate control relative error | ±1% | ±1% |
The strain rate control adjustment range | 0.00025/s-0.0025/s | 0.00025/s-0.0025/s |
The strain rate control relative error | ±2% | ±2% |
Stress, deformation & displacement control range | 0.3%-100%F·S | 0.3%-100%F·S |
Stress, deformation & displacement relative error | ≦1% | ≦1% |
Middle beam lifting speed | 320 mm/min | 320 mm/min |
Distance between upper and lower platen | 500mm | 600 mm |
Tensile distance | 600mm max | 700mm max |
Effective distance between two columns | 380mm | 380mm |
Piston stroke | 200mm | 200 mm |
Piston loading max. speed | 100mm/min | 120 mm/min |
Round specimen diameter | Φ6mm -Φ22mm | Φ10mm -Φ32mm |
Flat specimen diameter | 0 mm -15mm | 0 mm -20mm |
The maximum distance between the bending test | 300mm | 300 mm |
Power supply | 380VAC/220VAC | 380VAC/220VAC |
TBTUTM-600CSI | TBTUTM-1000CSI | |
Capacity： | 600KN | 1000KN |
Accuracy degree: | Grade 1 | Grade 1 |
Relative error: | ±1% | ±1% |
Effective measurement range： | 1%-100%F·S(full measurement) | 1%-100%F·S(full measurement) |
Deformation measurement range | 1%-100%F·S | 1%-100%F·S |
Deformation indicate relative error | ±1% | ±1% |
Displacement relative error | ±1% | ±1% |
Displacement measurement resolution | 0.001mm | 0.001mm |
Stress rate relative error | ±2% | ±2% |
Displacement rate control relative error | ±1% | ±1% |
The strain rate control adjustment range | 0.00025/s-0.0025/s | 0.00025/s-0.0025/s |
The strain rate control relative error | ±2% | ±2% |
Stress, deformation & displacement control range | 0.3%-100%F·S | 0.3%-100%F·S |
Stress, deformation & displacement relative error | ≦1% | ≦1% |
Middle beam lifting speed | 320 mm/min | 320 mm/min |
Distance between upper and lower platen | 600mm | 600 mm |
Tensile distance | 700mm max | 700 mm max |
Effective distance between two columns | 375mm | 455mm |
Piston stroke | 200mm | 200 mm |
Piston loading max. speed | 120mm/min | 100 mm/min |
Round specimen diameter | Φ13 mm -Φ40 mm | Φ14 mm -Φ45 mm |
Flat specimen diameter | 0 mm -20 mm | 0 mm -40 mm |
The maximum distance between the bending test | 300mm | 300 mm |
Power supply | 380VAC/220VAC | 380VAC/220VAC |
TBTUTM-100CSI | TBTUTM-300CSI | |
Capacity： | 100KN | 300KN |
Accuracy degree: | Grade 1 | Grade 1 |
Relative error: | ±1% | ±1% |
Effective measurement range： | 1%-100%F·S(full measurement) | 1%-100%F·S(full measurement) |
Deformation measurement range | 1%-100%F·S | 1%-100%F·S |
Deformation indicate relative error | ±1% | ±1% |
Displacement relative error | ±1% | ±1% |
Displacement measurement resolution | 0.001mm | 0.001mm |
Stress rate relative error | ±2% | ±2% |
Displacement rate control relative error | ±1% | ±1% |
The strain rate control adjustment range | 0.00025/s-0.0025/s | 0.00025/s-0.0025/s |
The strain rate control relative error | ±2% | ±2% |
Stress, deformation & displacement control range | 0.3%-100%F·S | 0.3%-100%F·S |
Stress, deformation & displacement relative error | ≦1% | ≦1% |
Middle beam lifting speed | 320 mm/min | 320 mm/min |
Distance between upper and lower platen | 500mm | 600 mm |
Tensile distance | 600mm max | 700mm max |
Effective distance between two columns | 380mm | 380mm |
Piston stroke | 200mm | 200 mm |
Piston loading max. speed | 100mm/min | 120 mm/min |
Round specimen diameter | Φ6mm -Φ22mm | Φ10mm -Φ32mm |
Flat specimen diameter | 0 mm -15mm | 0 mm -20mm |
The maximum distance between the bending test | 300mm | 300 mm |
Power supply | 380VAC/220VAC | 380VAC/220VAC |
TBTUTM-600CSI | TBTUTM-1000CSI | |
Capacity： | 600KN | 1000KN |
Accuracy degree: | Grade 1 | Grade 1 |
Relative error: | ±1% | ±1% |
Effective measurement range： | 1%-100%F·S(full measurement) | 1%-100%F·S(full measurement) |
Deformation measurement range | 1%-100%F·S | 1%-100%F·S |
Deformation indicate relative error | ±1% | ±1% |
Displacement relative error | ±1% | ±1% |
Displacement measurement resolution | 0.001mm | 0.001mm |
Stress rate relative error | ±2% | ±2% |
Displacement rate control relative error | ±1% | ±1% |
The strain rate control adjustment range | 0.00025/s-0.0025/s | 0.00025/s-0.0025/s |
The strain rate control relative error | ±2% | ±2% |
Stress, deformation & displacement control range | 0.3%-100%F·S | 0.3%-100%F·S |
Stress, deformation & displacement relative error | ≦1% | ≦1% |
Middle beam lifting speed | 320 mm/min | 320 mm/min |
Distance between upper and lower platen | 600mm | 600 mm |
Tensile distance | 700mm max | 700 mm max |
Effective distance between two columns | 375mm | 455mm |
Piston stroke | 200mm | 200 mm |
Piston loading max. speed | 120mm/min | 100 mm/min |
Round specimen diameter | Φ13 mm -Φ40 mm | Φ14 mm -Φ45 mm |
Flat specimen diameter | 0 mm -20 mm | 0 mm -40 mm |
The maximum distance between the bending test | 300mm | 300 mm |
Power supply | 380VAC/220VAC | 380VAC/220VAC |
