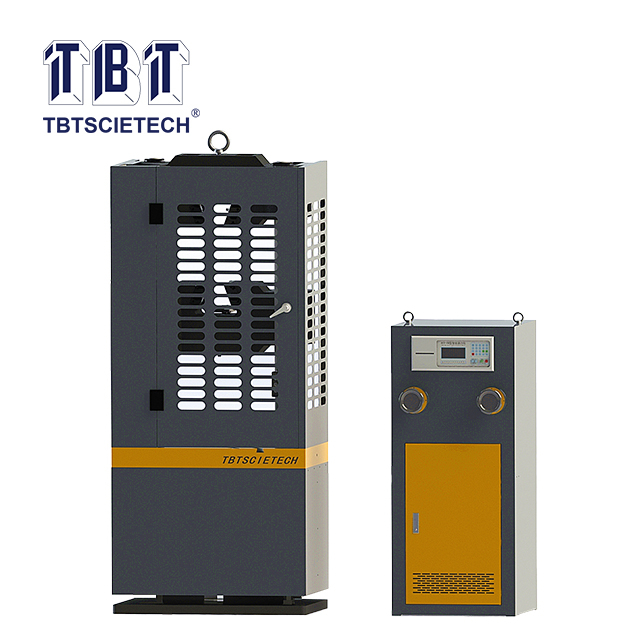

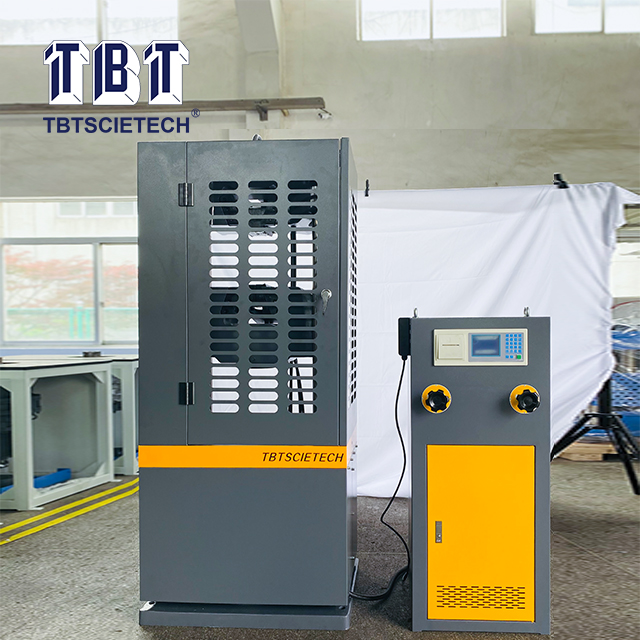

TBTUTM-B Series
TBTSCIETECH
| TBTUTM-100B: | |
|---|---|
| TBTUTM-300B: | |
| TBTUTM-600B: | |
| TBTUTM-1000B: | |
| Availability: | |
This UTM is mainly designed for metal specimen tension test, compression test and bending test, also for non-metal of compression test, such as concrete and stone. If the proper jigs are provided, it can be used for various tests in the laboratories of mills, factories, colleges and research units concerned.
It is featured with hydraulic loading, electronic force measurement, the load, displacement and loading speed display, peak force value maintained, overload protection and test data protection when the power supply is cut off temporarily. The test data can be processed automatically and printed out.
This UTM is mainly designed for metal specimen tension test, compression test and bending test, also for non-metal of compression test, such as concrete and stone. If the proper jigs are provided, it can be used for various tests in the laboratories of mills, factories, colleges and research units concerned.
It is featured with hydraulic loading, electronic force measurement, the load, displacement and loading speed display, peak force value maintained, overload protection and test data protection when the power supply is cut off temporarily. The test data can be processed automatically and printed out.
1. Entire load without divide gear, the performance is more superior.
2. Hydraulic system with high quality hydraulic components, to ensure long-term system, stable operation.
3. With overload, limit and other protection features, safe and reliable.
4. Up and down the beam to form tensile space, the lower beam and test bench to form a compression space, to facilitate the completion of a variety of tests.
1. Entire load without divide gear, the performance is more superior.
2. Hydraulic system with high quality hydraulic components, to ensure long-term system, stable operation.
3. With overload, limit and other protection features, safe and reliable.
4. Up and down the beam to form tensile space, the lower beam and test bench to form a compression space, to facilitate the completion of a variety of tests.
Model | TBTUTM-100B | TBTUTM-300B | TBTUTM-600B | TBTUTM-1000B |
Max. Capacity(KN) | 100 | 300 | 600 | 1000 |
Range | 4%-100%F.S.(Full range, without gear） | |||
Reading accuracy | Grade 1 | |||
Error | ±1% | |||
Column Number | 4 | 4 | 4 | 6 |
Width between two column | 345 | 430 | 515 | 510 |
Max tensile space（mm) | 500 | 600 | 600 | 600 |
Max compression space(mm) | 500 | 600 | 600 | 600 |
Bending test Distance between two points (mm) | 100-270 | 100-350 | 100-400 | 100-400 |
Round specimen clamp diameter(mm) | Ø6-Ø22 | Ø10-Ø32 | Ø13-Ø40 | Ø20-Ø40 |
Flat specimen clamp thickness (mm) | 0-15 | 0-15 | 0-15 | 0-40 |
Stroke (mm) | 150 | 200 | ||
Pistons rise fastest speed(mm/min） | 100 | 80 | ||
Beam rising speed (mm/min) | 310 | 250 | 250 | 310 |
Displacement reading relative error | ±1% | |||
Motor capacity (KW) | 2 | 2.5 | ||
Main unit dimension (mm) | 665×490×1600 | 740×460×1900 | 850×560×2000 | 960×620×2100 |
Oil source cabinet dimension (mm) | 540×540×1300 | |||
Main unit weight | 600 | 1200 | 1750 | 2200 |
Oil source cabinet weight | 210 | |||
1. working temperature: 10~35C
2. Relative humidity: less than 80%
3. Power supply: 220VAC or 380VAC
4. Machine should be placed in a clean place, away from vibration, corrosion and magnetic field.
