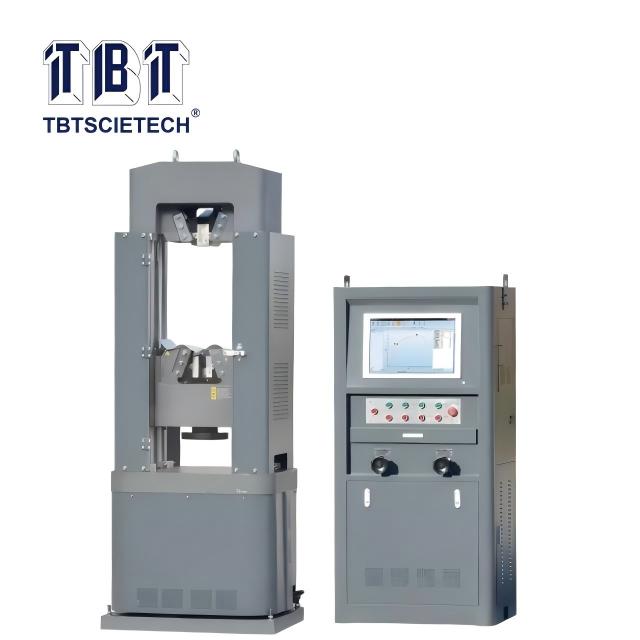

A. TBTUTM-ASI series PC display universal material testing machine adopt hydraulic power source, using test and control system on the test data acquisition and processing,
B. It consists of main unit, oil source (hydraulic power source), measurement and control systems, test equipment.
C. the maximum test force 100kN / 300kN / 600kN / 1000kN, Accuracy level better than 1 level.
D. It can meet the national requirements of metal tensile test in the standard test requirements, but also in accordance with other standards for different materials or products of the tensile, compression, bending, cutting, etc. Result including: tensile strength, yield strength and other performance;
E. It use the control valves to operate and control the oil flow;
A. TBTUTM-ASI series PC display universal material testing machine adopt hydraulic power source, using test and control system on the test data acquisition and processing,
B. It consists of main unit, oil source (hydraulic power source), measurement and control systems, test equipment.
C. the maximum test force 100kN / 300kN / 600kN / 1000kN, Accuracy level better than 1 level.
D. It can meet the national requirements of metal tensile test in the standard test requirements, but also in accordance with other standards for different materials or products of the tensile, compression, bending, cutting, etc. Result including: tensile strength, yield strength and other performance;
E. It use the control valves to operate and control the oil flow;
1. It is a 6 column, double space structure, stretching space between the upper beam and the lower beam, compression space between the lower beam and the test bench, the test space through the sprocket and lead screw rotating the lower beam to move up and down To adjust automatically. The upper and lower beams are equipped with hydraulically controlled clamping jaws. The standard models are equipped with V-shaped and flat jaws for tension testing cylindrical and flat specimens. The lower end of the standard cross-beam is equipped with On the pressure plate, test bench with a spherical structure with the pressure plate can conduct compression test.
2. It is designed to expand the possibility of fitting additional fixtures to accomplish more tests. Such as:
bolt installation fixture can be used to do the bolt stretching,
bending fixture can do round bar or plate bending test,
cutting fixture can do round bar shear strength test,
Also in the compression space with a flexure, shear, splitting, elastic modulus instrument can do concrete and cement block test.
3. It adopts industrial computer which save more space for those customers whose lab. has limited space.
1. It is a 6 column, double space structure, stretching space between the upper beam and the lower beam, compression space between the lower beam and the test bench, the test space through the sprocket and lead screw rotating the lower beam to move up and down To adjust automatically. The upper and lower beams are equipped with hydraulically controlled clamping jaws. The standard models are equipped with V-shaped and flat jaws for tension testing cylindrical and flat specimens. The lower end of the standard cross-beam is equipped with On the pressure plate, test bench with a spherical structure with the pressure plate can conduct compression test.
2. It is designed to expand the possibility of fitting additional fixtures to accomplish more tests. Such as:
bolt installation fixture can be used to do the bolt stretching,
bending fixture can do round bar or plate bending test,
cutting fixture can do round bar shear strength test,
Also in the compression space with a flexure, shear, splitting, elastic modulus instrument can do concrete and cement block test.
3. It adopts industrial computer which save more space for those customers whose lab. has limited space.
Model | TBTUTM-100ASI | TBTUTM-300ASI | TBTUTM-600ASI | TBTUTM-1000ASI |
Capacity | 100KN | 300KN | 600KN | 1000KN |
Accuracy degree | Grade 1 | |||
Distance between upper & lower platen | 500mm max. | 600mm max. | 600mm max. | 600mm max |
Tensile distance | 600mm max. | 700mm max. | 700mm max. | 700mm mx. |
Piston stoke | 200mm | 200mm | 200mm | 200mm |
Round specimen diameter | Φ6-Φ22mm | Φ10-Φ32mm | Φ13-Φ40mm | Φ14-Φ45mm |
Flat specimen diameter | 0-15mm | 0-20mm | 0-20mm | 0-40mm |
The max. Distance of bending test | 300mm | 300mm | 300mm | 300mm |
Load control | Manual | |||
Specimen clamping method | Hydraulic | |||
Dimension of host | 800*620*1850mm | 800*620*1870mm | 800*620*1900mm | 900*700*2250mm |
Dimension of control cabinet | around 800*600*1600mm | |||
Power supply | 380VAC/220VAC | 380VAC/220VAC | 380VAC/220VAC | 380VAC/220VAC |
Model | TBTUTM-100ASI | TBTUTM-300ASI | TBTUTM-600ASI | TBTUTM-1000ASI |
Capacity | 100KN | 300KN | 600KN | 1000KN |
Accuracy degree | Grade 1 | |||
Distance between upper & lower platen | 500mm max. | 600mm max. | 600mm max. | 600mm max |
Tensile distance | 600mm max. | 700mm max. | 700mm max. | 700mm mx. |
Piston stoke | 200mm | 200mm | 200mm | 200mm |
Round specimen diameter | Φ6-Φ22mm | Φ10-Φ32mm | Φ13-Φ40mm | Φ14-Φ45mm |
Flat specimen diameter | 0-15mm | 0-20mm | 0-20mm | 0-40mm |
The max. Distance of bending test | 300mm | 300mm | 300mm | 300mm |
Load control | Manual | |||
Specimen clamping method | Hydraulic | |||
Dimension of host | 800*620*1850mm | 800*620*1870mm | 800*620*1900mm | 900*700*2250mm |
Dimension of control cabinet | around 800*600*1600mm | |||
Power supply | 380VAC/220VAC | 380VAC/220VAC | 380VAC/220VAC | 380VAC/220VAC |
Packing list
A. Main unit
A-1. TBTUTM-ASI main unit with hydraulic clamp & high sealed oil cylinder
A-2. High accuracy stroke type load cell
A-3. Displacement sensor
A-4. Protecting fence
B. Standard cabinet
B-1. Oil tank system
B-2. Oil return valve, oil flow valve servo valve, SIMENS motor, zinc-plated fuel tank, low-pressure manual control box
C. Standard control system
C-1. 19” Industrial PC
C-2. Laser printer (YYU-10/100)
C-3. PC control testing software (English version)
C-4. Electronic extensometer
Packing list
A. Main unit
A-1. TBTUTM-ASI main unit with hydraulic clamp & high sealed oil cylinder
A-2. High accuracy stroke type load cell
A-3. Displacement sensor
A-4. Protecting fence
B. Standard cabinet
B-1. Oil tank system
B-2. Oil return valve, oil flow valve servo valve, SIMENS motor, zinc-plated fuel tank, low-pressure manual control box
C. Standard control system
C-1. 19” Industrial PC
C-2. Laser printer (YYU-10/100)
C-3. PC control testing software (English version)
C-4. Electronic extensometer
