TBTJKD-30
TBTSCIETECH
| Availability: | |
|---|---|

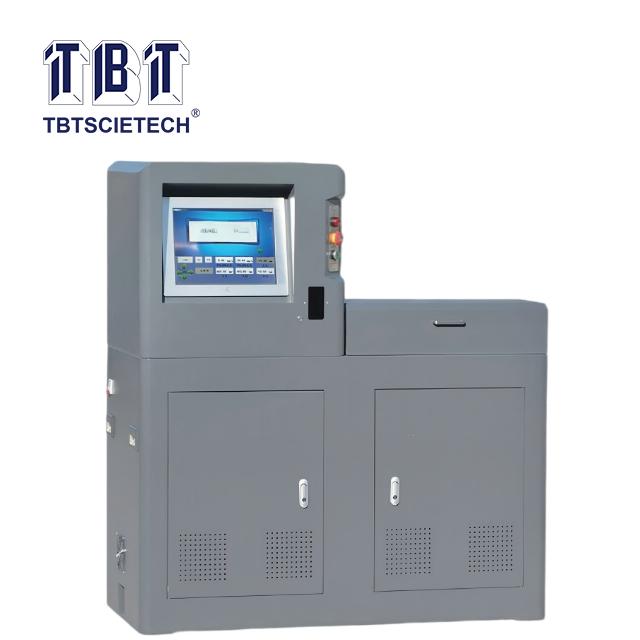

This automatic laser line-carving instrument is controlled by computer, coupled with High-precision laser carving device, can automatically make precise line-carving on steel bar before tensile test which make it more convenient to calculate the elongation after specimen break.
This automatic laser line-carving instrument is controlled by computer, coupled with High-precision laser carving device, can automatically make precise line-carving on steel bar before tensile test which make it more convenient to calculate the elongation after specimen break.
1. Equip with industrial PC(Touch screen/ 4 core/ 2.0CPU /IP65) for easy operation.
2. The specimens are sent to the laser head aiming by ball screw sliding to drive the sample plate move, then several steel bar can be carved precisely and simultaneously .
3. Automatic laser carving is convenient and safe.
4. Can operate in manual or automatic mode.
1. Equip with industrial PC(Touch screen/ 4 core/ 2.0CPU /IP65) for easy operation.
2. The specimens are sent to the laser head aiming by ball screw sliding to drive the sample plate move, then several steel bar can be carved precisely and simultaneously .
3. Automatic laser carving is convenient and safe.
4. Can operate in manual or automatic mode.
Specimen diameter range: | φ6-50mm |
Max. Quantity for specimen: | 9 pcs |
Laser power: | 30W |
Max. Gauge: | 600mm |
Carving speed | 30s |
Distance between gauge: | 5, 10mm adjustable |
Gauge accuracy | ±0.5% |
Dimension: | 1280×600x1410mm |
Weight: | 150kg |
Power supply | 220VAC 50HZ |
Specimen diameter range: | φ6-50mm |
Max. Quantity for specimen: | 9 pcs |
Laser power: | 30W |
Max. Gauge: | 600mm |
Carving speed | 30s |
Distance between gauge: | 5, 10mm adjustable |
Gauge accuracy | ±0.5% |
Dimension: | 1280×600x1410mm |
Weight: | 150kg |
Power supply | 220VAC 50HZ |
