TBTTLJW-1
TBTSCIETECH
| Availability: | |
|---|---|

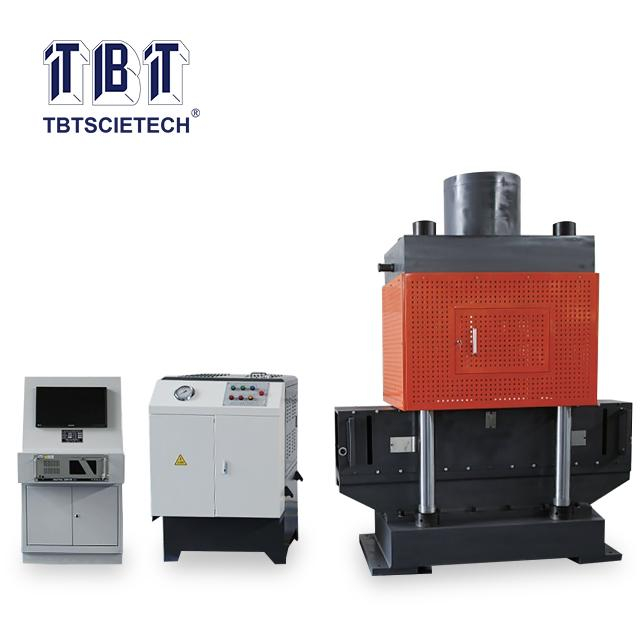

This machine is a four-pillar oil cylinder upper structure. The frame design has high rigidity and small deformation. The bending table adopts a lower structure. Multi-channel closed-loop coordinated loading electro-hydraulic servo control system. Coordinates hydraulic loading, continuous loading and stable, multi-stage test force maintenance, automatic continuous and smooth loading, automatic load retention, automatic collection and storage of data, storage, drawing curves, automatic printing of test reports, and computer control of test progress in a timely manner and display of test force And test curve, simple and reliable operation, easy to operate.
This machine is a four-pillar oil cylinder upper structure. The frame design has high rigidity and small deformation. The bending table adopts a lower structure. Multi-channel closed-loop coordinated loading electro-hydraulic servo control system. Coordinates hydraulic loading, continuous loading and stable, multi-stage test force maintenance, automatic continuous and smooth loading, automatic load retention, automatic collection and storage of data, storage, drawing curves, automatic printing of test reports, and computer control of test progress in a timely manner and display of test force And test curve, simple and reliable operation, easy to operate.
Model | TBTTLJW-1 |
Max. Capacity | 3000KN |
Measuring range | 2%~100% |
Measuring accuracy | +/-1% |
Displacement speed | 0~50mm/min. Under oil cylinder without load |
Max. Stroke | 300mm |
Displacement measuring accuracy | Better than +/-0.5%FS. |
Loading speed | 10~100KN |
Bending platform size | 300*1600mm |
Bending roller distance | 1000/1200 |
Bending head | Single head / dual head (head radius R300/R100) |
Safety shield size | 300*450*30mm |
Load cell | Installed at upper |
Constant speed loading capacity control range | 0.5KN/s~25KN/s(accuracy of 1%) |
Constant speed displacement control range | 0.5mm/min. ~30mm/min. |
Control method | Industrial PC, WGW1.0 professional software, 19inch screen, hydraulic loading, servo control, high precision load cell. |
Model | TBTTLJW-1 |
Max. Capacity | 3000KN |
Measuring range | 2%~100% |
Measuring accuracy | +/-1% |
Displacement speed | 0~50mm/min. Under oil cylinder without load |
Max. Stroke | 300mm |
Displacement measuring accuracy | Better than +/-0.5%FS. |
Loading speed | 10~100KN |
Bending platform size | 300*1600mm |
Bending roller distance | 1000/1200 |
Bending head | Single head / dual head (head radius R300/R100) |
Safety shield size | 300*450*30mm |
Load cell | Installed at upper |
Constant speed loading capacity control range | 0.5KN/s~25KN/s(accuracy of 1%) |
Constant speed displacement control range | 0.5mm/min. ~30mm/min. |
Control method | Industrial PC, WGW1.0 professional software, 19inch screen, hydraulic loading, servo control, high precision load cell. |
