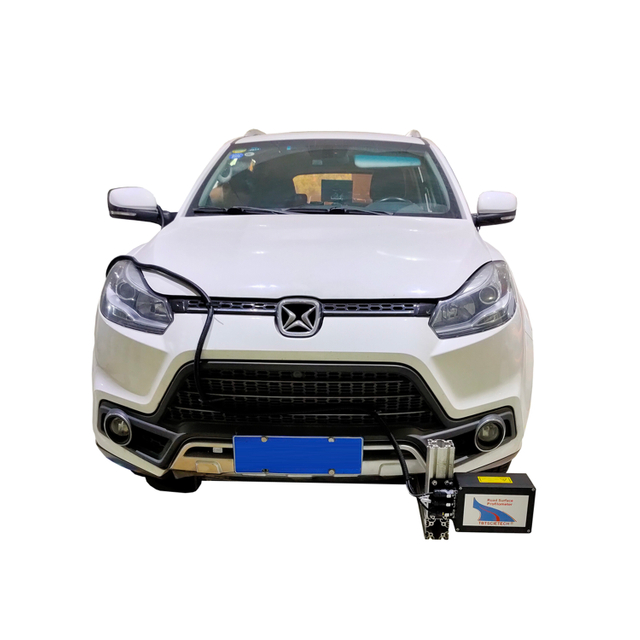

Monitoring Road Surface Profiler functional test on pavement is widely used for inspect the quality of highway, pavement, airport run way etc.
Monitoring Road Surface Profiler functional test on pavement is widely used for inspect the quality of highway, pavement, airport run way etc.
1. Real-time data collection for IRI, σ, RN, RQI, SMTD, RUT, speed etc.
2. Modular system which is easy for maintenance;
3. Real time graph display;
4. Accords to ASTM E950 Class 1 profiling;
5.Adopts imported accelerometer from USA Lance;
6. Testing at traffic speed enables faster measuring and saving time;
7. Adopts imported sensor from Republic of Belarus and USA;
1. Real-time data collection for IRI, σ, RN, RQI, SMTD, RUT, speed etc.
2. Modular system which is easy for maintenance;
3. Real time graph display;
4. Accords to ASTM E950 Class 1 profiling;
5.Adopts imported accelerometer from USA Lance;
6. Testing at traffic speed enables faster measuring and saving time;
7. Adopts imported sensor from Republic of Belarus and USA;
NO | Description | Specification | |
1 | Testing project | Pavement evenness, structure depth, wheel track. | |
2 | Laser(evenness/wheel track) | Riftek (from Republic of Belarus) | |
Evenness Laser model no. | RF603 125/500 | ||
Wheel track laser model no. | RF603 245/1000 | ||
frequency | 9.4kHz | ||
Ground clearance | 375/745mm | ||
Measuring range | ±250/500mm | ||
resolution | ＜0.05mm | ||
Protection level | IP 67 | ||
accuracy | ＜0.5mm | ||
3 | Structure depth laser | Acuity | (from USA) |
Laser model | AR700-8RP | ||
Ground clearance | 300mm | ||
Measuring range | ±100mm | ||
resolution | 0.01mm | ||
Protection level | IP 67 | ||
Linearity | ±0.03% | F.S. | |
4 | Communication | Ethernet interface | |
5 | Acceleration sensor | Lance (from USA) | |
Measuring range | ±3g | ||
resolution | 0.00002g | ||
frequency | 0.7～2000Hz | ||
6 | Distance sensor | OMRON (from Japan) | |
Pulse count | 2000pulse/turn | ||
Protection level | IP67 | ||
Measuring accuracy | ±0.5m/km | ||
7 | Sampling interval | ≥1mm | |
8 | Vertical section testing accuracy | ＜0.5mm | |
9 | Vertical section wavelength | 1mm～200m | |
10 | IRI range | 0～20m/km | |
11 | IRI resolution | 0.1m/km | |
12 | SMTD resolution | 0.01mm | |
13 | SMTD accuracy | 0.05mm | |
14 | Wheel track testing range | 0～200mm | |
15 | Wheel track testing resolution | 0.1mm | |
16 | Cross section lane width | 3500mm | |
17 | Size | Basic part: 1.6m | |
Removable part: 164mm | |||
18 | Testing speed | ||
IRI | 30～80km/h | ||
SMTD | 30～70km/h | ||
Wheel track | 30～80km/h | ||
NO | Description | Specification | |
1 | Testing project | Pavement evenness, structure depth, wheel track. | |
2 | Laser(evenness/wheel track) | Riftek (from Republic of Belarus) | |
Evenness Laser model no. | RF603 125/500 | ||
Wheel track laser model no. | RF603 245/1000 | ||
frequency | 9.4kHz | ||
Ground clearance | 375/745mm | ||
Measuring range | ±250/500mm | ||
resolution | ＜0.05mm | ||
Protection level | IP 67 | ||
accuracy | ＜0.5mm | ||
3 | Structure depth laser | Acuity | (from USA) |
Laser model | AR700-8RP | ||
Ground clearance | 300mm | ||
Measuring range | ±100mm | ||
resolution | 0.01mm | ||
Protection level | IP 67 | ||
Linearity | ±0.03% | F.S. | |
4 | Communication | Ethernet interface | |
5 | Acceleration sensor | Lance (from USA) | |
Measuring range | ±3g | ||
resolution | 0.00002g | ||
frequency | 0.7～2000Hz | ||
6 | Distance sensor | OMRON (from Japan) | |
Pulse count | 2000pulse/turn | ||
Protection level | IP67 | ||
Measuring accuracy | ±0.5m/km | ||
7 | Sampling interval | ≥1mm | |
8 | Vertical section testing accuracy | ＜0.5mm | |
9 | Vertical section wavelength | 1mm～200m | |
10 | IRI range | 0～20m/km | |
11 | IRI resolution | 0.1m/km | |
12 | SMTD resolution | 0.01mm | |
13 | SMTD accuracy | 0.05mm | |
14 | Wheel track testing range | 0～200mm | |
15 | Wheel track testing resolution | 0.1mm | |
16 | Cross section lane width | 3500mm | |
17 | Size | Basic part: 1.6m | |
Removable part: 164mm | |||
18 | Testing speed | ||
IRI | 30～80km/h | ||
SMTD | 30～70km/h | ||
Wheel track | 30～80km/h | ||
No. | Name | Unit | Qty |
1 | Road Surface Profilometer
(Testing System For Pavement Quality) | Set | 1 |
2 | Manual book | Piece | 1 |
No. | Name | Unit | Qty |
1 | Road Surface Profilometer
(Testing System For Pavement Quality) | Set | 1 |
2 | Manual book | Piece | 1 |
