TBTCFT-1
TBTSCIETECH
| Availability: | |
|---|---|
TBTCFT-1 is used to measure friction characteristics on road surfaces, airport runways under self-wetted condition, in order to ensure the pavement safety, especially for landing aircraft;

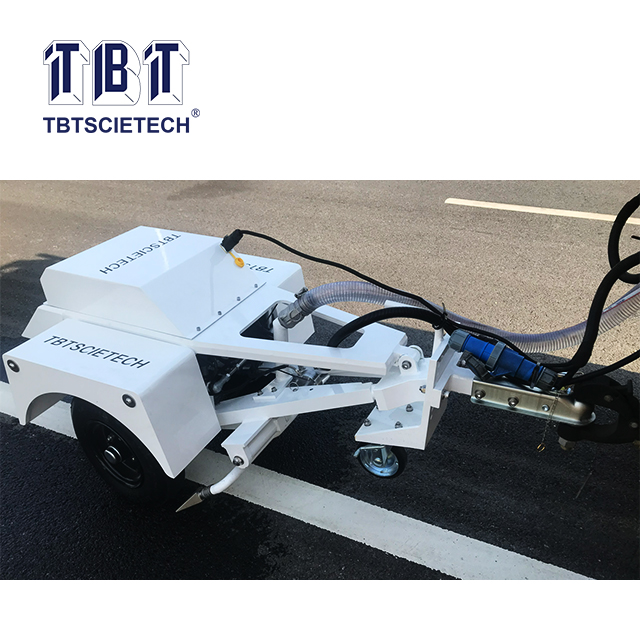

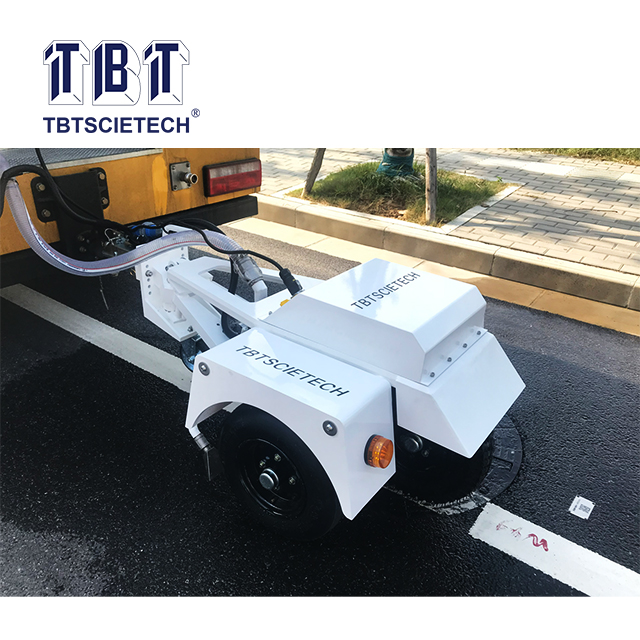

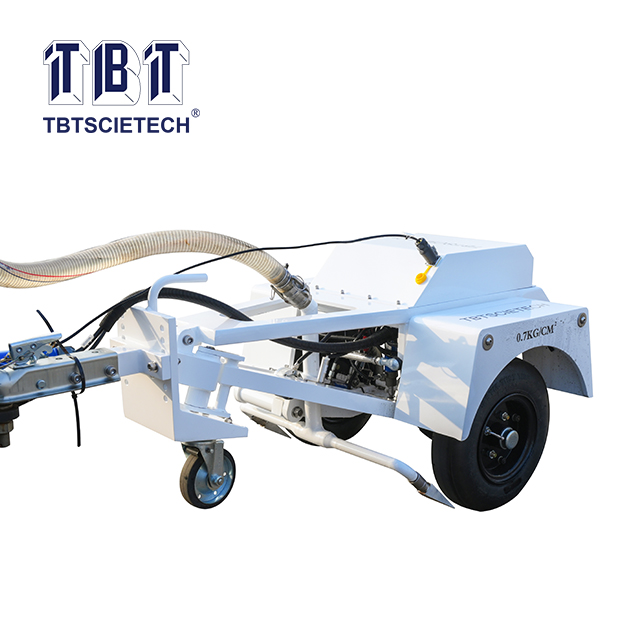

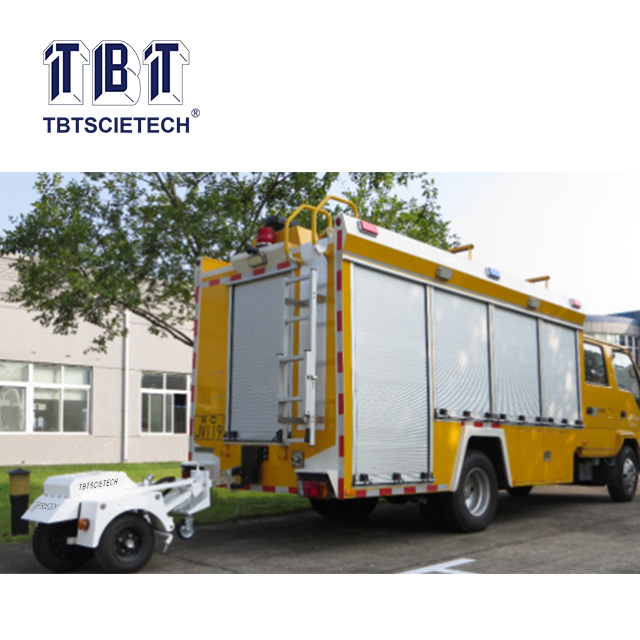

TBTCFT-1 is trailer mounted type which connected with a water spray vehicle to perform the testing.
Machine adopts transducer to measure the load and force, with DMI sensor to record the distance, with temperature sensor to record the pavement surface temperature.
TBTCFT-1 is used to measure friction characteristics on road surfaces, airport runways under self-wetted condition, in order to ensure the pavement safety, especially for landing aircraft;
TBTCFT-1 is trailer mounted type which connected with a water spray vehicle to perform the testing.
Machine adopts transducer to measure the load and force, with DMI sensor to record the distance, with temperature sensor to record the pavement surface temperature.
ASTM E670, AASHTO T268, ASTM E1551
ASTM E670, AASHTO T268, ASTM E1551
Trailer size | L: 1553mm W: 960mm H: 570mm |
Trailer connector height | 350 ±12mm |
Trailer weight | Around 254kg (include weight, but without the support wheel) |
Weight distribute | Left wheel--at calibrated height position 77.5±1kg |
Weight distribute | Right wheel--at calibrated height position 77.5±1kg |
Testing wheel adjustment | Double wheel adjustment; Left/right Wheel 7.5° each wheel |
Rear wheel | 53.5kg |
Testing tyre (specially for friction coefficient test) | ASTM E1551 |
Testing wheel for distance | Standard tyre |
Tyre pressure | Testing wheel for friction coefficient: 0.7±0.035kg/cm2 Testing wheel for distance: 2.1±0.137kg/cm2 |
Speed | 0~100km/h |
Testing speed for international airport | 65km/h & 96km/h |
Testing speed for China standard pavement | 50km/h |
Working voltage | 9-36V DC(12V & 24V vehicle power can be used) |
Electronic components | Internet interface, laptop |
Friction coefficient testing accuracy | Average value ±0.01 (each pavement length for each not less than 15m) |
Distance testing accuracy | ±0.1%(plus tyre abrasion) |
Temperature measurement | Pavement surface temperature sensor |
Testing accuracy | ±1% |
Software | English version or customized language |
Trailer size | L: 1553mm W: 960mm H: 570mm |
Trailer connector height | 350 ±12mm |
Trailer weight | Around 254kg (include weight, but without the support wheel) |
Weight distribute | Left wheel--at calibrated height position 77.5±1kg |
Weight distribute | Right wheel--at calibrated height position 77.5±1kg |
Testing wheel adjustment | Double wheel adjustment; Left/right Wheel 7.5° each wheel |
Rear wheel | 53.5kg |
Testing tyre (specially for friction coefficient test) | ASTM E1551 |
Testing wheel for distance | Standard tyre |
Tyre pressure | Testing wheel for friction coefficient: 0.7±0.035kg/cm2 Testing wheel for distance: 2.1±0.137kg/cm2 |
Speed | 0~100km/h |
Testing speed for international airport | 65km/h & 96km/h |
Testing speed for China standard pavement | 50km/h |
Working voltage | 9-36V DC(12V & 24V vehicle power can be used) |
Electronic components | Internet interface, laptop |
Friction coefficient testing accuracy | Average value ±0.01 (each pavement length for each not less than 15m) |
Distance testing accuracy | ±0.1%(plus tyre abrasion) |
Temperature measurement | Pavement surface temperature sensor |
Testing accuracy | ±1% |
Software | English version or customized language |
1. Trailer frame
2. Control & processing system
3. Testing tyre
4. Wetting system
5. Laptop with software
1. Trailer frame
2. Control & processing system
3. Testing tyre
4. Wetting system
5. Laptop with software
