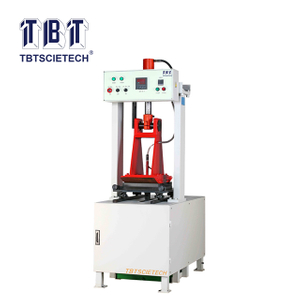

Electric Marshall Compactor Suitable for Dual Mold

Share to:

TBT-0702A-1 is designed and made as per industrial standard JTG E20-2011 and ASTM D6926 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering.

  • TBTEMC-1B
  • TBTSCIETECH

It is composed of both mechanical drive and control instrument,the mechanical drive includes motor, reducer and chain drive.It has the single chip microcomputer as the control core and 4.3 inch color touch screen,real-time clock,environment temperature detecting and displaying.




1. The instrument adopts the new advanced electroplating process,metal yogon,high hardness,good abrasion resistance.

2.With the electric control method to realize the automatic lifting of heavy hammer,self-locking,the start button - raise automatically,automatic stop,automatic reset,It will decrease the operators’ working strength and simplify the work procedure.

3.The instrument with dual use function,it can be used  in both Φ101.6mm×63.5mm cylinder mold AND Φ152.4mm×95.3mm big cylinder mold.

4.Tthe electric control adopts the large color touch screen technology,and has the key control to realize the double insurance.It’s convenient operation and high accuracy control.

5.mold accurate positioning,dead locking structure of compaction test mold,safe reliability of instrument operation.

6.Preset the compaction times to realize the automatic compaction technology.It’s convenient to debug and do self-inspection.

7.With the automatic emergency stop button,it can stop at any time and any condition by pressing the button.


1. Hammer 1

  4536g±9g(Φ101.6mm×63.5mm mold)

2. Hammer 2

  10210g±10g(Φ152.4mm×95.3mm mold)

3. Fall of Hammer

  457mm±1.5mm;

4. Compaction speed

  (60±5)times/min

5. Compaction times

  (0~999)times

6. Wooden compaction pedestal

  457mm×200mm×200mm

7. Concrete compaction pedestal

  120mm×460mm×480mm

8.Lifting motor power

0.01KW

9.Color touch screen

480x270 mm

10.Power supply

  AC(220±10%)V,50Hz

11.Motor power

  370W

12.Work environment

temperature -10℃~35℃,relative humidity ≤85%

13.Outline dimension

  1950mm×540mm×540mm

13.Net weight

  About 180kg


No.

Name

Unit

Qty

Memo

1

TBTMJS-0702A-1 Marshall Electric Compactor

Set

1


2

“TBTMJS-0702A-1 Marshall Electric Compactor”Controller

Set

1


3

Big test mode(Φ152.4㎜)

Piece

6


4

Big test mode pressing sleeve

Piece

1


5

Small test mode(Φ101.6㎜)

Piece

6


6

Small test mode pressing sleeve

Piece

1


7

Big test mode seat

Piece

1


8

Small test mode seat

Piece

1


9

Heavy hammer 1(10210g±10g)

One of them installed on machine

Piece

1


10

Heavy hammer 2(4536g±9g)

Piece

1


11

Power line(250V/6A)

Piece

1


12

The  connecting line of  main engine and controller

Piece

1


13

Stripper

Piece

1

Optional

14

Operation manual

Piece

1


15

Quality certificate

Piece

1


16

Repair guarantee

Piece

1




II,TBTMJS-0702A-1 Marshall Electric Compactor's Reagent and Auxiliary Equipments

No.

Name

Specification

Quantity

Memo

1

Balance

Accuracy 0.1g

1 set


2

Rubberized fabric


1 box


3

Caliper


1 piece


4

Petroleum solution

2L

2L/bucket

Trichloro ethylene,kerosene,gasoline,choose any one is okay

5

Second chronograph


1 piece


 6

Chalk


1 box


 7

Cotton yarn


1 roll


Butter


200ml




Notes:
1,The reagent and equipment for installing the instrument are supplied by end-users themselves.
2,The usage,management and saving of poisonous and harmful reagent,pls operate according to the relative principle.
3,PLS read the operation manual and industry standard before using the instrument.
