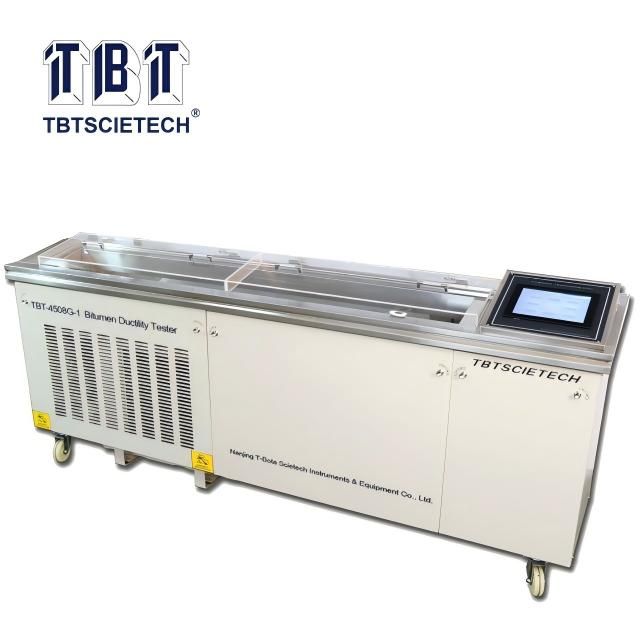

Automatic Bitumen Ductility Machine

Share to:

It is used to determine the length at which the bitumen specimen is elongated before breaking at fixed speed and temperature.

  • TBT-4508G
  • TBTSCIETECH

TBT-4508G is designed & made as per national standard GB/T 4508-2010 Standard Test Method for Ductility of Bitumen, T0602-2011 Asphalt Ductility Test in JTG E20-2011 in the Industrial Standard of China JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering and ASTM D113 Standard Test Method for Ductility of Bituminous Materials.


1. It adopts Human-comfort design. There is no screw & guiding rail or other components in test tank. Maximum measurement length is 1.5m. By innovative transmission design, the 2-way stretching is stable, synchronous, speed-uniform without any tremble.

2. The ductilometer can test ductility for 3 specimens and traction force for 2 specimens simultaneously.

3. By communication with PC, specimen is positioned automatically, and ductility can be tested remotely.

4. LCD touch screen shows temperature, ductility, traction force clearly.

5. A micro-printer can print test results showing Ductility, average value, maximum traction force and changing curves.

6. Specimen can return and be positioned automatically after test.


1. Power:

AC(220±10%)V, 50Hz

2. Measurement length:

 1.5m(±10mm)

3. Heating power:

 4500W

4. Temperature control:

Range:(5~35)℃, accuracy: ±0.1℃

5. Traction speed:

(10~50)mm/min, stepless adjustment. accuracy:±1mm

6. Traction force:

Range:(0~300)N, accuracy:±1N, resolution: 0.1N

7. Data output:

(1)Communication port RS232


(2)Printed by micro-printer

8. Refrigeration:

Compressor 1.0P, input power is 800W

9. Working temperature:

(-10~+35)℃。

10.Relative humidity:

≤85%

11.Maximum power consumption:

5600W

12.Overall dimension:

 2365mm×530mm×1000mm




I,TBT-4508G Bitumen Ductility Machine Accessories and Documents List

No.

  Name

Unit

Qty

Memo

1

TBT-4508G Bitumen Ductility Machine

Set

1


2

Ductility mould base

Pair

3

In same box

3

Ductility test module

Pair

3

4

Bitumen elastic recovery(force-ductility)sample mould base

Pair

3

In same box

5

Bitumen elastic recovery(force-ductility)sample module

Pair

3

6

Rod type thermometer

(0~50℃,scale division 0.1 ℃)

Piece

1


7

Socket(250V32A three core)

Piece

1

With bottom box

8

Fuse RL1-60/40A

Piece

4


9

Wireless remote ductility recorder(remote controller)

Piece

1


10

Remote controller battery(23A/12V)

Piece

1

Reserve

11

Test module plate

Piece

1


12

Touch pen

Piece

2

One pen as reserve

13

Operation manual

Piece

1


14

Quality certificate

Piece

1


15

Product Warranty Card

Piece

1


16

Software CD

Piece

1




II,TBT-4508G Bitumen Ductility Machine's Reagent and Auxiliary Equipments

No.

Name

Specification

Quantity

Memo

1

Glycerol

500ml

1 bottle


2

Bitumen solvent

2L

2L/bucket

Kerosene

3

Talcum powder


500 g


4

Scraper


1 piece


5

Hairbrush

2cm width

2 pieces


6

Electric furnace

1000W

1 piece



Notes:
1,The reagent and equipments for installing the instrument are supplied by end-users themselves.
2,The usage,management and saving of poisonous and harmful reagent,pls operate according to the relative principle.
3,PLS read the operation manual and industry standard before using the instrument.
