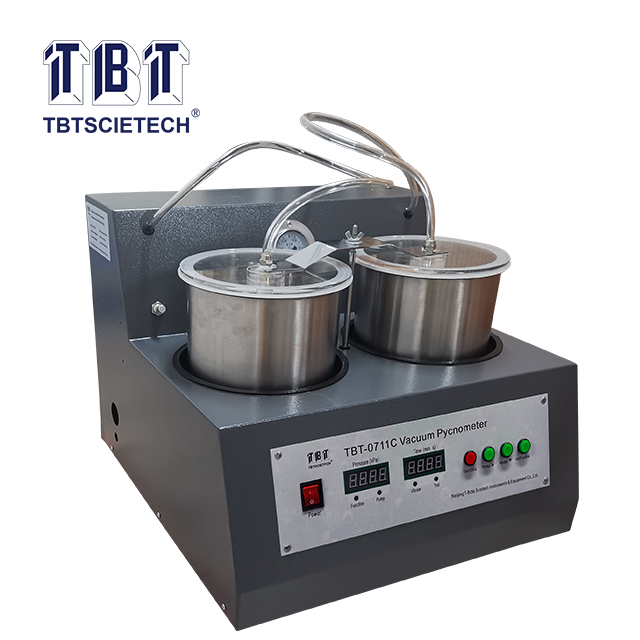

Vacuum Pycnometer
Vacuum Pycnometer Vacuum Pycnometer

loading

Vacuum Pycnometer

Share to:
sharethis sharing button
TBT-0711C is made as per T 0711-2011 and ASTM D2041 Standard Test Method for Theoretical Maximum Specific Gravity of Bituminous Mixtures(Vacuum process).
  • TBT-0711C

  • TBTSCIETECH

Availability:

TBT-0711C is made as per T 0711-2011 and ASTM D2041 Standard Test Method for Theoretical Maximum Specific Gravity of Bituminous Mixtures(Vacuum process).

It is used to determine the theoretical maximum specific gravity of bituminous mixtures by vacuum process, also used to design the ratio of bituminous mixtures, survey the road condition or calculate the void ratio and compactness of road construction.

But it cannot determine the lacunose bituminous mixtures which water absorption overs 3%.


ASTM D2041


1. Equipped with a high-accuracy absolute pressure sensor, the negative pressure can reach 3.7 kPa±0.3 kPa;

2. Can determine two samples at the same time with high efficiency.


Power supply

220VAC, 50HZ

Negative pressure container

4000ml×2pcs

Negative pressure in container during test

3.7 kPa±0.3 kPa

Vacuum pump type

Oil-free vacuum pump 180W

Vibration motor power

30W

Rated power

300W

Dimension

Around 510mm×520mm×380mm
