TBTCPT-25F
TBTSCIETECH
| Availability: | |
|---|---|

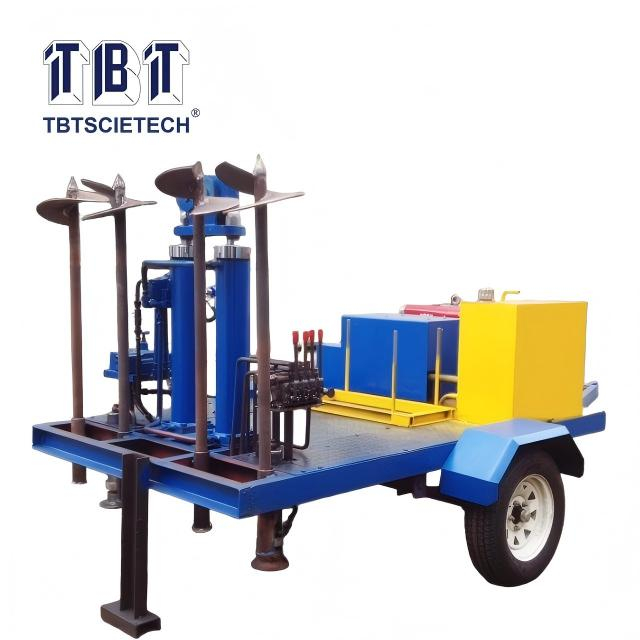

TBT 2Y-25F CPT Trailer is with probe rigs mounted on haul trailer, which can be towed easily by a 4-wheeldrive car, can be used in almost any terrain, provides the same high penetration force as CPT truck, but at significantly lower capital cost, penetration capacities is up to 250kN.
The probe rigs are pushed into the ground at a constant speed and the mechanical resistance & friction parameters of the soil are recorded, it’s used for determination the bearing capacity of foundation.
It is workable in soft soil, cohesive soil, old clay, loess and sandy soil.
If equipped with additional accessories, it can perform further more in-situ testings such as DMT, CPTU, MPT, WVT, VCT.
TBT 2Y-25F CPT Trailer is with probe rigs mounted on haul trailer, which can be towed easily by a 4-wheeldrive car, can be used in almost any terrain, provides the same high penetration force as CPT truck, but at significantly lower capital cost, penetration capacities is up to 250kN.
The probe rigs are pushed into the ground at a constant speed and the mechanical resistance & friction parameters of the soil are recorded, it’s used for determination the bearing capacity of foundation.
It is workable in soft soil, cohesive soil, old clay, loess and sandy soil.
If equipped with additional accessories, it can perform further more in-situ testings such as DMT, CPTU, MPT, WVT, VCT.
The self-propelled CPT truck carries it’s own ballast weight, whereas operations with the lighter trailer require extra time to set soil anchors to provide the required reaction force. The trailer is suitable for locations that are difficult to access with heavy units such as truck.
The self-propelled CPT truck carries it’s own ballast weight, whereas operations with the lighter trailer require extra time to set soil anchors to provide the required reaction force. The trailer is suitable for locations that are difficult to access with heavy units such as truck.
Rated penetration force: | 250KN |
Pulling force: | 300KN |
Penetration speed : | 1.2m/min |
Pulling speed: | 3-4m/min |
Power source | 1100 diesel engine |
sounding tube diameter: | 36 mm |
Probe taper: | 60 |
Probe area: | 10cm2 |
Ground anchor depth: | 1.5m |
Anchor blade diameter: | 300mm |
Penetration mode: | automatic clamp & press |
Pulling mode: | automatic clamp & pull |
Data collection: | automatic collected by CPT computer |
Dimensions: | 2.8x1.5x1.7m |
Rated penetration force: | 250KN |
Pulling force: | 300KN |
Penetration speed : | 1.2m/min |
Pulling speed: | 3-4m/min |
Power source | 1100 diesel engine |
sounding tube diameter: | 36 mm |
Probe taper: | 60 |
Probe area: | 10cm2 |
Ground anchor depth: | 1.5m |
Anchor blade diameter: | 300mm |
Penetration mode: | automatic clamp & press |
Pulling mode: | automatic clamp & pull |
Data collection: | automatic collected by CPT computer |
Dimensions: | 2.8x1.5x1.7m |
