TBTYH-LWP
TBTSCIETECH
| Availability: | |
|---|---|

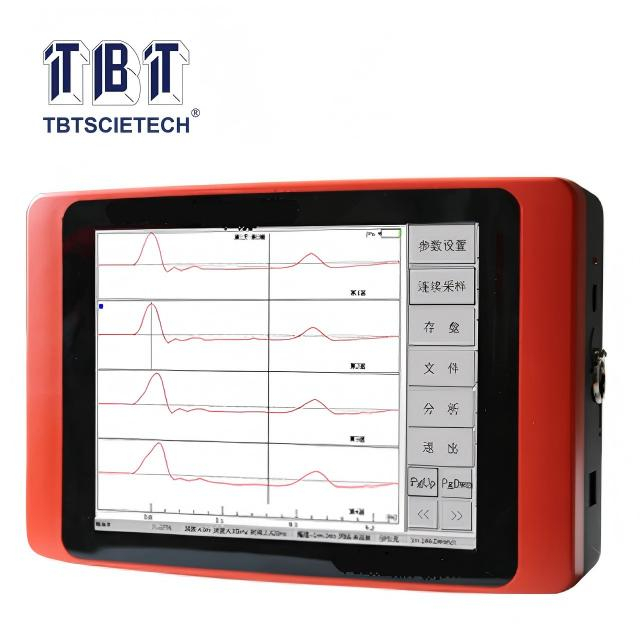

Low-Strain Dynamic Tester for Foundation Piles (PIT-Pile Integrity Tester) is mainly used in low strain (transient) pile
testing and shear wave measurement.
Low-Strain Dynamic Tester for Foundation Piles (PIT-Pile Integrity Tester) is mainly used in low strain (transient) pile
testing and shear wave measurement.
Main features:
1.High integration,high reliability and low noise.
2. Windows operating system, 8.4-inch high brightness LCD screen, full touch operation.
3. SD card U disk can be transferred to storage directly , and about 250000 piles data can be stored in the machine to realize massive data storage.
4. Automatic equalization for analog quantity. Eliminate signal drift.

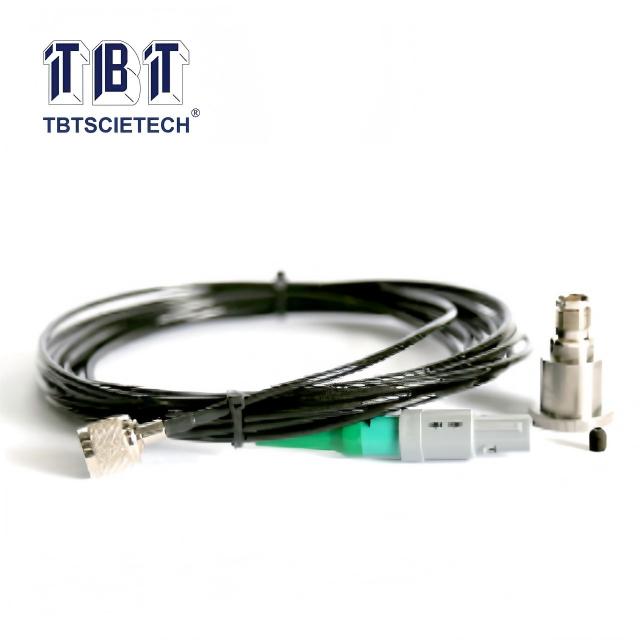

5.Equipped with accelerometer and velocity detector at the same time.
6. Automatically realize the functions of continuous acquisition, superposition and balance adjustment.
7. Multi time base function, while ensuring the accuracy of time domain and frequency domain analysis.
8. AC / DC dual-purpose, DC power supply can work for more than 8 hours.
9. Online upgrade of main control program.
Main features:
1.High integration,high reliability and low noise.
2. Windows operating system, 8.4-inch high brightness LCD screen, full touch operation.
3. SD card U disk can be transferred to storage directly , and about 250000 piles data can be stored in the machine to realize massive data storage.
4. Automatic equalization for analog quantity. Eliminate signal drift.
5.Equipped with accelerometer and velocity detector at the same time.
6. Automatically realize the functions of continuous acquisition, superposition and balance adjustment.
7. Multi time base function, while ensuring the accuracy of time domain and frequency domain analysis.
8. AC / DC dual-purpose, DC power supply can work for more than 8 hours.
9. Online upgrade of main control program.
System | WINCE operating system;ARM920T core |
Display mode: | 24 bit standard true color, 800x600 resolution, 8.4-inch TFT standard LCD |
Input interface: | Standard touch screen input, USB mouse. |
Storage mode: | SD card and electronic disk. The minimum number of stored files is 500000. |
Transfer storage mode: | Transfer storage through USB through external interface. Support hot plug of USB flash disk. |
Sampling length | 1K,2K,4K,8K |
Trigger mode | Channel trigger,External trigger,steady state trigger |
Sampling interval | 5-32767 μ S continuously adjustable. |
Sampling resolution | 16bits AD |
Built-in battery | 12V15.5Ah ,rechargeable li-battery working for more than 7 consecutive hours |
External power supply | DC15V4A charger |
Operating temperature | -10 ℃ to 50 ℃ |
Amplification factor | X4,X1,X10,X100,X1000 |
Volume and weight | 230 x 170 x58 ( mm ) , 2.1Kg。 |
System | WINCE operating system;ARM920T core |
Display mode: | 24 bit standard true color, 800x600 resolution, 8.4-inch TFT standard LCD |
Input interface: | Standard touch screen input, USB mouse. |
Storage mode: | SD card and electronic disk. The minimum number of stored files is 500000. |
Transfer storage mode: | Transfer storage through USB through external interface. Support hot plug of USB flash disk. |
Sampling length | 1K,2K,4K,8K |
Trigger mode | Channel trigger,External trigger,steady state trigger |
Sampling interval | 5-32767 μ S continuously adjustable. |
Sampling resolution | 16bits AD |
Built-in battery | 12V15.5Ah ,rechargeable li-battery working for more than 7 consecutive hours |
External power supply | DC15V4A charger |
Operating temperature | -10 ℃ to 50 ℃ |
Amplification factor | X4,X1,X10,X100,X1000 |
Volume and weight | 230 x 170 x58 ( mm ) , 2.1Kg。 |
