TBT-0623W
| Availability: | |
|---|---|
Description

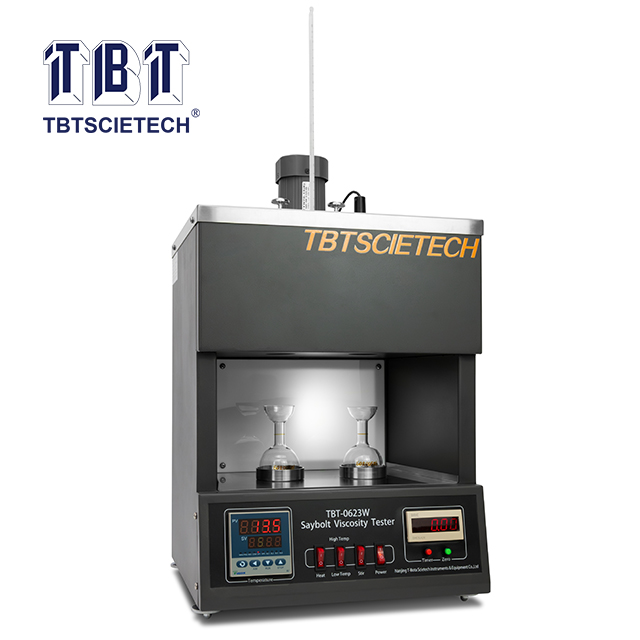

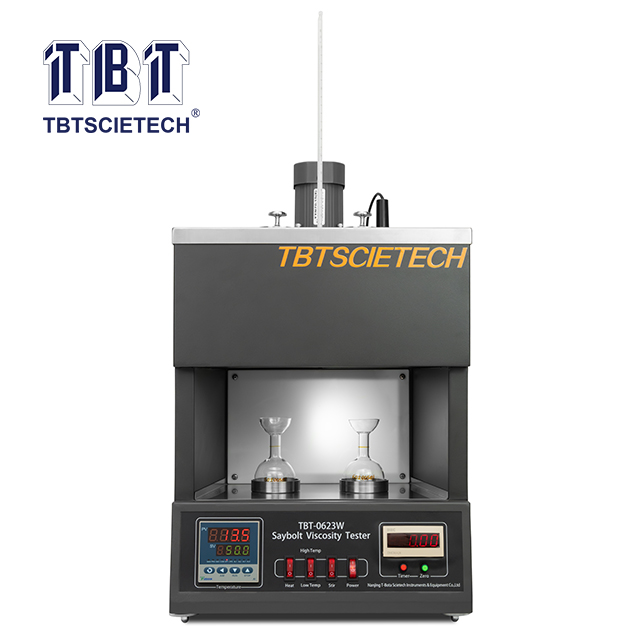

TBT-0623W Saybolt viscometer is designed as per ASTM D88 Bitumen Saybolt Viscosity Test (Saybolt Viscometer Method). It is suitable to determine the Saybolt viscosity of bitumen and bituminous mixtures.
Referring Standard
ASTM D88
Features
1. Digital temperature controller with calibration function can provide high accurate temperature control;
2. It has selectable fast and slow heating modes;
3. The timer is convenient to be used and has automatic reset function;
4. The constant temperature bath stirring system is driven by a continuously operating motor;
5. It can test two sample tubes simultaneously.
Specification
Working mode | Double lines, parallel test |
Receiving flask | 60±0.05ml |
Heating power of bath | 600W |
Working temperature of bath | Room temp. ~ 240.0℃ |
Temperature control accuracy | ±0.1℃ |
Timing accuracy | ±0.1s |
Ambient temperature | 5~35℃ |
Relative humidity | ≤80%RH |
Size | Around 360×360×790mm |
Power supply | 220V, 50Hz |
Standard Configuration
No. | Name | Unit | Quantity |
1 | Main unit | set | 1 |
2 | Sample receiving flask | piece | 2 |
3 | Stopper handle | piece | 2 |
4 | Stopper | piece | 10 |
5 | Mercury thermometer 0~50℃, scale division is 0.1℃ | piece | 1 |
6 | Mercury thermometer 0~300℃, scale division is 1℃ | piece | 1 |
7 | Stopper for glass thermometer (silicon gel stopper 8 #) | piece | 1 |
8 | Stopping ring for thermometer (1#) | piece | 4 |
