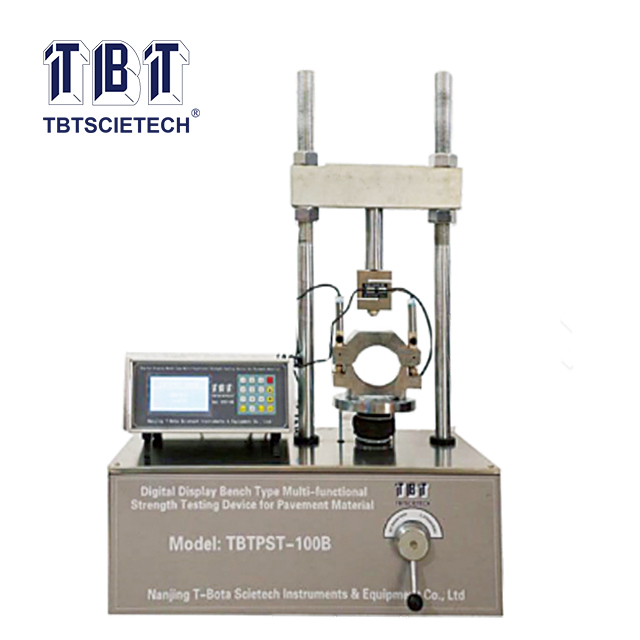

TBTPST-100B
TBTSCIETECH
| Availability: | |
|---|---|
Through the English menu on the LCD screen, the test process of the whole test piece can be automatically processed to form a complete test file for archiving and Print a test report. The operation is simple, the test data is accurate, and the performance is stable and reliable. Equipped with standard R232 data interface, it can be connected with external printer or computer. It is the ideal pavement material strength test equipment for each test unit.
Through the English menu on the LCD screen, the test process of the whole test piece can be automatically processed to form a complete test file for archiving and Print a test report. The operation is simple, the test data is accurate, and the performance is stable and reliable. Equipped with standard R232 data interface, it can be connected with external printer or computer. It is the ideal pavement material strength test equipment for each test unit.
The intelligent controller display can show stability & flow value, it also adopts interface to connect with PC which help connecting with laptop or desktop computer, and can show curve, save the file and print test reports.
The intelligent controller display can show stability & flow value, it also adopts interface to connect with PC which help connecting with laptop or desktop computer, and can show curve, save the file and print test reports.
Max. Capacity | 100KN |
pressure sensor measurement range | 5-100KN Accuracy: ≤1％ |
Double Displacement load cell measuring range | 0 — 15mm Accuracy: ≤1％ |
Penetration rod diameter | ¢50mm±0.05mm. 100mm long |
allow the maximum size of the mixture | ≯40mm |
Power supply | working voltage: Main unit AC220V 50Hz Controller AC220V 50Hz |
Environment temperature | 0℃ — 60℃ |
Test press rising speed | 1.27mm/min and 50.8mm/min two speed |
PC interface | DB9 232 |
Max. Capacity | 100KN |
pressure sensor measurement range | 5-100KN Accuracy: ≤1％ |
Double Displacement load cell measuring range | 0 — 15mm Accuracy: ≤1％ |
Penetration rod diameter | ¢50mm±0.05mm. 100mm long |
allow the maximum size of the mixture | ≯40mm |
Power supply | working voltage: Main unit AC220V 50Hz Controller AC220V 50Hz |
Environment temperature | 0℃ — 60℃ |
Test press rising speed | 1.27mm/min and 50.8mm/min two speed |
PC interface | DB9 232 |
Item | Q’ty |
Main unit | 1pc |
pressure sensor | 1pc |
Double Displacement load cell | 1pc |
PC interface | DB1pc |
Controller | 1pc |
Item | Q’ty |
Main unit | 1pc |
pressure sensor | 1pc |
Double Displacement load cell | 1pc |
PC interface | DB1pc |
Controller | 1pc |
