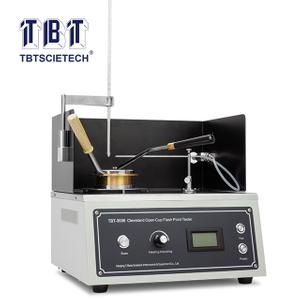

Cleveland Open Cup Flash Point Tester LCD display

Share to:

This instrument is designed and made as per standards GB/T3536-2008 Petroleum Products - Determination of Flash and Fire Points - Cleveland Open Cup Method and ASTM D 92 Standard Test Method for Flash and Fire Points by Cleveland Open Cup Tester.

  • TBT-3536-1
  • TBTSCIETECH

1. It adopts technology of single chip microcomputer and LCD screen. English man-machine interface.The heating device is continuously adjustable.Easy to set parameters.
2. The LCD screen has prompt menu, prompt type input for operation interface. It shows set parameters and real-time display sample temperature and other parameters. Press the record key when flash point appearing. The screen will display and save flash point value.
3. It is newly design and small structure. Stainless steel working table make it elegant and beautiful. The operator can do determination as long as connecting with coal gas or other civil gas. Easy to use and results are exact.
4. It is equipped with wind-shelter and flame extinguishing cover which are accord with requirements of test.
Accurate heating rate.The instrument can do test automatically.
5. Operator only need to observe the flash point appearing. The cost performance is high.


Power supply:

220VAC 50HZ

Heating device

Quartz tube furnace heating, no naked fire, explosion prevented. The power is adjustable from 0W to 600W.

Test flame applicator

It applies the test flame automatically.

Thermometer:

(-6~400)℃. It is the same as thermometer ASTM 11C.

Igniting device

(1) Ignition source: coal gas(or civil gas)

(2) Flame diameter is 3.2mm~4.8mm

Display

LCD display

Relative humidity

≤85%

Maximum power consumption

650W

Dimension

350mm×290mm×350mm (thermometer is not included)


No.

Name

Unit

Qty

Remark

1

Main unit

Set

1


2

Cleveland oil cup

Piece

1

We can provide more if you required.

3

Ignition device

Set

1


4

Thermometer

Piece

1

-6℃~400 ℃, scale division is 2 ℃

5

Thermometer holder

Set

1


6

Fuse 5 A (Φ5×20)

Piece

2


7

Latex tube Φ6

Meter

1.5

Could not be used as coal gas tube

8

Joint for coal gas tube

Piece

1

Connect coal gas tube and latex tube

9

Extinguishing cover

Piece

1
