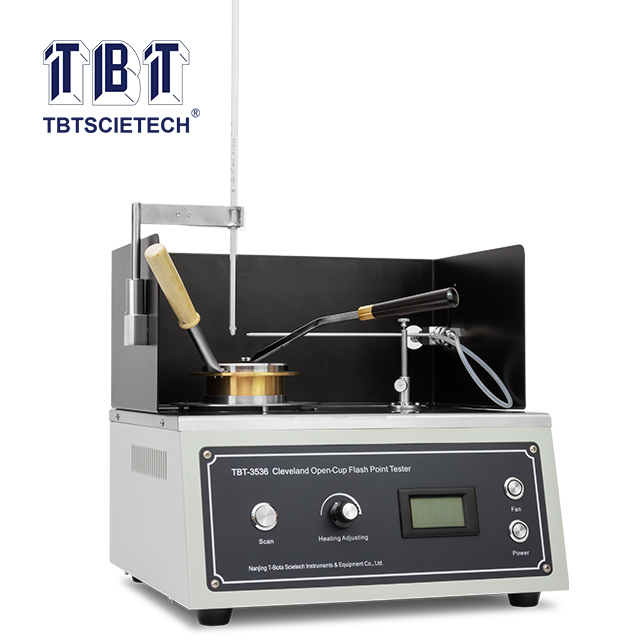

Cleveland Open Cup Flash Point Tester

Share to:

This instrument is designed and made as per standards GB/T3536-2008 Petroleum Products - Determination of Flash and Fire Points - Cleveland Open Cup Method and ASTM D 92 Standard Test Method for Flash and Fire Points by Cleveland Open Cup Tester.

  • TBT-3536
  • TBTSCIETECH

1. It adopts special heating furnace to ensure the safety of test. The heating power is continuously adjustable. It can meet requirements of test.

2. The instrument adopts desktop structure. The stainless steel working table and furnace shell make it beautiful and elegant.

3. The instrument is fully self-contained complete. The operator can do determination as long as connecting with coal gas or other civil gas.

4. It equipped with flame extinguishing cover which accord with requirements of test


Power supply:

AC(220±10%)V, 50Hz.

Heating device

Quartz tube furnace heating, no naked fire, explosion prevented. The power is adjustable from 0W to 600W.

Test flame applicator

It applies the test flame automatically.

Thermometer:

(-6~400)℃. It is the same as thermometer ASTM 11C.

Igniting device

(1) Ignition source: coal gas(or civil gas)

(2) Flame diameter is 3.2mm~4.8mm

Ambient temperature:

(-10∼50)℃

Relative humidity

≤85%

Maximum power consumption

650W

Dimension

350mm×290mm×350mm (thermometer is not included)


No.

Name

Unit

Qty

Remark

1

Main unit

Set

1


2

Cleveland oil cup

Piece

1

We can provide more if you required.

3

Ignition device

Set

1


4

Thermometer

Piece

1

-6℃~400 ℃, scale division is 2 ℃

5

Thermometer holder

Set

1


6

Fuse 5 A (Φ5×20)

Piece

2


7

Latex tube Φ6

Meter

1.5

Could not be used as coal gas tube

8

Joint for coal gas tube

Piece

1

Connect coal gas tube and latex tube

9

Extinguishing cover

Piece

1
