TBTDW-30
TBTSCIETECH
| Availability: | |
|---|---|

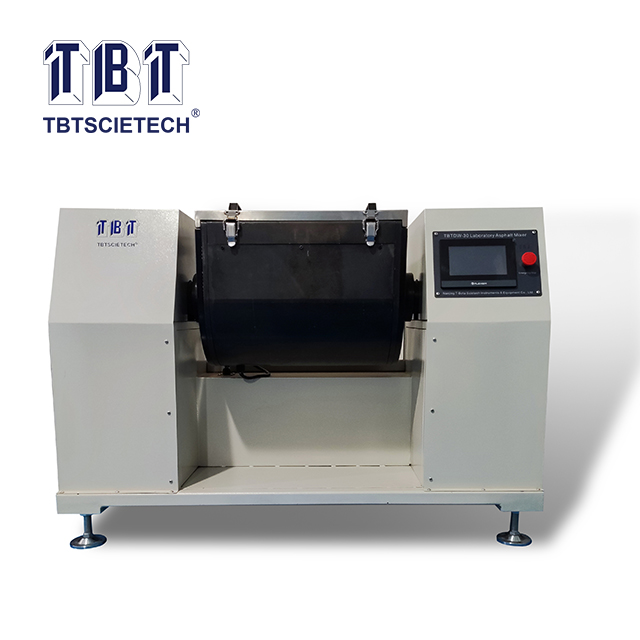

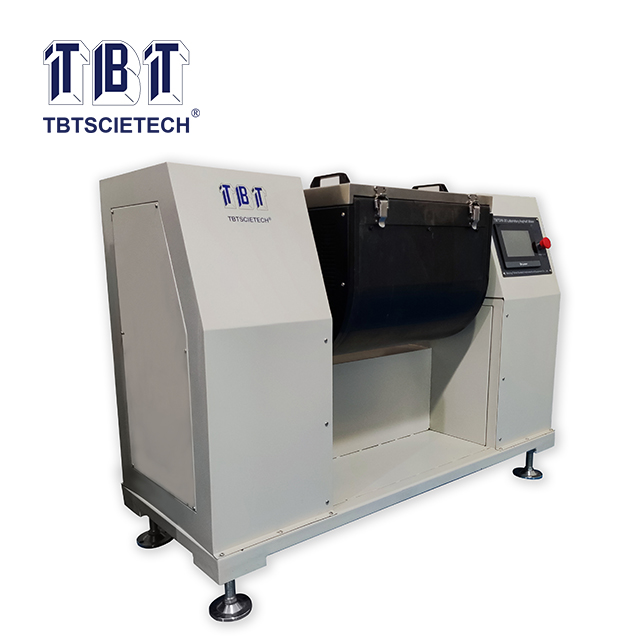

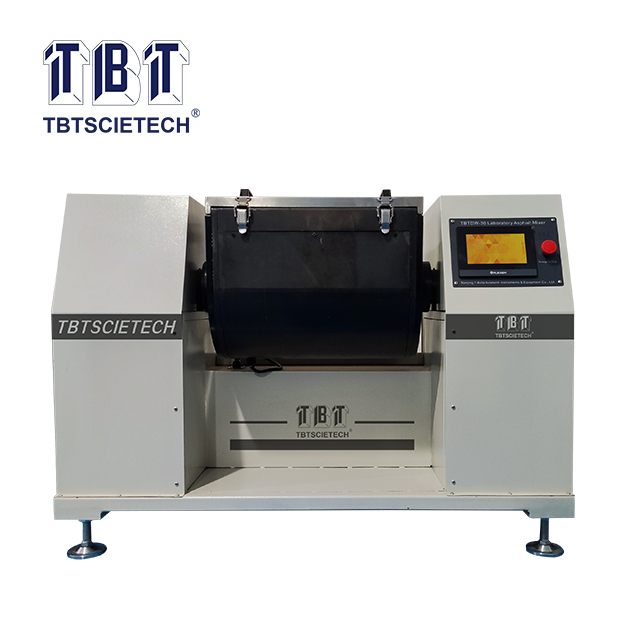

TBTDW-30 adopts advanced design, rigid structure and touch screen controller.
Its 30liter large capacity mixing chamber can be used to produce samples for performing tests of Marshall stability, gyratory compaction, slab compaction for wheel tracker etc.
It is essential that the preparation of a bituminous mixture is carried out at a reference temperature and a limited time period in order to reduce mechanical degradation of the aggregates.
TBTDW-30 adopts advanced design, rigid structure and touch screen controller.
Its 30liter large capacity mixing chamber can be used to produce samples for performing tests of Marshall stability, gyratory compaction, slab compaction for wheel tracker etc.
It is essential that the preparation of a bituminous mixture is carried out at a reference temperature and a limited time period in order to reduce mechanical degradation of the aggregates.
EN 12697-35
EN 12697-35

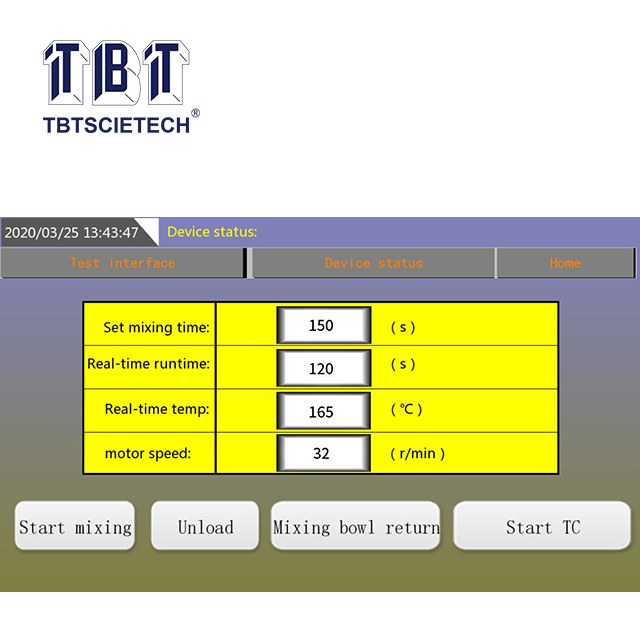

1. Industrial touch screen controller can display the temperature, time and speed in real time, easy operation;
2. The mixing temperature can be set from room temperature to 250℃, which meets the temperature requirements of cold/warm/hot mixing;
3. The temperature sensor monitors the mixing temperature in real time and the control accuracy is ±5°C;
4. Stepless speed mixing paddle (5~35) rpm can meet the different mixing requirements for aggregate gradations and modified asphalts;

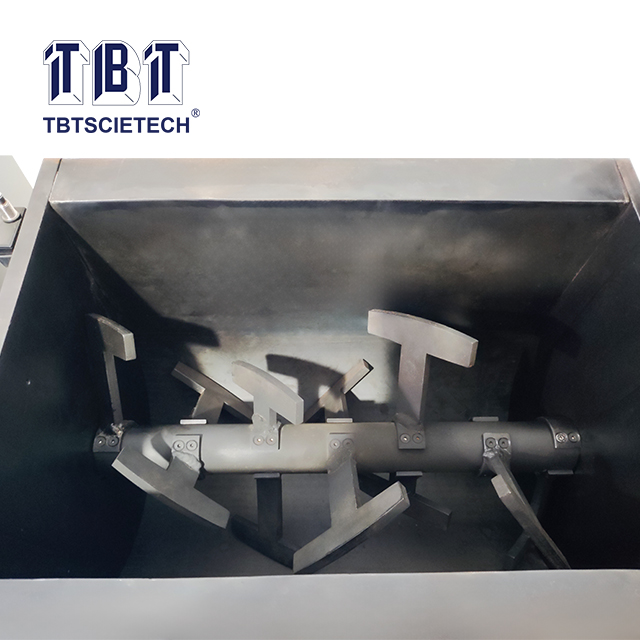

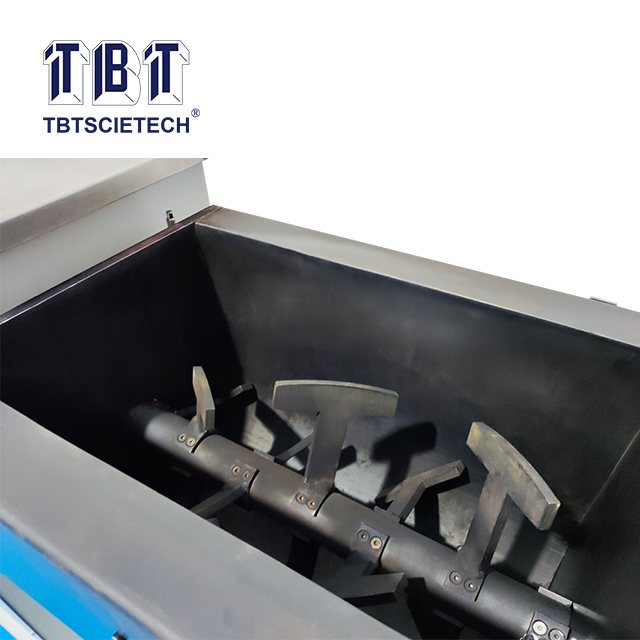

5. Horizontal structure design mixing pot adopts motorized tilting system, it can be rotated up to 130° for convenient feeding and discharging.
1. Industrial touch screen controller can display the temperature, time and speed in real time, easy operation;
2. The mixing temperature can be set from room temperature to 250℃, which meets the temperature requirements of cold/warm/hot mixing;
3. The temperature sensor monitors the mixing temperature in real time and the control accuracy is ±5°C;
4. Stepless speed mixing paddle (5~35) rpm can meet the different mixing requirements for aggregate gradations and modified asphalts;
5. Horizontal structure design mixing pot adopts motorized tilting system, it can be rotated up to 130° for convenient feeding and discharging.
Mixing volume | 30 liters |
Speed of mixing paddle | 0~35r/min |
Temperature control range | Room temperature~250℃ |
Temperature control accuracy | ±5℃ |
Time control range | 0~9999 seconds |
Time control accuracy | ±1 second |
Mixing motor | 380V, 50Hz, 750W |
Dimension | 1350x550x980mm |
Weight of the whole machine | 200kg |
Mixing volume | 30 liters |
Speed of mixing paddle | 0~35r/min |
Temperature control range | Room temperature~250℃ |
Temperature control accuracy | ±5℃ |
Time control range | 0~9999 seconds |
Time control accuracy | ±1 second |
Mixing motor | 380V, 50Hz, 750W |
Dimension | 1350x550x980mm |
Weight of the whole machine | 200kg |
