TBTRMT-3
TBTSCIETECH
| Availability: | |
|---|---|
Introduction

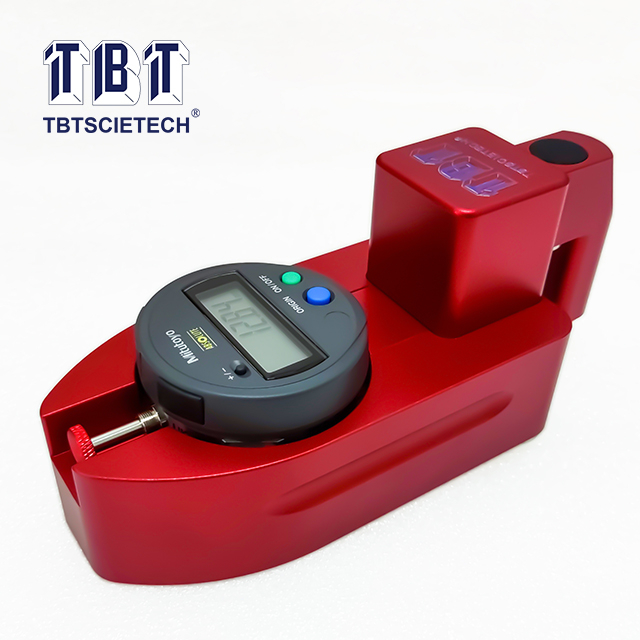

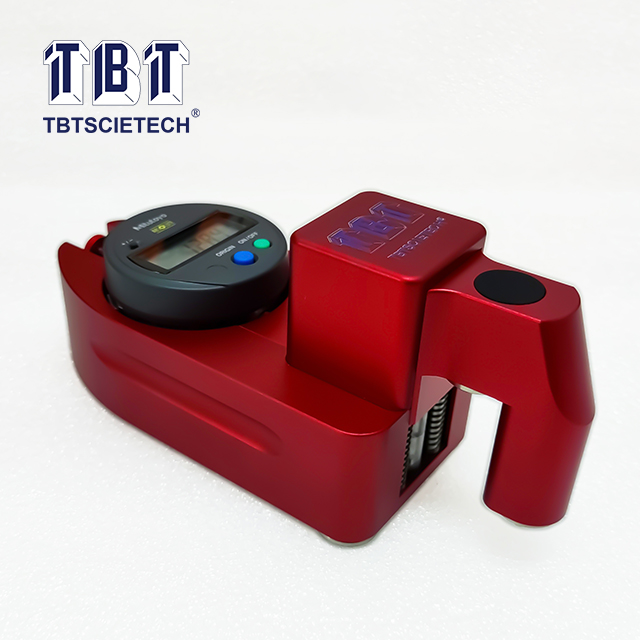

TBTRMT-3 is a digital device for measuring the thickness of dry road markings via Mitutoyo dial indicator.
It ensures a simple but efficient metric for measurement and apply to quality control and inspection of marking coating thickness for road maintenance units, road marking lacquer manufacturers, construction companies, quality supervision department.
Referring Standard
EN 13197
Features
1. Portable design, easy to carry;
2. Mitutoyo dial indicator for high accuracy measurement;
3. High accuracy in 0.02mm.
Technical Specification
Measuring range | +/-12.7mm |
Measuring resolution | 0.01mm |
Accuracy | 0.02mm |
Display | OLED |
Button battery working time | >100hr |
Power supply | 1.5V |
Working temperature & humidity | -10~ 50℃, <98%RH |
Net weight | Around 0.9KG |
Standard Configuration
No. | Description | Standard/Optional |
1 | 1pc Main Host | Standard |
2 | 1pc Instruction Manual | Standard |

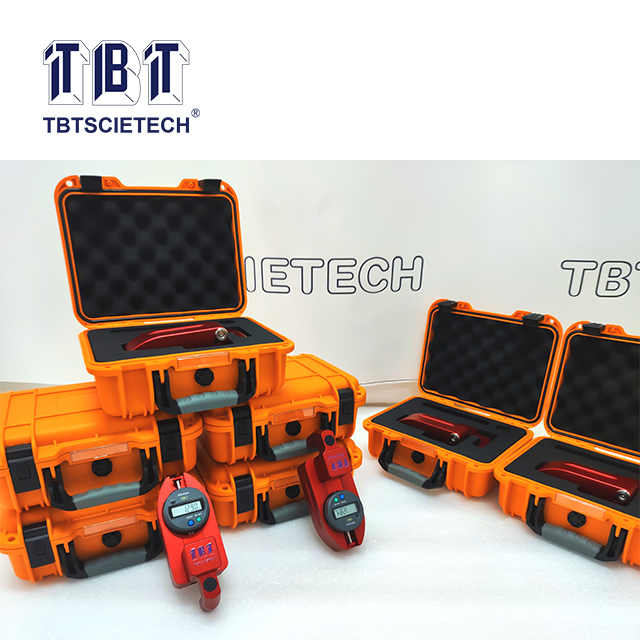

3 | Carrying Case | Standard |
