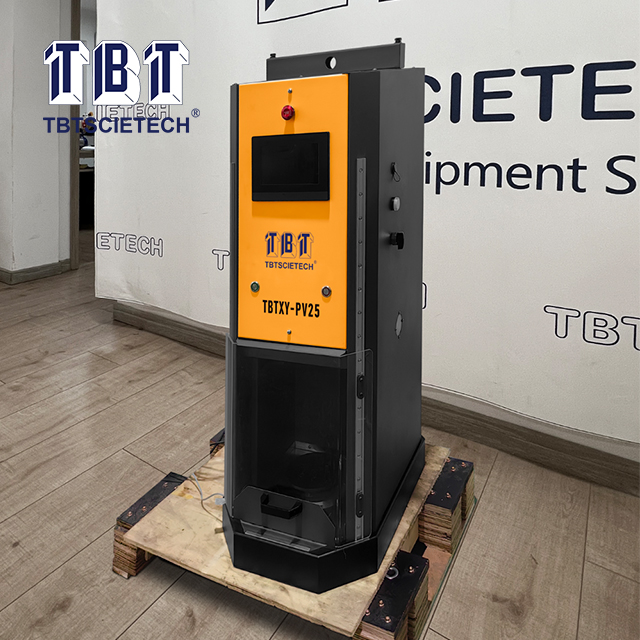

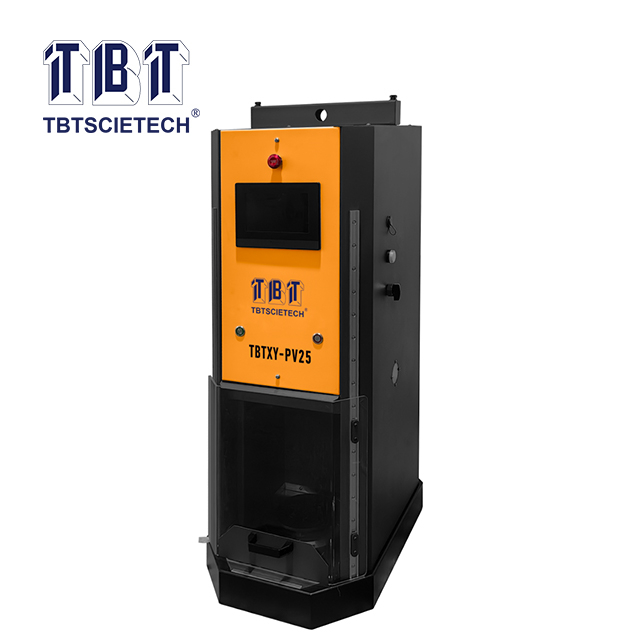

Mini Electromechanical Asphalt Gyratory Compactor

TBTXY-PV25 adopts advanced electromechanical technology to realize the compaction of cylindrical specimen of asphalt mixtures using the Superpave gyratory compactor.

It reproduces real site compaction condition during road paving operation, thus can ascertain asphalt mixture compaction quality.

AASHTO T312, ASTM D6925, EN 12697-31

1. Integrated mini design to reduce laboratory space occupation;

2. High quality steel rigid frame to ensure the stable running;

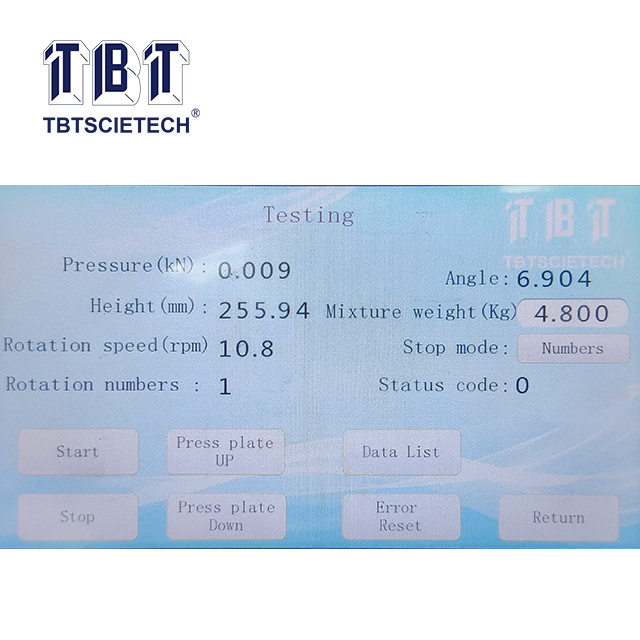

3. Touch screen controller can display curves of angle, pressure, speed etc. in real time;

4. Quick setting for compaction pressure, speed and adjustable gyration angle etc.;

5. It supports to export data via USB port;

6. It adopts high performance electric actuator;

7. The compaction height and compaction circles can be precisely controlled;

8. ±0.1%FS coaxial pressure sensor for accurate & stable vertical compaction force control;

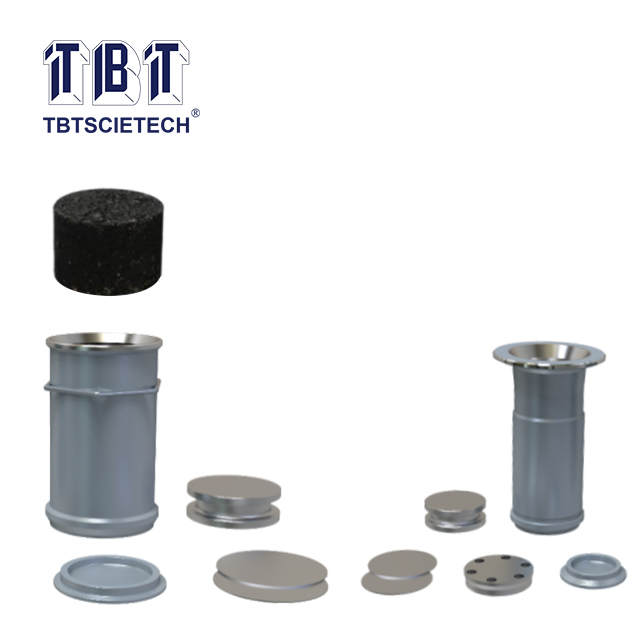

9. Support diameter 150mm or diameter 100mm moulds;

10. Optional integrated specimen extruder;

11. Sliding transparent safety door for observing compaction procedure.
