TBT-0755
TBTSCIETECH
| Availability: | |
|---|---|

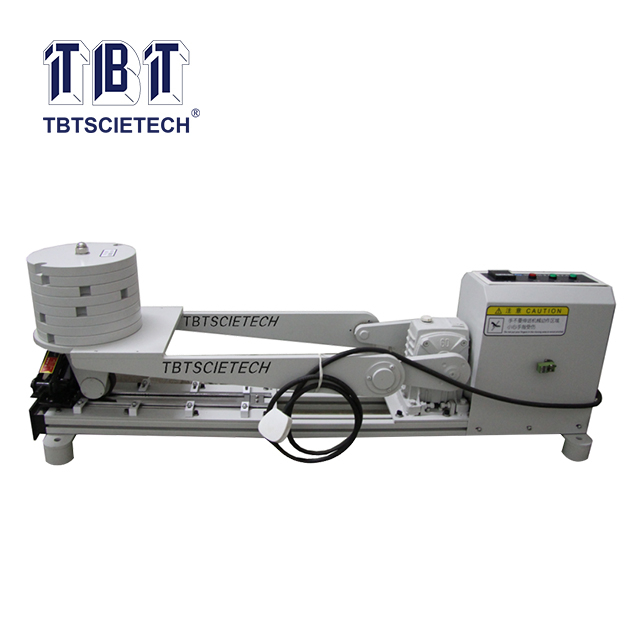

The instrument is designed and made as per T 0755-2011 “Load Wheel Test for Slurry Mixtures” and referring to ISSA TBT109. It is suitable to control the upper limit of asphalt used in the slurry mixtures, also it can confirm the best asphalt content of slurry mixtures together with wet wheel abrasion test .
The instrument is designed and made as per T 0755-2011 “Load Wheel Test for Slurry Mixtures” and referring to ISSA TBT109. It is suitable to control the upper limit of asphalt used in the slurry mixtures, also it can confirm the best asphalt content of slurry mixtures together with wet wheel abrasion test .
T 0755-2011, ISSA TBT10
T 0755-2011, ISSA TBT10
1. Adopts floor type structure, reasonable structure and friendly operating.
2. Frequency of rolling compaction can be preset by the operator during the test. During testing, machine will count automatically, when counting value is equal to the setting value, counting process will stop and machine will stop working too.
3. Split weight, easy to load and unload.
4. Equipped with hand Jack, make assembling and disassembling more convenient.
1. Adopts floor type structure, reasonable structure and friendly operating.
2. Frequency of rolling compaction can be preset by the operator during the test. During testing, machine will count automatically, when counting value is equal to the setting value, counting process will stop and machine will stop working too.
3. Split weight, easy to load and unload.
4. Equipped with hand Jack, make assembling and disassembling more convenient.
No | Description | Technical Specification |
1 | Rolling compaction frequency | (44+/-1)time/min. |
2 | Crank radius | 152+/-2mm |
3 | Rubber wheel | Dia.: 76.5+/-1mm Width: 26+/-1mm Hardness: HA60~HA70 |
4 | Loading weight of rubber wheel | 56.7+/-0.5kg |
5 | Test mode | 6.4mm / 12.7mm (standard config) |
6 | Sand frame | ID 355*38*0.5mm |
7 | Steel cover | 353*36*3mm |
8 | Dimension | Around 1400*260*450mm |
9 | Weight | Around 110KG |
10 | Charger | DC 15V |
No | Description | Technical Specification |
1 | Rolling compaction frequency | (44+/-1)time/min. |
2 | Crank radius | 152+/-2mm |
3 | Rubber wheel | Dia.: 76.5+/-1mm Width: 26+/-1mm Hardness: HA60~HA70 |
4 | Loading weight of rubber wheel | 56.7+/-0.5kg |
5 | Test mode | 6.4mm / 12.7mm (standard config) |
6 | Sand frame | ID 355*38*0.5mm |
7 | Steel cover | 353*36*3mm |
8 | Dimension | Around 1400*260*450mm |
9 | Weight | Around 110KG |
10 | Charger | DC 15V |
