TBTWDW-J Series
TBTSCIETECH
TBTWDW-10J: | |
---|---|
TBTWDW-20J: | |
Availability: | |

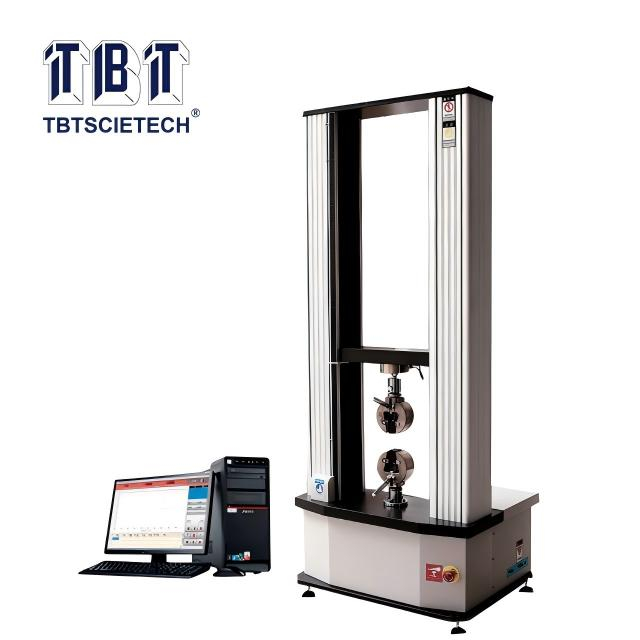

This computerized electronic universal testing machine, can perform physical tests such as tensile, compression, bending, shearing, peeling, tearing test on various metals, non-metals or composite materials products . The whole process of the test is controlled by computer with modular program design, which can automatically perform data storage, analysis and print report curves.
This computerized electronic universal testing machine, can perform physical tests such as tensile, compression, bending, shearing, peeling, tearing test on various metals, non-metals or composite materials products . The whole process of the test is controlled by computer with modular program design, which can automatically perform data storage, analysis and print report curves.
1. Automatic speed adjusting: during test, the test speed can be run at preset speed.
2. Accurate calibration and auto limit protection.
3. The machine is equipped with a high-precision load cell, a rotary encoder, ball screws and printer. When finish test, it will automatically save data to avoid unexpected power off, and calculate maximum loading force, tensile strength, loading for constant elongation, constant loading for elongation and elongation data.
4. Standard configuration is with one pair of fixture, the specific depend on customer’s request, standard fixture clamping diameter are 0-7 / 7-14 / 14-21mm for both flat or round specimen.
5. Standard configuration NOT include extensometer or large deformation device.
6. This bench type with very competitive price which are popularly welcomed in less budget customers.
1. Automatic speed adjusting: during test, the test speed can be run at preset speed.
2. Accurate calibration and auto limit protection.
3. The machine is equipped with a high-precision load cell, a rotary encoder, ball screws and printer. When finish test, it will automatically save data to avoid unexpected power off, and calculate maximum loading force, tensile strength, loading for constant elongation, constant loading for elongation and elongation data.
4. Standard configuration is with one pair of fixture, the specific depend on customer’s request, standard fixture clamping diameter are 0-7 / 7-14 / 14-21mm for both flat or round specimen.
5. Standard configuration NOT include extensometer or large deformation device.
6. This bench type with very competitive price which are popularly welcomed in less budget customers.
Max.loading capacity | 10KN / 20KN |
Testing grade | class 1 |
Loading measuring range | 2% -100% |
Loading measuring accuracy | better than ± 0.1% |
Displacement resolution | 0.001mm |
Displacement measurement accuracy | better than ± 1% |
Test speed range | 0-500mm / min |
Vertical tensile space | 900mm (excluding fixture) |
Vertical Compression space | 800mm |
Compression plate diameter | 120mm |
Test width | 400mm |
Motor | Servo motor |
Sensor | S type |
Main unit size | 710*460*1600mm |
Main unit weight | Around 180Kg |
Power supply | 220VAC 50HZ |
Max.loading capacity | 10KN / 20KN |
Testing grade | class 1 |
Loading measuring range | 2% -100% |
Loading measuring accuracy | better than ± 0.1% |
Displacement resolution | 0.001mm |
Displacement measurement accuracy | better than ± 1% |
Test speed range | 0-500mm / min |
Vertical tensile space | 900mm (excluding fixture) |
Vertical Compression space | 800mm |
Compression plate diameter | 120mm |
Test width | 400mm |
Motor | Servo motor |
Sensor | S type |
Main unit size | 710*460*1600mm |
Main unit weight | Around 180Kg |
Power supply | 220VAC 50HZ |
