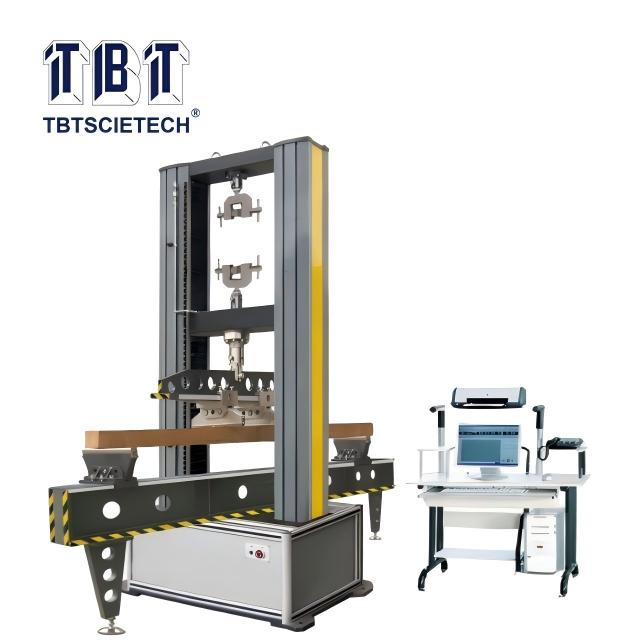

Computer Control Large Span Wood-based Panel Universal Testing Machine

The wood-based panel testing machine is used in mechanical property tests for various wood-based panels, including plywood, particle board, fiberboard, OSB (oriented structural board), cement-bonded particleboard, multi-ply parquets, bamboo flooring, MDF, decorative veneered wood-based panels, resin impregnated paper overlaid wood-based panels, and laminated flooring.

Model:
TBTMWW-100
Brand:
TBTSCIETECH

TBTMWW-100:	100KN
Availability:



Inquire

Description

It is used in mechanical property tests for various wood-based panels, including plywood, particle board, fiberboard, OSB (oriented structural board), cement-bonded particleboard, multi-ply parquets, bamboo flooring, MDF, decorative veneered wood-based panels, resin impregnated paper overlaid wood-based panels, and laminated flooring.

This flexural testing machine is suitable for surface gluing strength, surface bonding strength, internal bonding strength, nail withdrawal force, static bending strength, elastic modulus, glue-line shear strength tests.

It is also used in 3-point flexure test and 4-point flexure tests for super long specimen less than 3000mm.

These testing machines conform to the standards EN310, EN319, EN320, ASTM D1037, DIN52366, and JISA 5909.

Specification

Model	TBTMWW-100
Max. Test force	100kN
Load grade	Class 0.5
Measuring range of load	0.4%-100%
Load resolution	1/±300000F.S
Speed control range of load	0.005%-5%FS/S
Speed control accuracy of load	If rate＜0.05%FS, accuracy: within ±2%of set value If rate≥0.05%FS, accuracy: within ±1%of set value
Speed control range of deformation	0.005-5%FS/s
Speed control accuracy of deformation	If rate＜0.05%FS, accuracy: within ±2%of set value If rate≥0.05%FS， accuracy: within ±1%of set value
Speed control range of displacement	0.005-500mm/min
Speed control accuracy of displacement	If rate＜0.5mm/min， accuracy:±1% of the set value If rate≥0.5mm/min， accuracy:±0.5% of the set value
Stroke of cross head	1200mm
Span between columns	510mm
Working voltage	1ph, 220V, 50Hz
Power	2000W
Dimension of loading frame (LWH)	1050x560x2150mm

Packing List

No.	Item	specification	quantity	Remark
1	Main Unit	Loading Unit	1PC	Totally 1 Package
2		Computer	1set
3		Printer	1PC
4	Accessories	Clamps for Tensile	1set
5	Accessories	Clamps for Compression	1set
6	Technical documents	Instruction Manual	1PC
7		Packing list	1PC
8		software Disk	1PC
9		Certificate	1PC
