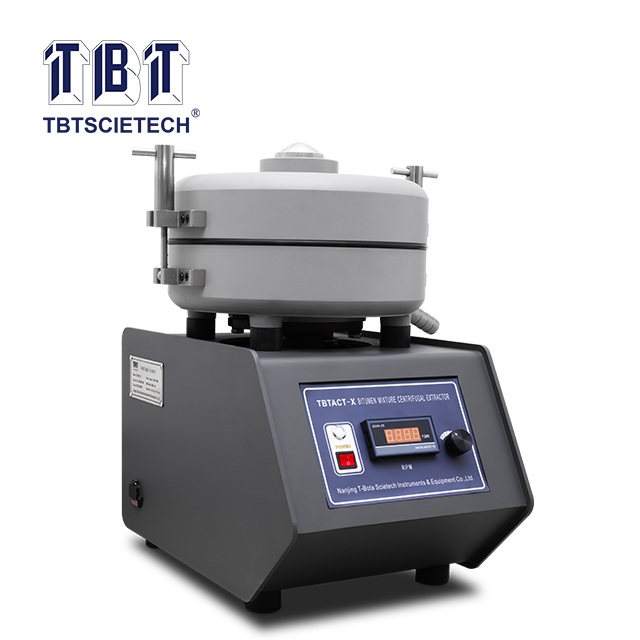

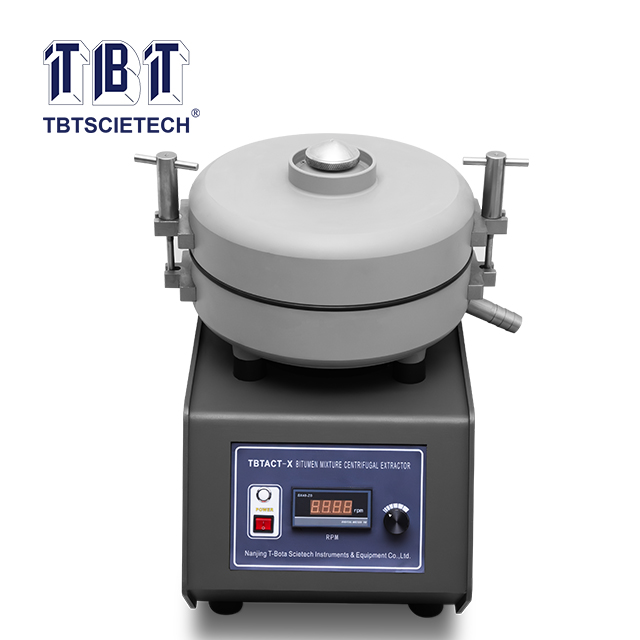

Centrifuge Binder Extractor

TBTACT-X is used for the determination of bitumen percentage in bituminous mixtures.

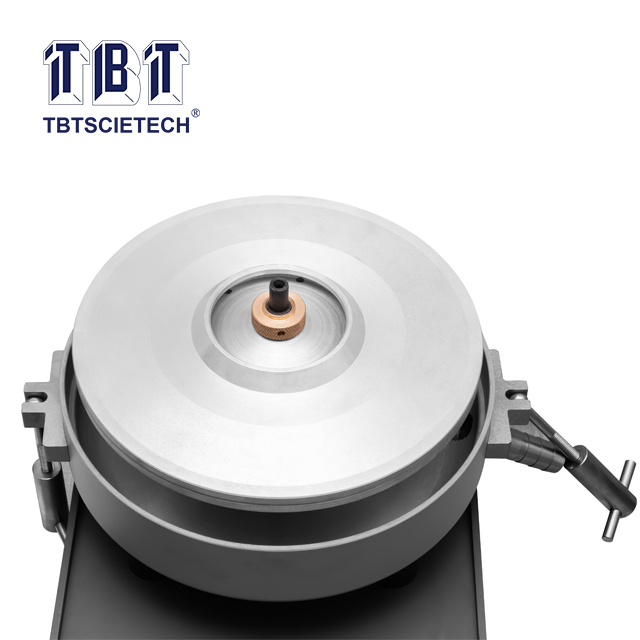

It consists of a removable rotor bowl, placed into a cylindrical box. Variable speed control through the front panel mounted control knob and brake control included for rapid deceleration.

Model:
TBTACT-X
Brand:
TBTSCIETECH

Availability:



Inquire

Introduction

TBTACT-X is used for the determination of bitumen percentage in bituminous mixtures.

It consists of a removable rotor bowl, placed into a cylindrical box. Variable speed control through the front panel mounted control knob and brake control included for rapid deceleration.

Referring Standard

EN12697-1, ASTM D2172, AASHTO T164A

Features

1. Stable operation with less vibration & noise;

2. Equip with speed control system, from min. to max. Speed, easy operating;

3. Standard 3000g bowl capacity and 1500g as optional.

Technical Specification

Rotating speed	3600rpm max.
Max. capacity	3000g(1500g optional)
Overall dimension	Ø350mm x 526mm(H)
Weight	Around 70KG
Filter paper	20pcs in standard configure
Motor power	750W
Power supply	220V, 50/60Hz
