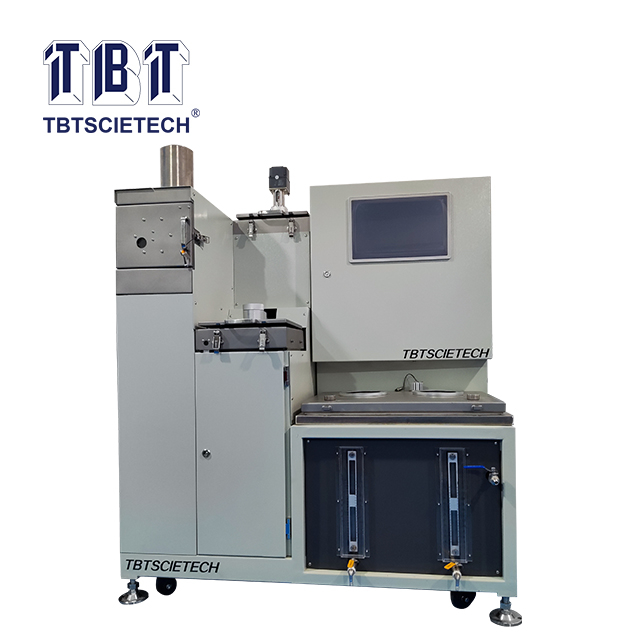

Asphalt Mix Analyzer(Ultrasonic Cleaning Method)

EN12697-1, ASTM D8159

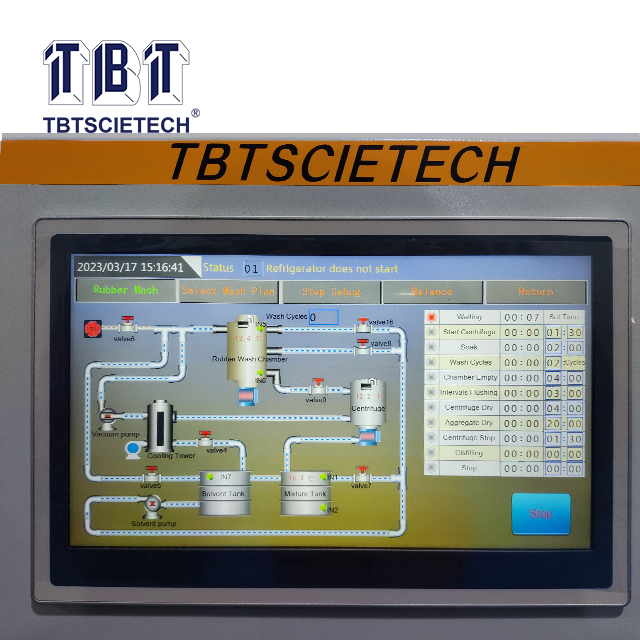

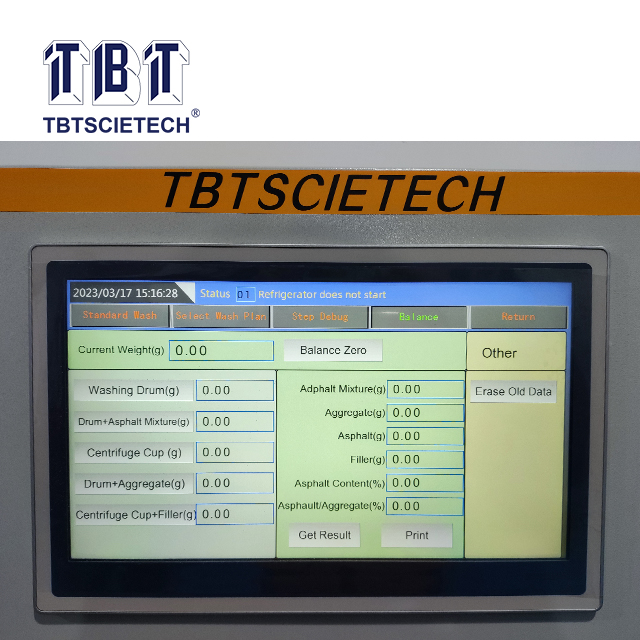

1. Touch screen controller for convenient operation;

2. Real-time display of ongoing process and time;

3. High extraction efficiency, the whole extraction process can be finished within 1 hour;

4. Can be used for the extraction of rubber-asphalt mixtures(optional function);

5. The extraction process is completed in a closed system and the solvent loss is small;

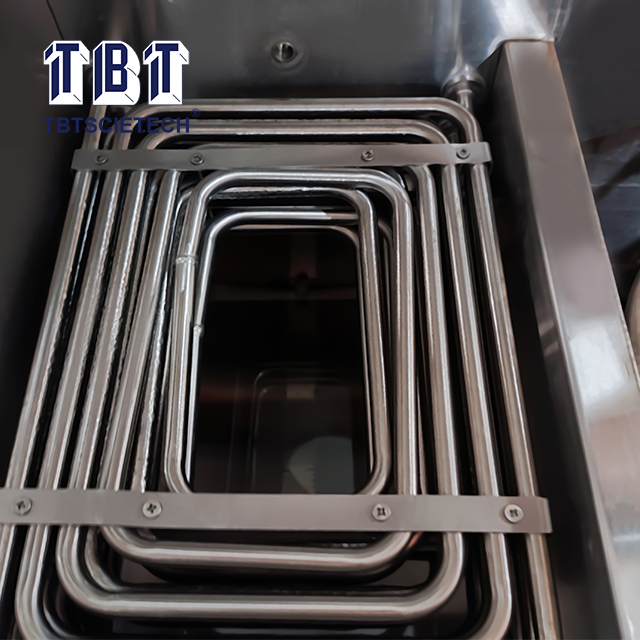

6. The cleaning chamber has heating function and it is equipped with an ultrasonic device to accelerate the dissolution of asphalt making the cleaning process more efficient;

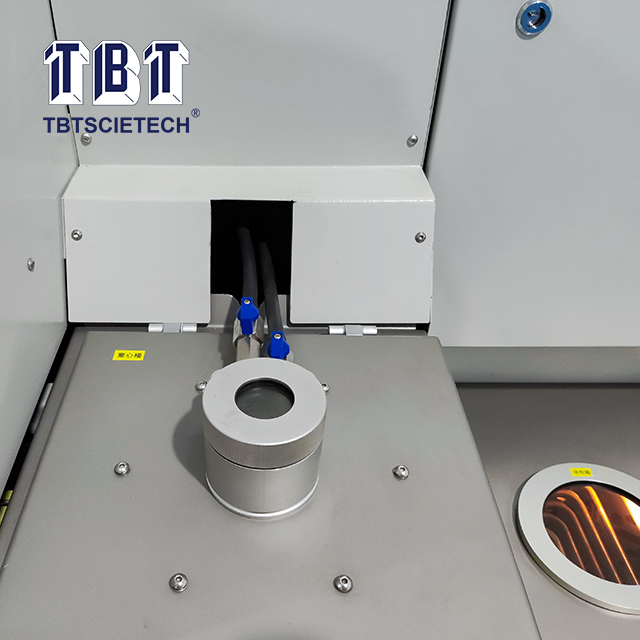

7. An observation window is installed at the inlet of the centrifuge, which can check the color of the mixture in real time;

8. The rotation speed of the centrifuge is not less than 8000r/min and the separation of mineral powder is more thorough;

9. The drying system can dry the aggregate and mineral powder, which is convenient for calculating the asphalt content. The collected aggregate can be further sieved;

10. The distillation system consists of mixed liquid silo, solvent silo and cooling device;

11. The Asphalt Vacuum Rotary Evaporation Test Sampling System can be set to soak for 3-30 minutes before the start of the cleaning cycle and directly extract the asphalt mixture sample;

12. Equip with chiller, the cooling effect is better than the traditional tap water cooling method;

13. Equipped with electric rotary evaporator;

14. Part of the asphalt experiment utensils can be cleaned and the cleaning fixture can be customized.
