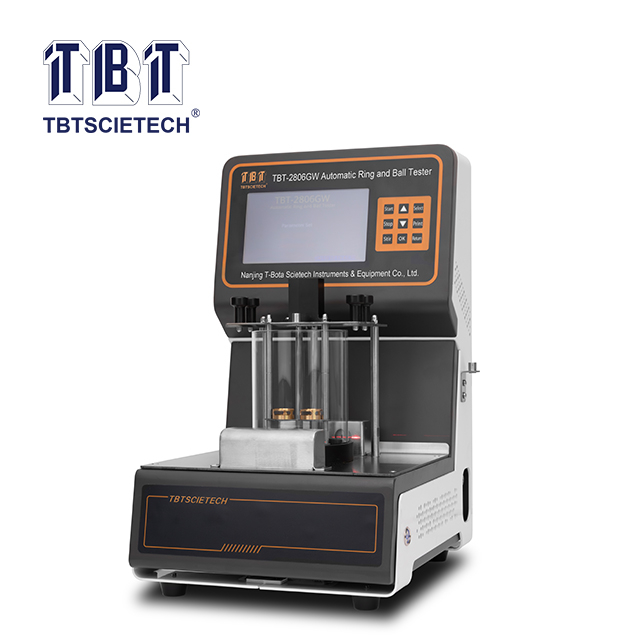

TBT-2806GW
TBTSCIETECH
| Availability: | |
|---|---|
TBT-2806GW is designed and made referring to ASTM D36 Standard Test Method for Softening of Bitumen (Ring-and-Ball Apparatus).
It is suitable to determine softening point of petroleum asphalt, coal pitch, liquid petroleum asphalt and various asphalts.
TBT-2806GW is designed and made referring to ASTM D36 Standard Test Method for Softening of Bitumen (Ring-and-Ball Apparatus).
It is suitable to determine softening point of petroleum asphalt, coal pitch, liquid petroleum asphalt and various asphalts.
ASTM D36, EN 1427
ASTM D36, EN 1427
1. The heating rate is in accuracy for 5±0.5℃/min;
2. Good temperature uniformity via magnetic stirring;
3. Fully automatic measurement and record test data;
4. Two samples can be tested simultaneously without affecting each other;
5. Temperature correction and temperature compensation parameters are set to ensure that the temperature display is consistent with the temperature measurement of the thermometer during the heating process;
6. It can be used for softening point detection in both low and high temperature sections;
7. Build in printer for printing test report.
1. The heating rate is in accuracy for 5±0.5℃/min;
2. Good temperature uniformity via magnetic stirring;
3. Fully automatic measurement and record test data;
4. Two samples can be tested simultaneously without affecting each other;
5. Temperature correction and temperature compensation parameters are set to ensure that the temperature display is consistent with the temperature measurement of the thermometer during the heating process;
6. It can be used for softening point detection in both low and high temperature sections;
7. Build in printer for printing test report.
Heating rate | 5±0.5℃/min |
Heating power | 1kW |
Steel ball mass | 3.5±0.05g |
Steel ball diameter | Ø9.53mm |
Ambient temperature & relative humidity | 5~35℃, ≤80% |
Temperature range | 5~180℃ |
Power supply voltage | 220V, 50Hz |
Rated total power | 0.8kW |
Dimensions | 360×370×560mm |
Heating rate | 5±0.5℃/min |
Heating power | 1kW |
Steel ball mass | 3.5±0.05g |
Steel ball diameter | Ø9.53mm |
Ambient temperature & relative humidity | 5~35℃, ≤80% |
Temperature range | 5~180℃ |
Power supply voltage | 220V, 50Hz |
Rated total power | 0.8kW |
Dimensions | 360×370×560mm |
