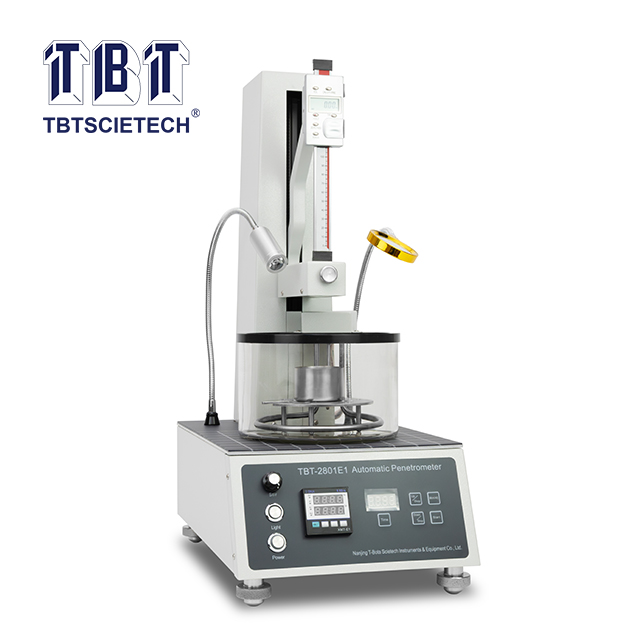

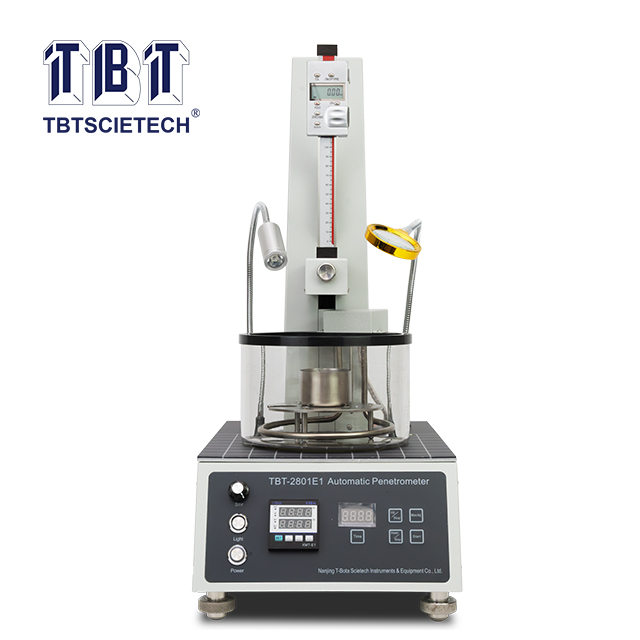

TBT-2801E1
TBTSCIETECH
| Availability: | |
|---|---|
Determination of penetration of pavement petroleum asphalt, modified asphalt, liquid petroleum asphalt and emulsified asphalt
This instrument is designed and made as per T0604-2011 Penetration Test for Bituminous Materials in JTG E20-2011 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering and ASTM D5 Standard Test Method for Penetration of Bituminous Materials.
It is used to determine the penetration of pavement petroleum asphalt, modified asphalt, liquid petroleum asphalt and emulsified asphalt. It is also suitable to test solid particle, powder, colloid and raw-food materials such as cheese, glycine, butter, cream and leavening. It can be widely used in food industry, highway engineering and other industrial fields.
Determination of penetration of pavement petroleum asphalt, modified asphalt, liquid petroleum asphalt and emulsified asphalt
This instrument is designed and made as per T0604-2011 Penetration Test for Bituminous Materials in JTG E20-2011 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering and ASTM D5 Standard Test Method for Penetration of Bituminous Materials.
It is used to determine the penetration of pavement petroleum asphalt, modified asphalt, liquid petroleum asphalt and emulsified asphalt. It is also suitable to test solid particle, powder, colloid and raw-food materials such as cheese, glycine, butter, cream and leavening. It can be widely used in food industry, highway engineering and other industrial fields.
1. The needle holder is designed novelly. It can be moved vertically and adjusted roughly and finely without measurable frication.
2. It adopts novel heating design. The heating and temperature measuring device are separated from water bath, easy to operate.
3. Equipped with automatic temperature controller and high accuracy temperature sensor, the temperature can be set conveniently and controlled precisly.
4. It adopts newly designed digital meter. The measuring data is stable and reliable.
1. The needle holder is designed novelly. It can be moved vertically and adjusted roughly and finely without measurable frication.
2. It adopts novel heating design. The heating and temperature measuring device are separated from water bath, easy to operate.
3. Equipped with automatic temperature controller and high accuracy temperature sensor, the temperature can be set conveniently and controlled precisly.
4. It adopts newly designed digital meter. The measuring data is stable and reliable.
Measurement Range | (0～600) penetration scale |
Resolution | 0.01mm |
Timing controller | 5s or 60s, can be setted at will，bias within ±0.1s |
Heating power | 200W |
Temperature control accuracy | 25℃±0.1℃ （Note: The ambient temperature shall not exceed 20℃） |
Temperature control mode | High accuracy digital temperature controller |
Constant temperature bath | Hard glass bath |
Stirring | Automatically stirred by magnetic stirrer |
Standard needle | 2.5g±0.05g |
Needle holder | It can be adjusted roughly and finely without measurable frication to make the tip aim the sample conveniently. |
Power supply | 220VAC 50HZ |
Dimension | 280mm×350mm×700mm |
Measurement Range | (0～600) penetration scale |
Resolution | 0.01mm |
Timing controller | 5s or 60s, can be setted at will，bias within ±0.1s |
Heating power | 200W |
Temperature control accuracy | 25℃±0.1℃ （Note: The ambient temperature shall not exceed 20℃） |
Temperature control mode | High accuracy digital temperature controller |
Constant temperature bath | Hard glass bath |
Stirring | Automatically stirred by magnetic stirrer |
Standard needle | 2.5g±0.05g |
Needle holder | It can be adjusted roughly and finely without measurable frication to make the tip aim the sample conveniently. |
Power supply | 220VAC 50HZ |
Dimension | 280mm×350mm×700mm |

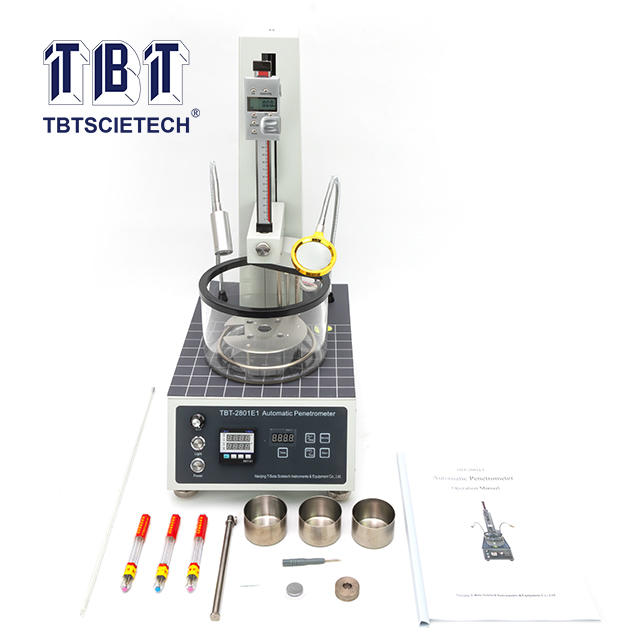

No. | Item | Unit | Qty | Remarks | |
1 | Standard needle | Piece | 3 | ||
2 | Needle connecting rod | Set | 1 | ||
3 | Weight (50g) | Piece | 1 | ||
4 | Asphalt sample container | Φ55 × H35 (small sample container) | Piece | 3 | |
Φ70 × H45 (big sample container) | Piece | 3 | Selection of accessories | ||
Φ55 × H70 (special sample container) | Piece | 3 | Selection of accessories | ||
5 | Mercury thermometer (0~50 ℃, scale division is 0.1 ℃) | Piece | 1 | ||
6 | Glass sink | Piece | 1 | ||
7 | Triangle holder | Piece | 1 | ||
8 | 3A fuse (Ф5×20) | Piece | 2 | ||
9 | Magnetic stir bar | Piece | 1 | ||
10 | Monitor battery(LR44,1.5V button batteries, φ11.5 × thickness of 5) | Piece | 1 | ||
