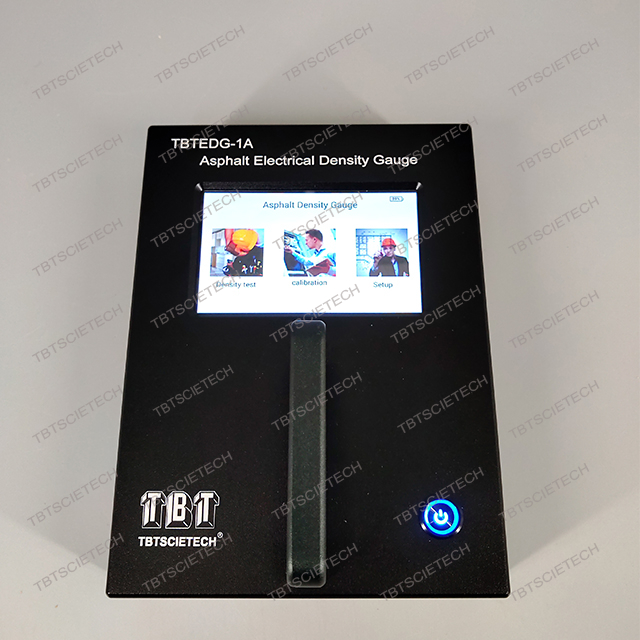

Asphalt Non Nuclear Electrical Density Gauge EDG

Share to:

This instrument adopts non-nuclear method to the density of asphalt, nowadays widely used in in-site pavement testing;

  • TBTEDG-1A
  • TBTSCIETECH

This instrument adopts electromagnetic method to test asphalt pavement evenness and relative density;

This instrument can test and auto calculate the average density, compaction and porosity;

Based on these data to find the unevenness and low density area of the pavement, thus to fix the problem in advance;

  1. Fast and accurate, can get testing result around 3second;

  2. non-nuclear technology avoids the permission or certificate for nuclear usage;

  3. touch screen, easy to operate

  4. three measuring mode of continuous measuring, average measuring, segregation measuring;


Operating temp.

 0~70C

Measuring depth

 2CM ~ 30CM

Temp. Sensor range

 0~350C

Display content

 density / compaction / porosity

Measuring time

 <3second

Measuring accuracy

 3%

Main unit dimension

 around 256*189*75mm

With 5.1inch touch screen,

32G storage which can store 1million testing data;

Power supply

 12V 5000mAh Li-battery which can use continuously for approx. 20hrs.


No.

Name

Unit

Qty

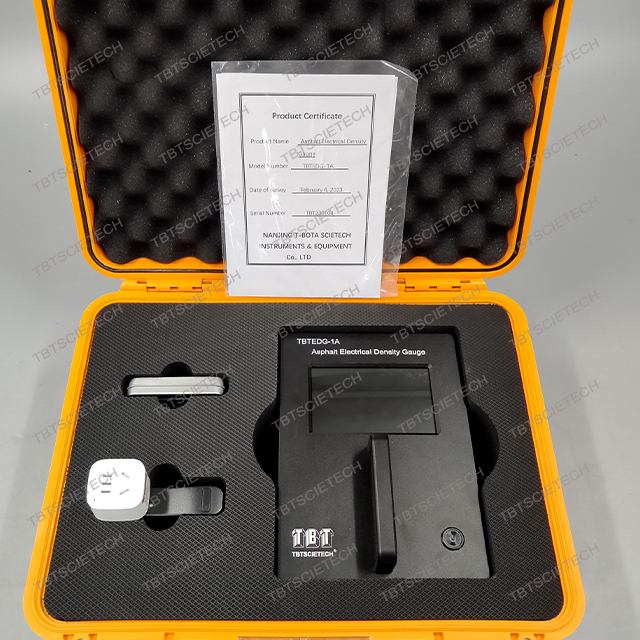

1

Main unit for Asphalt Non-Nuclear Electrical Density Gauge(EDG)

Set

1

2

Manual book

Piece

1
