TBTEDG-1A
TBTSCIETECH
| Availability: | |
|---|---|

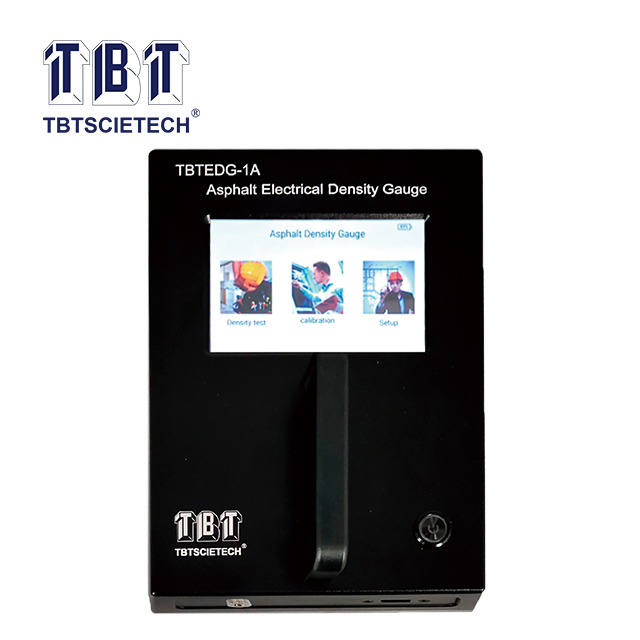

TBTEDG-1A Non-Nuclear Asphalt Density Gauge is a portable non-destructive pavement quality indicator with a touch screen and user friendly graphical menu interface.
It is mainly used to read the density of asphalt materials in new pavement(include upper, middle and lower layers of pavement structure layer.
It is also suitable for old asphalt pavement with no pollution, smooth surface and loose surface.
TBTEDG-1A Non-Nuclear Asphalt Density Gauge is a portable non-destructive pavement quality indicator with a touch screen and user friendly graphical menu interface.
It is mainly used to read the density of asphalt materials in new pavement(include upper, middle and lower layers of pavement structure layer.
It is also suitable for old asphalt pavement with no pollution, smooth surface and loose surface.
1.Fast and accurate material density and compaction test;
2.The use of non-nuclear technology means exemptions from licensing, service charges or security considerations;
3.Can read the data accurately in three seconds;
4.Touch screen operation, light and easy operation;
5. Measuring Density in Universal Units (g./cm³ or kg/m³);
6. Higher precision and better stability;
7. Using U disc to copy the data directly.
1.Fast and accurate material density and compaction test;
2.The use of non-nuclear technology means exemptions from licensing, service charges or security considerations;
3.Can read the data accurately in three seconds;
4.Touch screen operation, light and easy operation;
5. Measuring Density in Universal Units (g./cm³ or kg/m³);
6. Higher precision and better stability;
7. Using U disc to copy the data directly.
Operating temperature | 0℃~70℃ |
Measuring depth | Standard 20~120mm, Max. 300mm |
Measuring time | ≤3 seconds |
Display content | Density/compaction/porosity/temperature and humidity |
Temperature sensor | 0~350℃ |
Accuracy | 1~2% |
Detection area | Diameter 15cm |
Data | 10,000 data can be stored in internal ROM; |
32G storage support 1,000,000pcs | |
Built-in detection & calibration function | Accurate results obtained under various temperature & humidity conditions |
Main unit dimension | Around 230*170*60mm |
Displayer | With 5.1inch touch screen |
Power supply | 12V/2.6Ah Li-battery which can use continuously for approx. 24hrs |
Interface | USB, U disc can transmit data directly or upgrade internal software |
Calibration | No need to do coring calibration, can test directly |
Built-in measurement correction(compensation) function for accurate results under various temperature & humidity conditions | |
Operating temperature | 0℃~70℃ |
Measuring depth | Standard 20~120mm, Max. 300mm |
Measuring time | ≤3 seconds |
Display content | Density/compaction/porosity/temperature and humidity |
Temperature sensor | 0~350℃ |
Accuracy | 1~2% |
Detection area | Diameter 15cm |
Data | 10,000 data can be stored in internal ROM; |
32G storage support 1,000,000pcs | |
Built-in detection & calibration function | Accurate results obtained under various temperature & humidity conditions |
Main unit dimension | Around 230*170*60mm |
Displayer | With 5.1inch touch screen |
Power supply | 12V/2.6Ah Li-battery which can use continuously for approx. 24hrs |
Interface | USB, U disc can transmit data directly or upgrade internal software |
Calibration | No need to do coring calibration, can test directly |
Built-in measurement correction(compensation) function for accurate results under various temperature & humidity conditions | |
