Road Asset Management System
Road Asset Management System Road Asset Management System
Road Asset Management System Road Asset Management System

loading

Road Asset Management System

Share to:
sharethis sharing button
TBTLC-1 system is used for collecting the road assets which get the pictures by single camera(standard config, can be extended to more cameras as per customer request), the pictures saved in .jpg format, very convenient for further checking and review.
  • TBTLC-1

  • TBTSCIETECH

Availability:

TBTLC-1 system is used for collecting the road assets which get the pictures by single camera(standard config, can be extended to more cameras as per customer request), the pictures saved in .jpg format, very convenient for further checking and review.

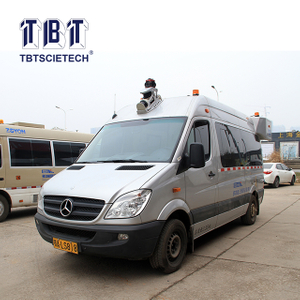

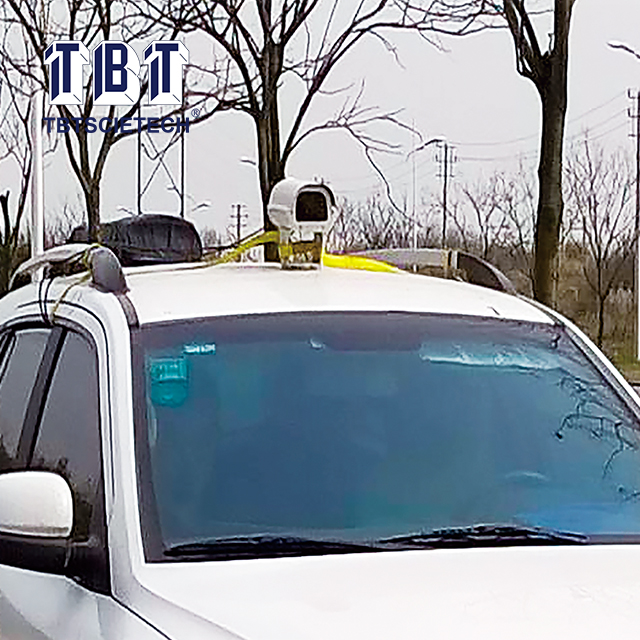

The camera is installed at the top of vehicle at front part, set the interval and take pictures during high speed driving. The connecting with laptop is connected via ethernet.


Resolution

1628*1236

Sensor type

CCD

Optical size

1/1.8" Sony ICX274

Frames per second

20fps

Shutter speed

20μs~1s

Working temperature

0~60℃

Working humidity

10%~80%RH

Testing interval

2meter or more than 2meter

Testing speed

0~120km/h

DMI measuring accuracy

0.1%
