HWY-10
TBTSCIETECH
| Availability: | |
|---|---|

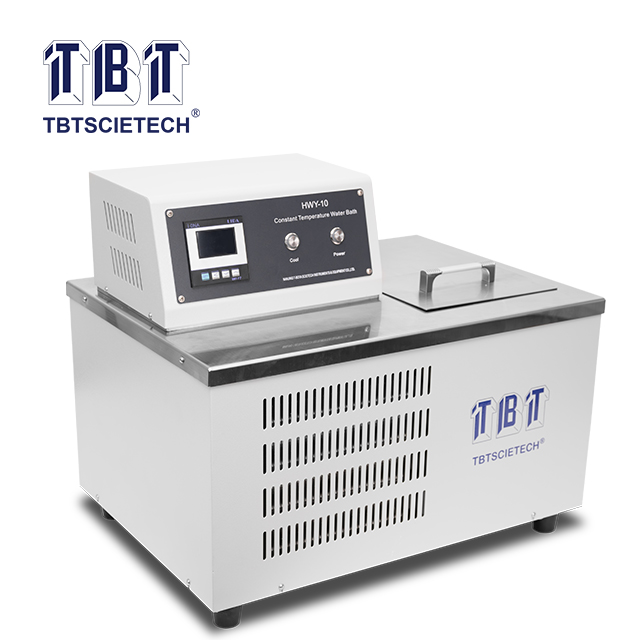

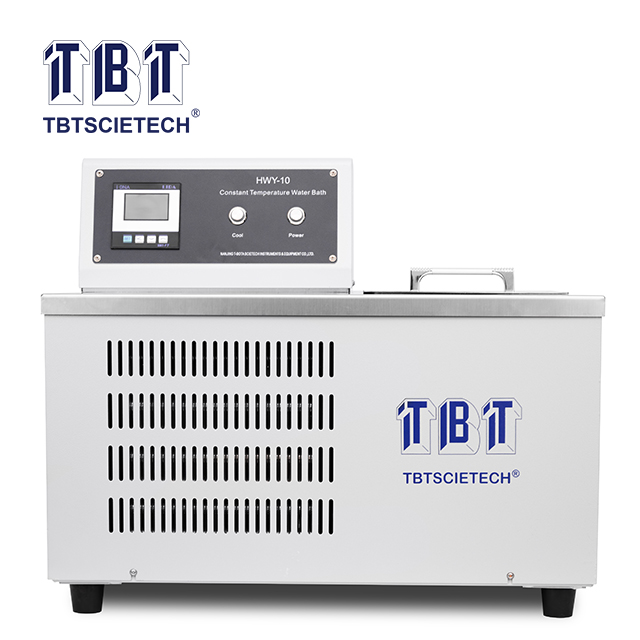

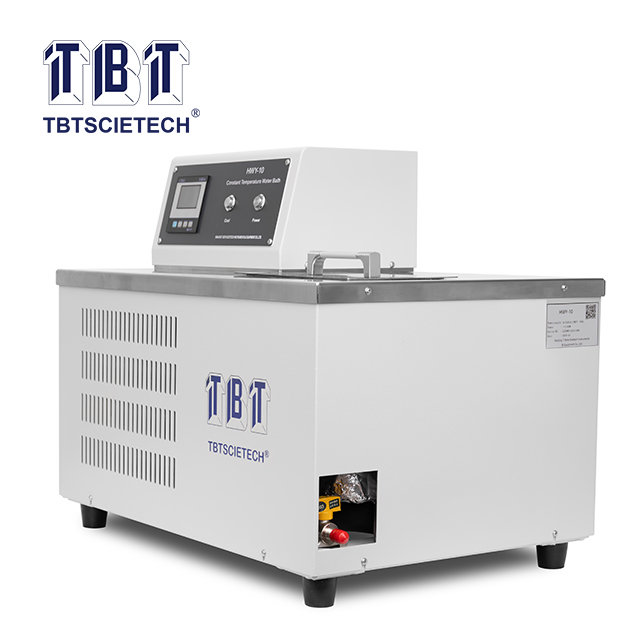

HWY-10 water bath is specially designed and made for factories, companies, construction companies, research institutes, and colleges and universities. It not only provides a constant temperature bath for high and low temperature test, but also contains a circulation device in the constant temperature bath for keeping temperature stable in other closed circulation system.
HWY-10 water bath is specially designed and made for factories, companies, construction companies, research institutes, and colleges and universities. It not only provides a constant temperature bath for high and low temperature test, but also contains a circulation device in the constant temperature bath for keeping temperature stable in other closed circulation system.
1. HWY-10 is one-piece structure, there are two sets of temperature control system, heating and refrigeration, can be set up by temperature controller, the instrument will automatically control the bath temperature to achieve constant temperature, it can be used as the outer loop;
2. When the test is carried out blow the room temperature, opening the cooling switch. The instrument also carries on the automatic temperature control and will keep constant temperature as set;
3. The outer surface is treated by spraying plastics, inner container is of stainless steel material.
1. HWY-10 is one-piece structure, there are two sets of temperature control system, heating and refrigeration, can be set up by temperature controller, the instrument will automatically control the bath temperature to achieve constant temperature, it can be used as the outer loop;
2. When the test is carried out blow the room temperature, opening the cooling switch. The instrument also carries on the automatic temperature control and will keep constant temperature as set;
3. The outer surface is treated by spraying plastics, inner container is of stainless steel material.
Power supply | 220V 50Hz |
Volume of bath | 10 L |
Temperature controlling range | -10 ℃ ~ 95 ℃ |
Temperature controlling accuracy | ±0.1 ℃ |
Quantity of circulated water | ≥3.5 L/min |
Ambient temperature | -10 ℃～+30 ℃ |
Relative humidity | ≤85% |
Dimension | Around 530 mm x 400mm x 430 mm (L x W x H) |
Maximum power consumption | Not more than 1100 W |
Power supply | 220V 50Hz |
Volume of bath | 10 L |
Temperature controlling range | -10 ℃ ~ 95 ℃ |
Temperature controlling accuracy | ±0.1 ℃ |
Quantity of circulated water | ≥3.5 L/min |
Ambient temperature | -10 ℃～+30 ℃ |
Relative humidity | ≤85% |
Dimension | Around 530 mm x 400mm x 430 mm (L x W x H) |
Maximum power consumption | Not more than 1100 W |
