Laser Crack Detecting System

Share to:

Pavement cracks, pits and other diseases that cause road surface technical conditions or road surface performance degradation are generally called as road surface damage. The severity of road damage seriously affects the speed of the vehicle and road.
This crack system adopts line scan camera and the line infrared laser to continuously collect the pavement data of the asphalt pavement and cement concrete pavement. Based on the images of the collected pavement to identify the asphalt pavement disease (11 types of disease such as crack, block crack, etc.)

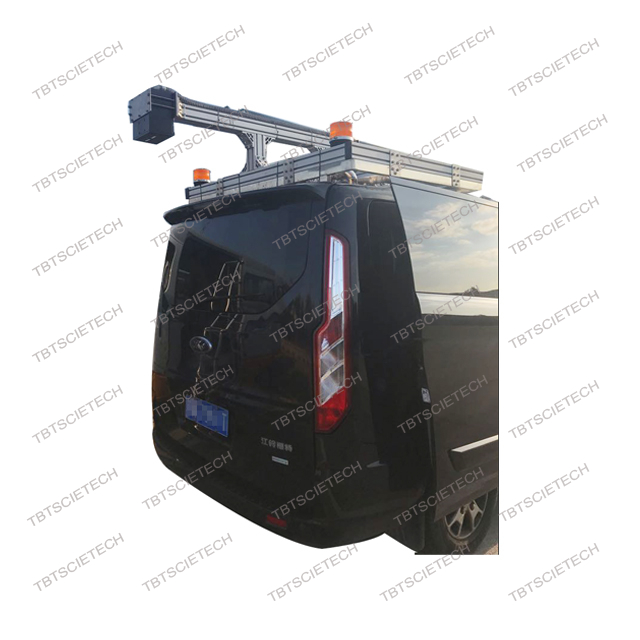

  • TBTCDS-1
  • TBTSCIETECH

The system adpots the high resolution line scan camera to seamlessly scan the lanes at longitudinal 1mm distance, each 2048mm forms a road image. Infrared laser-assisted illumination is used to achieve normal detection of road in all weather and special environments (such as tunnels, culverts, cloudy days, nights, etc.) to obtain real road images.

This system is 2D version;


1. Full lane coverage, complete data

The system adopts the special structure design of single camera/laser, the designed road surface detection width can reach 3.5m or above, realizing the collection of full-width road surface data.

2. Provide exposure and gain adjustment selection

The system supports camera exposure and gain adjustment. During the detecting process, a suitable solution can be quickly selected to improve the efficiency of manual adjustment.

3. High image quality

The system adopts a filter structure design, which eliminates the influence of natural light and vehicle body shadow on image quality, which ensures the image quality to be clear.



Item

Description

Specification

Camera

Resolution

2048 x 1


Sampling frequency

36kHz

Laser device

Power

7W

Item

Description

Specification











Crack system

Detecting speed

0~100km/hour

Continuous working time

More than 8 hours

Transverse effective detecting width

3.75m

Longitudinal sampling interval

1mm

Crack regonizing accuracy

1mm

Longitudinal and tranverse length measuring error

5%

Damage area measuring repeatability

95%

Damage area relative error

±5%

Image resolution

2048 x 2048

Mounting box protection grade

IP65
