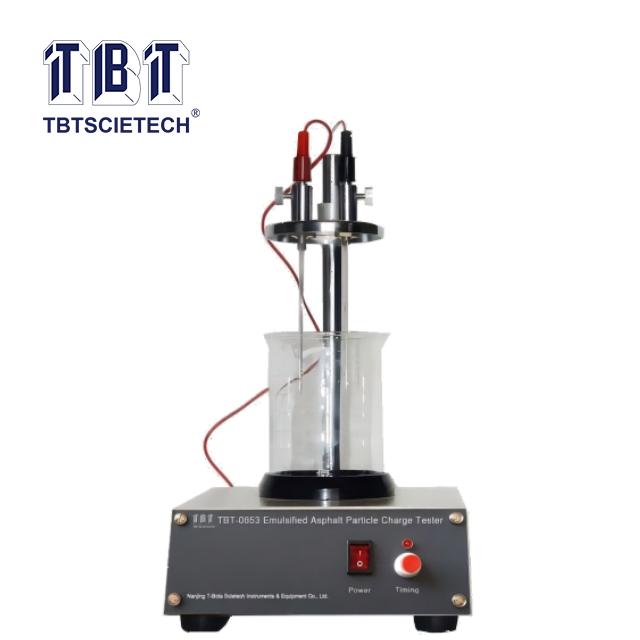

Emulsified Asphalt Particles Ionic Charge Tester

Share to:

Determine the electric charge characteristics of different kinds of emulsified asphalt particles ionics.

  • TBT-0653
  • TBTSCIETECH

This instrument is designed and made as per T 0653 Emulsified Asphalt Particles Ionic Charge Test and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering.

It is used to determine the electric charge characteristics of different kinds of emulsified asphalt particles ionics.


1. Desktop structure. Novel design and easy to use.

2. All test tools and vessels fully meet requirements of standard T 0653.

3. The outer shell are processed with spraying plastics. It has good anti-corrosive ability.


Power supply

220VAC 50HZ

Ambient temperature

35 ℃

Timing accuracy

3min±6s

Capacity of beaker

300ml

Test voltage

DC(6V±0.3V)

Dimension

280mm×180mm×260mm


No.

Name

Unit

Qty

1

 Emulsified Asphalt Particles Ionic Charge Tester

Set

1

2

Beaker300ml

Piece

1

3

Electrode plate

Piece

1

4

Electrode wire

Piece

1

5

Fuse 3A(φ5×20

Piece

2

6

Operation manual

Piece

1

7

Quality certificate

Piece

1

8

Product Warranty Card

Piece

1
