TBT-0609W
TBTSCIETECH
| Availability: | |
|---|---|

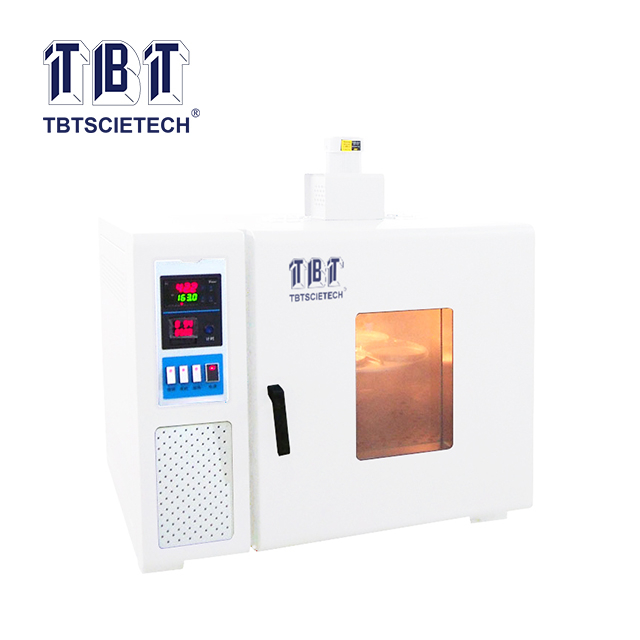

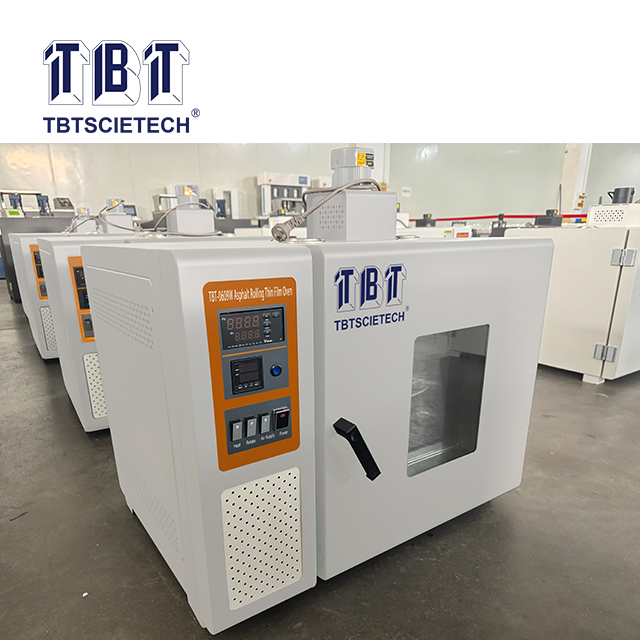

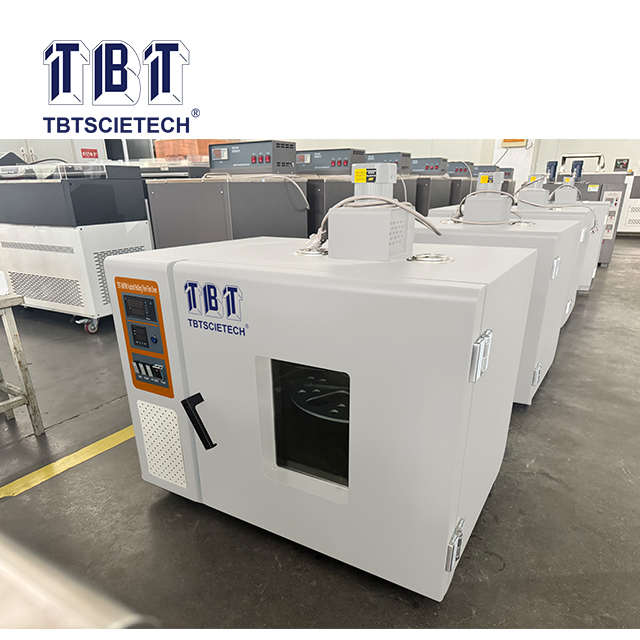

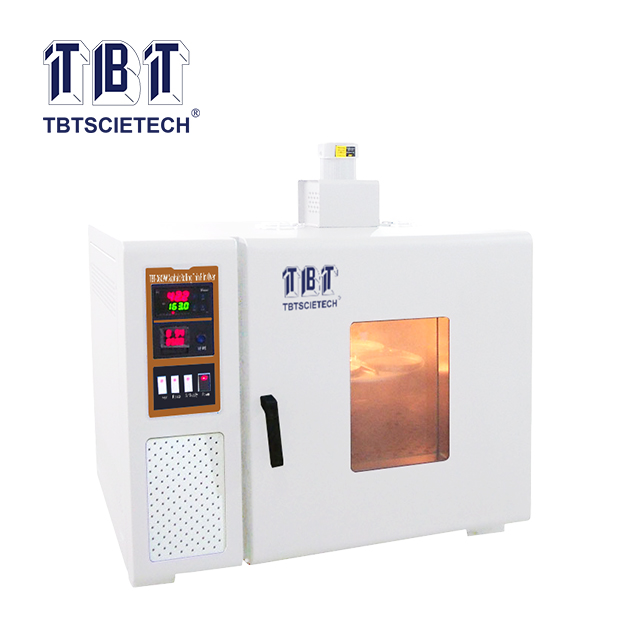

TBT-0609W Asphalt Thin Film Oven is used to determine the loss in mass (exclusive of water) of oil and bitumen and the effect of heat and air on a film of semi-solid bituminous material.
TBT-0609W Asphalt Thin Film Oven is used to determine the loss in mass (exclusive of water) of oil and bitumen and the effect of heat and air on a film of semi-solid bituminous material.
EN 13303, ASTM D6, AASHTO T47 for diameter 55x35 mm container
EN 12607-2, ASTM D1754, AASHTO T179 for diameter 140x9.5mm container
EN 13303, ASTM D6, AASHTO T47 for diameter 55x35 mm container
EN 12607-2, ASTM D1754, AASHTO T179 for diameter 140x9.5mm container
1. It is equipped with a high-precision temperature sensor, and the temperature of the working room is controlled by a temperature controller. It adopts "fuzzy PID" control, which has the advantages of smaller temperature overshoot, faster stabilization time, and better temperature control accuracy;
2. The main body is sprayed with plastic, and the working room is made of stainless steel;
3. The heating device is a flat electric heating wire, without open flame, evenly distributed, and fully controlled heating elements to ensure high-speed response, and the loss of heat conduction and radiation is very low. At the same time, the heating is uniform through convection through the upper and lower air ducts;

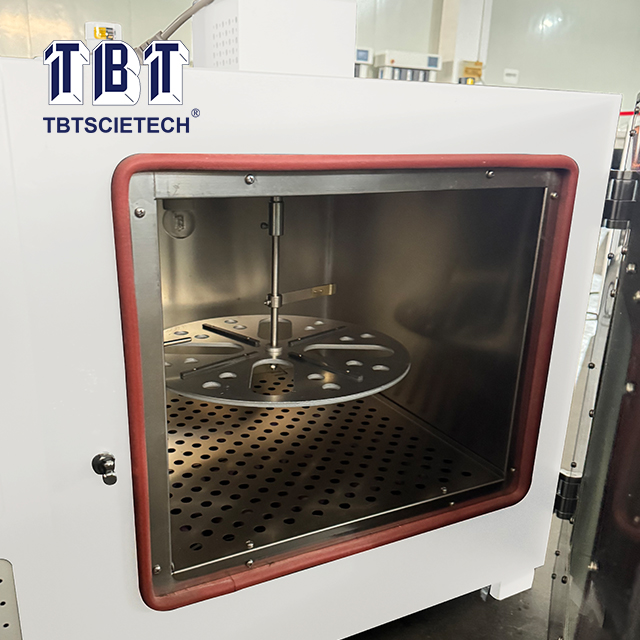

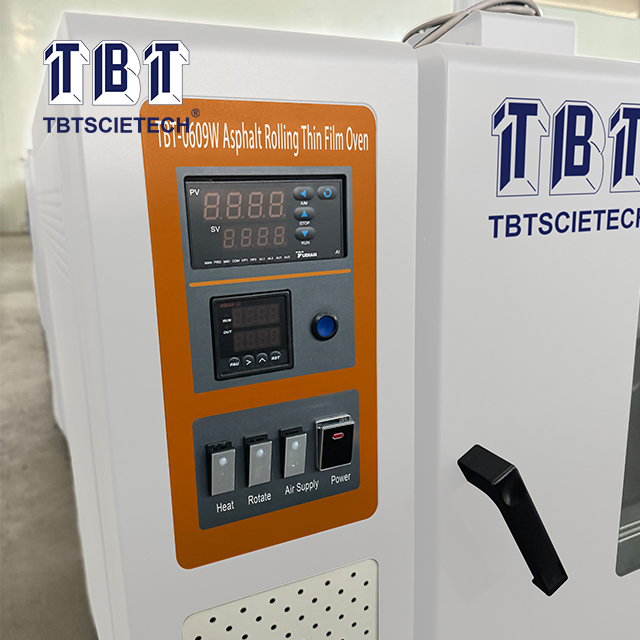

4. The left side of the oven is the electrical control part, and the variable speed motor ensures that the turntable speed is 5.5±1r/min;
5. The working room is equipped with a lighting lamp for outdoor observation;
6. The timing device can cut off the heating at the end of the test to ensure that the specimen is not over-aged.
1. It is equipped with a high-precision temperature sensor, and the temperature of the working room is controlled by a temperature controller. It adopts "fuzzy PID" control, which has the advantages of smaller temperature overshoot, faster stabilization time, and better temperature control accuracy;
2. The main body is sprayed with plastic, and the working room is made of stainless steel;
3. The heating device is a flat electric heating wire, without open flame, evenly distributed, and fully controlled heating elements to ensure high-speed response, and the loss of heat conduction and radiation is very low. At the same time, the heating is uniform through convection through the upper and lower air ducts;
4. The left side of the oven is the electrical control part, and the variable speed motor ensures that the turntable speed is 5.5±1r/min;
5. The working room is equipped with a lighting lamp for outdoor observation;
6. The timing device can cut off the heating at the end of the test to ensure that the specimen is not over-aged.
Temperature of workroom | 163℃ |
Temperature control accuracy | ±0.5℃ |
Rotate speed of turn plate | (5.5r±1r)/min |
Test sample quantity | 4 pieces |
Ambient temperature | 5℃~40℃ |
Relative humidity | ≤85％ |
Power | 2.0KW |
Power supply | 220VAC, 50HZ |
Temperature of workroom | 163℃ |
Temperature control accuracy | ±0.5℃ |
Rotate speed of turn plate | (5.5r±1r)/min |
Test sample quantity | 4 pieces |
Ambient temperature | 5℃~40℃ |
Relative humidity | ≤85％ |
Power | 2.0KW |
Power supply | 220VAC, 50HZ |
