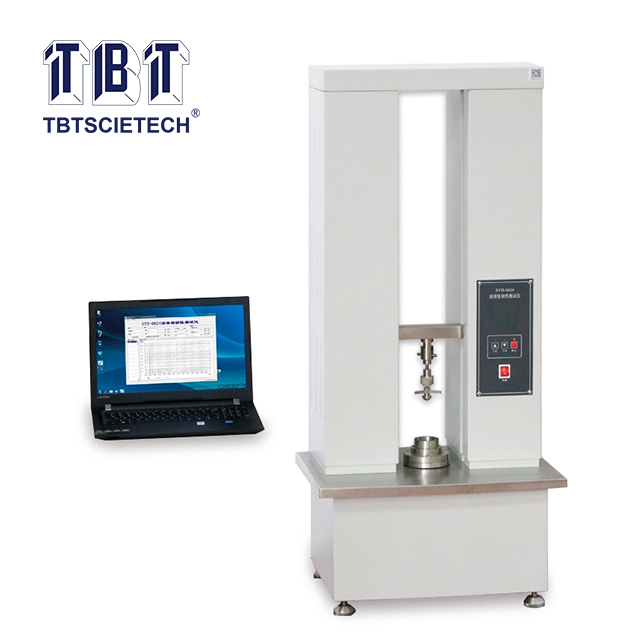

Asphalt Tenacity Tester
Asphalt Tenacity Tester Asphalt Tenacity Tester

loading

Asphalt Tenacity Tester

Share to:
sharethis sharing button
Determine the tenacity under specified conditions and evaluate the effect of asphalt adding modification agent .
  • TBT-0624

  • TBTSCIETECH

Availability:

The instrument is designed and made as per T0624-2011 and ASTM D5081 “Test of Asphalt Tenacity”. It is also used to design as per Petrochemical Industry Standard SH/T 0735-2003“Test Method for Asphalt Tenacity ”.

It is suitable to determine the tenacity under specified conditions and evaluate the effect of asphalt adding modification agent .


1.The instrument adopts the requirements of traffic industry and chemical industry .It can choose 300mm or 610mm stretch elongation .The tensile testing machine adopts double wire rod design.Stable and reliable operation , it also has high measuring precision .

2.The test software that we designed can draw load changing curve ,calculate the tenacity and toughness automatically and print test report .

3.The instrument test and test results calculation can be finished by the computer.It is convenient to use .

4.The design of the control panel is simple ,it can be easy to operate and finish the determination by the uplink key ,down key and the stop key.The test results calculation can be finished by the computer automatically .

5.It is equipped with A4 printer,so it can automatically draw and print out load-deformation curve ,and tenacity of asphalt .

6.The instrument adopts advanced design ,making fastidious ,beautiful appearance and simple operation.It also has noble character for high grade instrument.It is ideal choice of relevant construction ,supervision,scientific research institutes and colleges.

The best characteristic :it can operate and control the whole procedure by computer.And it can realize the test automatically for the tenacity of asphalt.


Drag speed

(500mm+10mm)/min;

Max drag force

1000N;

Dragging force un-linear error

<0.5%;

Dragging force sampling interval

0.5mm;

Max dragging length

610mm;

Power supply

AC220V+10%,50Hz;

Maximum power consumption

500W

Dimension

520mm*400mm*1220mm


No.

Name

Unit

Qty

1

Asphalt Tenacity Tester

Set

1

2

Positioning bracket combination

Piece

3

3

Sample cup

Piece

3

4

Backlash reed

Piece

1

5

Laptop

Set

1

6

Serial communication lines

Piece

1

7

Software CD

Piece

1

8

Fuse 5A (Φ5×20 )

Piece

2

9

Operation manual

Piece

1

10

Quality certificate

Piece

1

11

Repair guarantee

Piece

1
