TBTEMC-1C
TBTSCIETECH
| Availability: | |
|---|---|

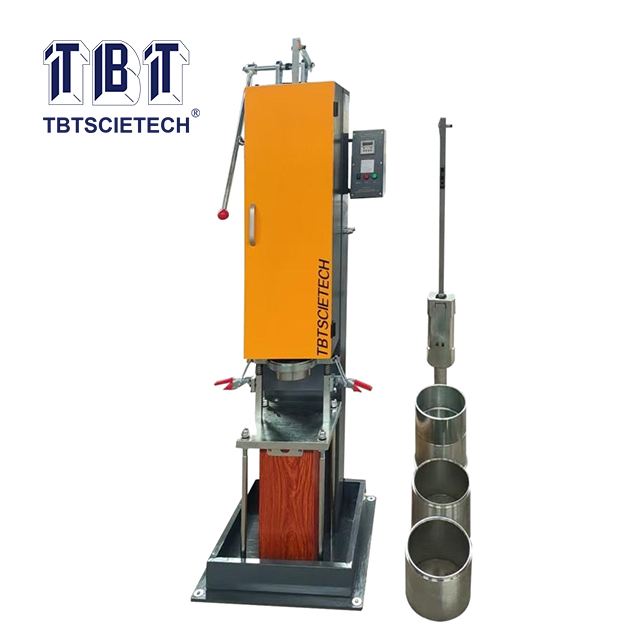

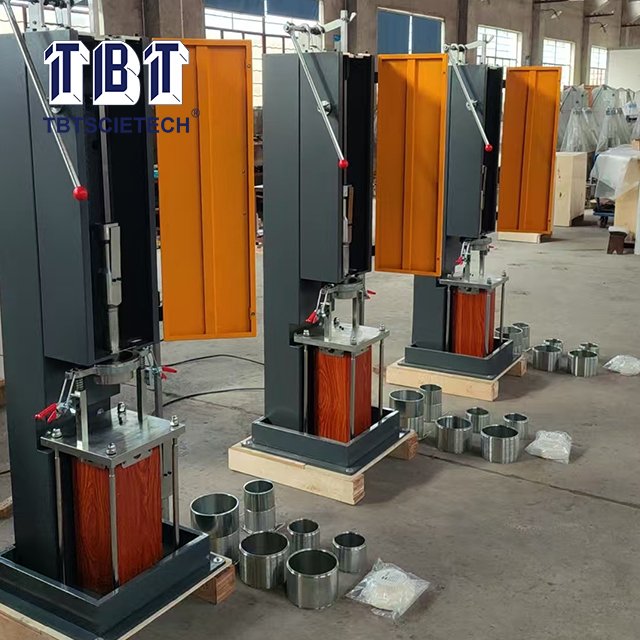

This instrument is a standard compactor for forming cylinder specimen of Φ101.6mm×63.5mm AND Φ152.4mm×95.3mm(selectable) used in standard Marshall test and indirect tensile test (split method).
This instrument is a standard compactor for forming cylinder specimen of Φ101.6mm×63.5mm AND Φ152.4mm×95.3mm(selectable) used in standard Marshall test and indirect tensile test (split method).
1. The instrument adopts the new advanced electroplating process,metal yogon,high hardness,good abrasion resistance.
2.With the electric control method to realize the automatic lifting of heavy hammer,self-locking,the start button - raise automatically,automatic stop,automatic reset,It will decrease the operators’ working strength and simplify the work procedure.
3.The instrument with dual use function,it can be used in both Φ101.6mm×63.5mm cylinder mold and Φ152.4mm×95.3mm big cylinder mold.
4.Tthe electric control adopts the large color touch screen technology,and has the key control to realize the double insurance.It’s convenient operation and high accuracy control.
5.mold accurate positioning,dead locking structure of compaction test mold,safe reliability of instrument operation.
6.Preset the compaction times to realize the automatic compaction technology.It’s convenient to debug and do self-inspection.
7.With the automatic emergency stop button,it can stop at any time and any condition by pressing the button.
1. The instrument adopts the new advanced electroplating process,metal yogon,high hardness,good abrasion resistance.
2.With the electric control method to realize the automatic lifting of heavy hammer,self-locking,the start button - raise automatically,automatic stop,automatic reset,It will decrease the operators’ working strength and simplify the work procedure.
3.The instrument with dual use function,it can be used in both Φ101.6mm×63.5mm cylinder mold and Φ152.4mm×95.3mm big cylinder mold.
4.Tthe electric control adopts the large color touch screen technology,and has the key control to realize the double insurance.It’s convenient operation and high accuracy control.
5.mold accurate positioning,dead locking structure of compaction test mold,safe reliability of instrument operation.
6.Preset the compaction times to realize the automatic compaction technology.It’s convenient to debug and do self-inspection.
7.With the automatic emergency stop button,it can stop at any time and any condition by pressing the button.
Hammer 1 | 4536g±9g |
Hammer 2 | 10210g±10g |
Falling of Hammer | 457mm±1.5mm |
Mould 1 | Suitable for Φ101.6mm×63.5mm |
Mould 2 | Suitable for Φ152.4mm×95.3mm |
Compaction speed | (60±5)times/min |
Compaction time | (0～999)times |
Wooden compaction base | 457mm×200mm×200mm |
Concrete compaction base | 120mm×460mm×480mm |
Power supply | AC（220±10%）V,50Hz |
Motor power | 370W |
Overall dimension | 1950mm×540mm×540mm |
Net weight | About 180kg |
Hammer 1 | 4536g±9g |
Hammer 2 | 10210g±10g |
Falling of Hammer | 457mm±1.5mm |
Mould 1 | Suitable for Φ101.6mm×63.5mm |
Mould 2 | Suitable for Φ152.4mm×95.3mm |
Compaction speed | (60±5)times/min |
Compaction time | (0～999)times |
Wooden compaction base | 457mm×200mm×200mm |
Concrete compaction base | 120mm×460mm×480mm |
Power supply | AC（220±10%）V,50Hz |
Motor power | 370W |
Overall dimension | 1950mm×540mm×540mm |
Net weight | About 180kg |
No. | Name | Unit | Qty | Memo | |
1 | Marshall Electric Compactor | Set | 1 | ||
2 | Marshall Electric Compactor”Controller | Set | 1 | ||
3 | Big test mode（Φ152.4㎜） | Piece | 6 | ||
4 | Big test mode pressing sleeve | Piece | 1 | ||
5 | Small test mode（Φ101.6㎜） | Piece | 6 | ||
6 | Small test mode pressing sleeve | Piece | 1 | ||
7 | Big test mode seat | Piece | 1 | ||
8 | Small test mode seat | Piece | 1 | ||
9 | Heavy hammer 1（10210g±10g） | One of them installed on machine | Piece | 1 | |
10 | Heavy hammer 2（4536g±9g） | Piece | 1 | ||
11 | Power line（250V/6A） | Piece | 1 | ||
12 | The connecting line of main engine and controller | Piece | 1 | ||
13 | Stripper | Piece | 1 | Optional | |
14 | Operation manual | Piece | 1 | ||
15 | Quality certificate | Piece | 1 | ||
16 | Repair guarantee | Piece | 1 | ||
No. | Name | Unit | Qty | Memo | |
1 | Marshall Electric Compactor | Set | 1 | ||
2 | Marshall Electric Compactor”Controller | Set | 1 | ||
3 | Big test mode（Φ152.4㎜） | Piece | 6 | ||
4 | Big test mode pressing sleeve | Piece | 1 | ||
5 | Small test mode（Φ101.6㎜） | Piece | 6 | ||
6 | Small test mode pressing sleeve | Piece | 1 | ||
7 | Big test mode seat | Piece | 1 | ||
8 | Small test mode seat | Piece | 1 | ||
9 | Heavy hammer 1（10210g±10g） | One of them installed on machine | Piece | 1 | |
10 | Heavy hammer 2（4536g±9g） | Piece | 1 | ||
11 | Power line（250V/6A） | Piece | 1 | ||
12 | The connecting line of main engine and controller | Piece | 1 | ||
13 | Stripper | Piece | 1 | Optional | |
14 | Operation manual | Piece | 1 | ||
15 | Quality certificate | Piece | 1 | ||
16 | Repair guarantee | Piece | 1 | ||
