TBTACZ-5
TBTSCIETECH
| Availability: | |
|---|---|

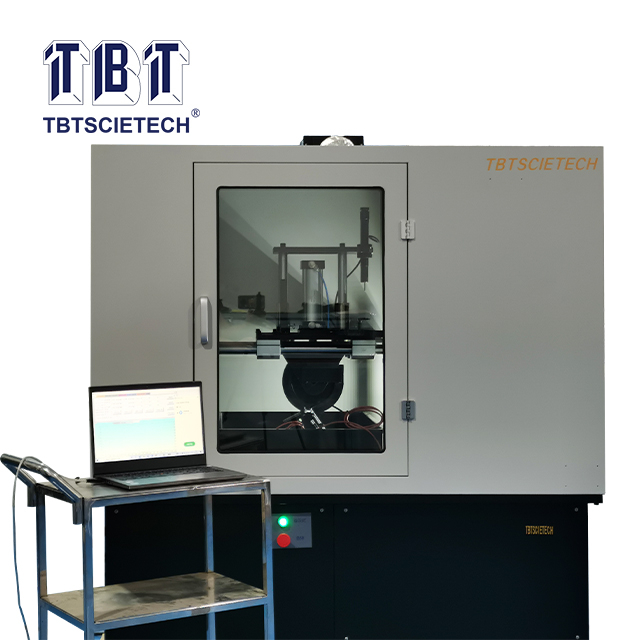

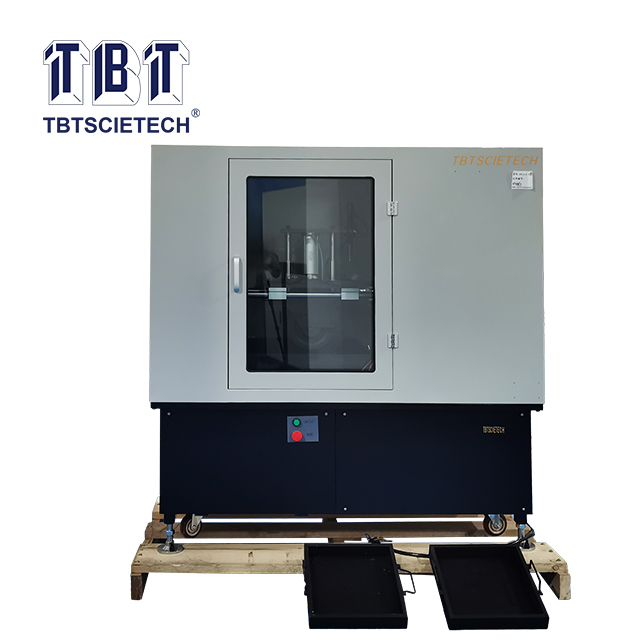

This machine is designed and made as per industrial standard Wheel Track Test for Bituminous Materials.

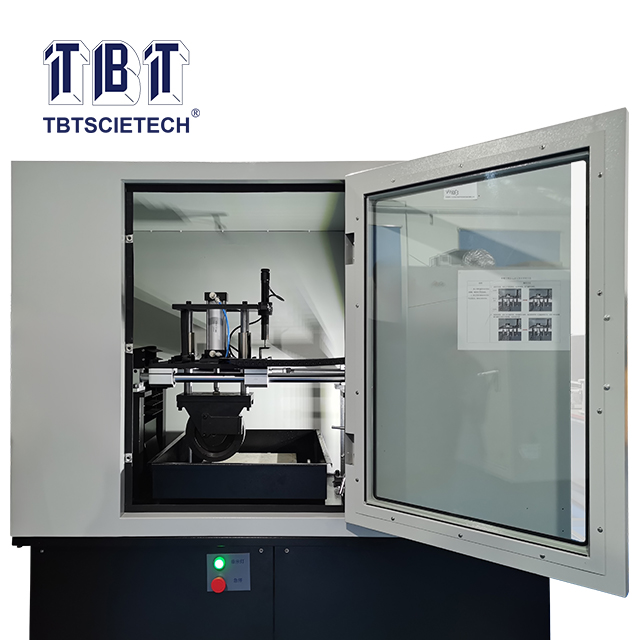

Machine main principle is making one loading wheel moving on a sample to imitate the real vehicle wheel running on the pavement; The whole test can be completed fully automatically; The deformation and temperature will be recorded by data acquisition system automatically.
This machine is designed and made as per industrial standard Wheel Track Test for Bituminous Materials.
Machine main principle is making one loading wheel moving on a sample to imitate the real vehicle wheel running on the pavement; The whole test can be completed fully automatically; The deformation and temperature will be recorded by data acquisition system automatically.
1. PWM temperature control. It can control ：
1.1 Water temperature in chamber during water immersed wheel track test
1.2 Ambient temperature of constant temperature chamber at a time.
2. The constant temperature chamber adopts outside circulatory heating mode. The uniformity and stability is good. No overshoots
3. It shows time-displacement curves and time- temperature curves during a test.
4. It equips an absolute temperature sensor. No temperature drift in a long time test.

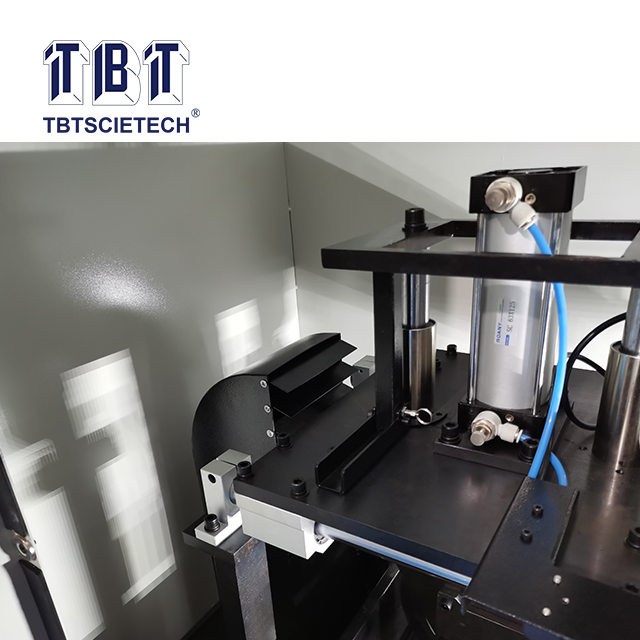

5. The mechanical structure adopts wheel movement mode.
6. One wheel tester. It can determine both water immersion test or no water immersion test.
1. PWM temperature control. It can control ：
1.1 Water temperature in chamber during water immersed wheel track test
1.2 Ambient temperature of constant temperature chamber at a time.
2. The constant temperature chamber adopts outside circulatory heating mode. The uniformity and stability is good. No overshoots
3. It shows time-displacement curves and time- temperature curves during a test.
4. It equips an absolute temperature sensor. No temperature drift in a long time test.
5. The mechanical structure adopts wheel movement mode.
6. One wheel tester. It can determine both water immersion test or no water immersion test.
Working mode: | water immersion test and non-immersion test |
Temperature measurement accuracy: | ±0.1 °C |
Ambient temperature control accuracy: | ±1 °C |
Number of temperature measurement channels: | 2 |
Displacement measurement accuracy: | ±0.01mm |
Displacement measurement range: | 0 to 30 (mm) |
Temperature setting range: | 40 to 80 (°C) |
Working mode: | water immersion test and non-immersion test |
Temperature measurement accuracy: | ±0.1 °C |
Ambient temperature control accuracy: | ±1 °C |
Number of temperature measurement channels: | 2 |
Displacement measurement accuracy: | ±0.01mm |
Displacement measurement range: | 0 to 30 (mm) |
Temperature setting range: | 40 to 80 (°C) |
No. | Name | Unit | Qty | Memo |
1 | Automatic Wheel Tracker | Set | 1 | |
2 | Computer | Set | 1 | |
3 | Printer | Set | 1 | |
4 | 380V power line | Piece | 1 | |
5 | Test mode 50mm | Piece | 3 | |
6 | Operation manual | Piece | 1 | |
| 7 | Air compressor | Set | 1 | |
8 | Quality certificate | Piece | 1 | |
9 | Repair guarantee | Piece | 1 |
No. | Name | Unit | Qty | Memo |
1 | Automatic Wheel Tracker | Set | 1 | |
2 | Computer | Set | 1 | |
3 | Printer | Set | 1 | |
4 | 380V power line | Piece | 1 | |
5 | Test mode 50mm | Piece | 3 | |
6 | Operation manual | Piece | 1 | |
| 7 | Air compressor | Set | 1 | |
8 | Quality certificate | Piece | 1 | |
9 | Repair guarantee | Piece | 1 |
