TBTMWD-50SC/30SC
TBTSCIETECH
| Availability: | |
|---|---|

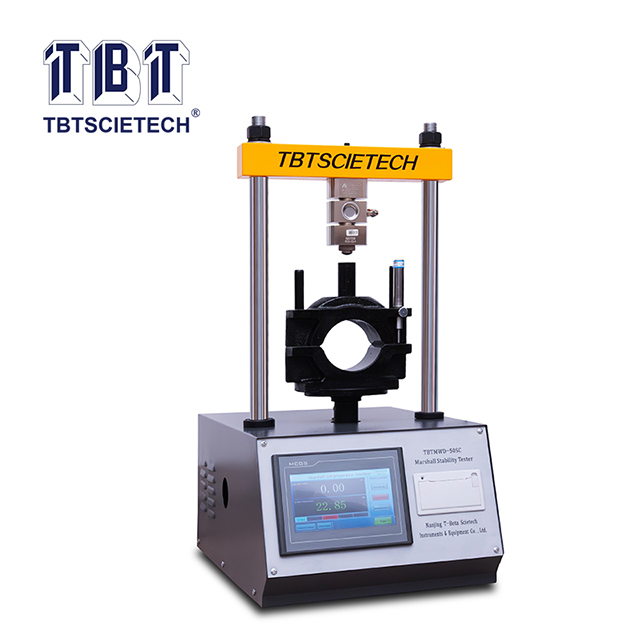

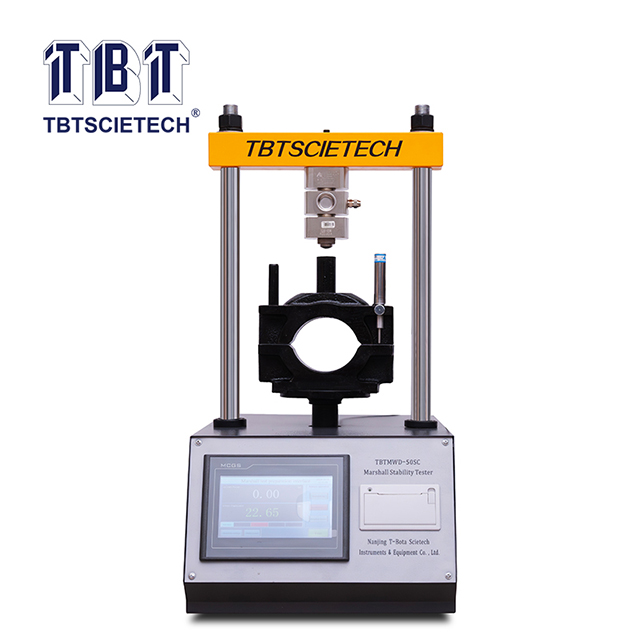

This instrument is designed and made as per industrial standard T0709-2011 in TG E20-2011 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering. Marshall Stability Tester is used to determine the stability and flow value of asphalt mixture, which is compressed under certain temperature and speed. TBTMWD-30SC / TBTMWD-50SC is touch screen display type with capacity of 30/50KN；
Machine can be connected to the software to display the curve on computer;
This instrument is designed and made as per industrial standard T0709-2011 in TG E20-2011 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering. Marshall Stability Tester is used to determine the stability and flow value of asphalt mixture, which is compressed under certain temperature and speed. TBTMWD-30SC / TBTMWD-50SC is touch screen display type with capacity of 30/50KN；
Machine can be connected to the software to display the curve on computer;
The apparatus is used to determine thermal stability of bituminous mix material and capability of resisting-plastic deformation and flow value of the material as well as providing accurate basis For the composition of bituminous mix material.
The apparatus is used to determine thermal stability of bituminous mix material and capability of resisting-plastic deformation and flow value of the material as well as providing accurate basis For the composition of bituminous mix material.
Max. Capacity | 50KN - TBTMWD-50SC 30KN - TBTMWD-30SC |
Loading speed | 50±5mm/min |
Load cell capacity | 50kN S-type (30KN optional) |
Controller | Touch screen with built-in printer |
Specimen size | D101.6mm / 152.4mm |
Power supply | 220VAC 50HZ / 60HZ |
Motor capacity | 600W |
Communication port | R232 |
Note | Digital display type and LCD display type is also available. |
Max. Capacity | 50KN - TBTMWD-50SC 30KN - TBTMWD-30SC |
Loading speed | 50±5mm/min |
Load cell capacity | 50kN S-type (30KN optional) |
Controller | Touch screen with built-in printer |
Specimen size | D101.6mm / 152.4mm |
Power supply | 220VAC 50HZ / 60HZ |
Motor capacity | 600W |
Communication port | R232 |
Note | Digital display type and LCD display type is also available. |
