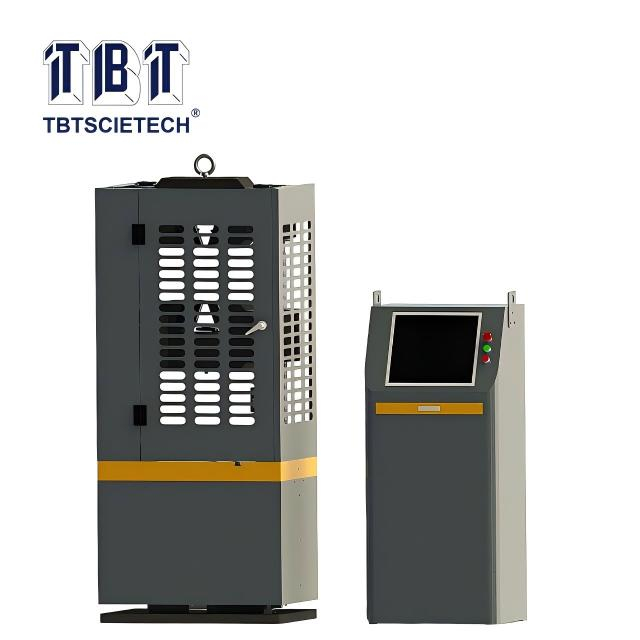

TBTUTM-1000CT
TBTSCIETECH
| TBTUTM-1000CT: | |
|---|---|
| TBTUTM-1000CSI: | |
| : | |
| Availability: | |
The testing machine is mainly designed for the tension test, compression test and bending test of metal, also for non-metal of compression test, such as concrete and stone. If the proper jigs are provided, it can be used for various tests in the laboratories of mills, factories, colleges and research units concerned.
It is featured with hydraulic loading, electronic force measurement, the load, the test process with curve can be displayed on the computer screen, and the data can be saved and printed out. It is overload protection. The oil cylinder is fitted on the bottom of the main frame, which is suitable for the compression test and all the annex will be provided for the technological tests of the metal.
The testing machine is mainly designed for the tension test, compression test and bending test of metal, also for non-metal of compression test, such as concrete and stone. If the proper jigs are provided, it can be used for various tests in the laboratories of mills, factories, colleges and research units concerned.
It is featured with hydraulic loading, electronic force measurement, the load, the test process with curve can be displayed on the computer screen, and the data can be saved and printed out. It is overload protection. The oil cylinder is fitted on the bottom of the main frame, which is suitable for the compression test and all the annex will be provided for the technological tests of the metal.
A. Entire load without divide gear, the performance is more superior.
B. Adopt Cotex_M3 32-bit high-speed ARM chip as the main control chip, with high computing speed and data processing capabilities, in a short working time to complete data acquisition, PID computing, Ethernet communication to the output control of the entire control process, in order to achieve Accurate closed-loop control of the testing machine.
C. Hydraulic system with high quality hydraulic components, to ensure long-term system, stable operation.
D. With overload, limit and other protection features, safe and reliable.
E. Adopt safe and reliable digital servo valve, anti-pollution, high precision.
F. Up and down the beam to form tensile space, the lower beam and test bench to form a compression space, to facilitate the completion of a variety of tests.
A. Entire load without divide gear, the performance is more superior.
B. Adopt Cotex_M3 32-bit high-speed ARM chip as the main control chip, with high computing speed and data processing capabilities, in a short working time to complete data acquisition, PID computing, Ethernet communication to the output control of the entire control process, in order to achieve Accurate closed-loop control of the testing machine.
C. Hydraulic system with high quality hydraulic components, to ensure long-term system, stable operation.
D. With overload, limit and other protection features, safe and reliable.
E. Adopt safe and reliable digital servo valve, anti-pollution, high precision.
F. Up and down the beam to form tensile space, the lower beam and test bench to form a compression space, to facilitate the completion of a variety of tests.
| Model | TBTUTM-100CT | TBTUTM-300CT | TBTUTM-600CT | TBTUTM-1000CT |
| Max. Capacity(KN) | 100 | 300 | 600 | 1000 |
| Range | 2%-100%F.S.(full range, without gear) | |||
| Reading accuracy | Grade 1(option Grade 0.5) | |||
| Error | ±1% (±0.5%) | |||
| Column Number | 4 | 4 | 4 | 6 |
| Width between two column | 345 | 430 | 515 | 510 |
| Max tensile space(mm) | 500 | 600 | 600 | 600 |
| Max compression space(mm) | 500 | 600 | 600 | 600 |
| Bending test Distance between two points (mm) | 100-270 | 100-350 | 100-400 | 100-400 |
| Round specimen clamp diameter(mm) | Ø6-Ø22 | Ø10-Ø32 | Ø13-Ø40 | Ø14-32,Ø32-45 |
| Flat specimen clamp thickness (mm) | 0-15 | 0-15 | 0-15 | 0-40 |
| Stroke (mm) | 150 | 200 | ||
| Pistons rise fastest speed(mm/min) | 100 | 80 | ||
| Beam rising speed (mm/min) | 310 | 250 | 250 | 310 |
| Displacement reading relative error | ±1% (±0.5%) | |||
| Deformation reading relative error | ±1% (±0.5%) | |||
| Motor capacity (KW) | 2 | 2.5 | ||
| Main unit dimension (mm) | 665×490×1600 | 740×460×1900 | 850×560×2000 | 960×620×2100 |
| Main unit net weight (Kg) | 600 | 1200 | 1750 | 2200 |
