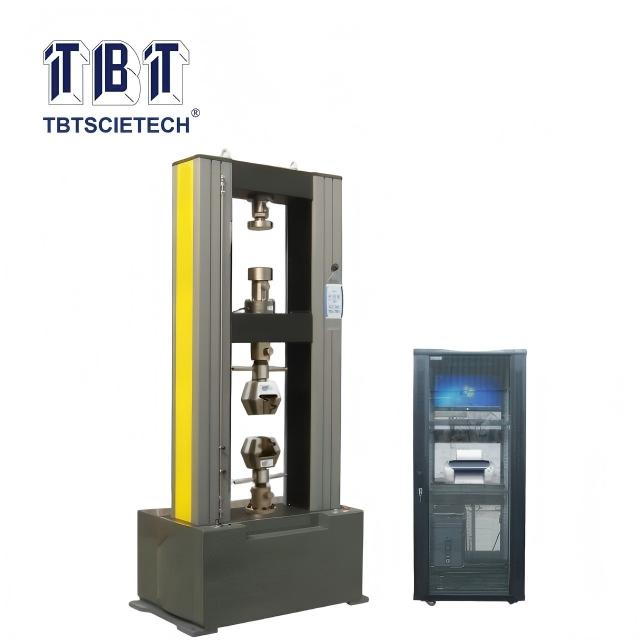

Servo Control Electronic Universal Testing Machine Two Column

Share to:
sharethis sharing button
This Servo Auto electromechanical universal testing machine mainly used to test tension, compression, bending, peeling, tearing and other mechanical property for metallic, nonmetallic and composite materials.
  • TBTWDW-200H

  • TBTSCIETECH

Availability:

Adopting aluminum alloy cover, with attractive streamline structure, mainly used to test mechanical properties for metals, nonmetals and composites.

With precise automatic control and data acquisition system to realize full digitalization adjustment to data acquisition and control process.

After tensile test, the above parameters can be calculated automatically through computer according to the test parameters, which are set before test and meantime display the corresponding test results. All test parameters can be saved and inquired after test, also can be connected with printer for report print.




1. with remote control box to realize speed adjustment of crossbeam, flexibly and freely switched;

2. with function of automatic return to original position, intelligently, efficiently, quickly;

3. with limit protection function of any working position and over voltage, over current protection functions, reliable, safe;

4. with powerful test data, which can save, inquire and retrieve test data anytime.

5. with many control modes of constant speed control to force, stress, deformation, strain, stroke, load, elongation, displacement and low cycle and user self-programming control;

6. switch among many test curves: stress-strain curve, load-deformation curve, load-displacement curve, load-time curve, deformation-time curve, displacement-time curve, load-strain curve. Partial enlargement, overlap and comparison.




No.

Items

Technical Specification

1

Max. Test force

200KN

2

Load class

Class 0.5

3

Measuring range of load

5%-100%

4

Relative error of indicating value

Within ±1.0%

5

Load resolution

1/±300000F.S (with unchanged resolution during the whole test)

6

Measuring range of deformation

0.2%-100%

7

Control precision of load rate

Within ±1%

8

Control precision of deformation rate

Within ±1%

9

Adjusting range of displacement rate

0.005-500mm/min

10

Control precision of displacement rate

Within ±0.2% of the set value

11

Stroke of cross head

1250mm

12

Span between columns

610mm

13

Control mode

Computer control

14

Power supply

1ph, 380V, 50Hz

15

Power (W)

5000W

16

Dimension (L*W*H)

Around 1050*750*2600mm



1





Load frame

Aluminium housing with streamline design

High intensity loading frame structure

 high stiffness to assure accuracy

1 set

2

AC Servo speed adjusting motor and driver

     American Estun

1set

3

Load cell

      Capacity: 200kN

      Brand: American Celtron

1 pc

4

Tensile test attachment   / Wedge gripper

1 set

6

Compression test attachment

Round pressure platen: Diameter Ф200mm

1 set

7

PCLenovo brand  /2G memeory/500G hard disk/18.5"LCD screen

1set

8

Control Test Software

1set


图片1图片2图片4图片5图片6
