TBTTLDJ-1
TBTSCIETECH
| Availability: | |
|---|---|

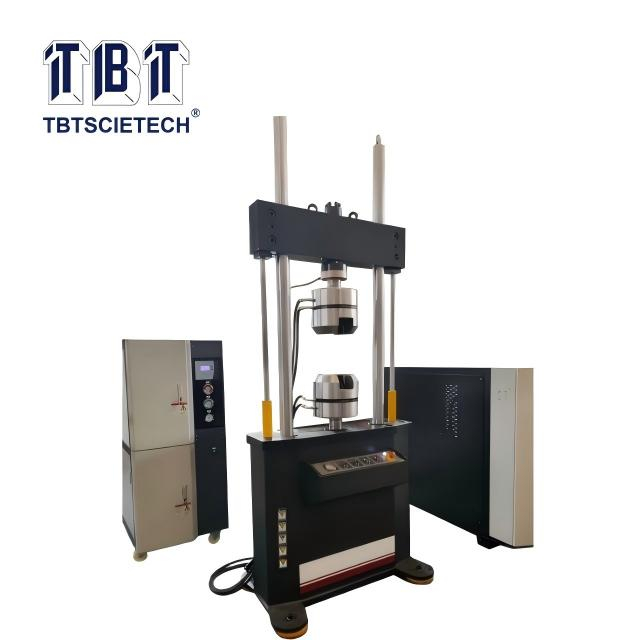

TBTTLDJ-1 computer controlled electro-hydraulic servo dynamic & static universal testing machine is suitable for fatigue test and static mechanical performance test of metal and non-metallic materials, including materials and parts tensile, compression, low-cycle and high-cycle fatigue tests. The machine can perform following tests:
1. Test elastic stiffness, static stiffness, fatigue test and other items of rubber and plastic parts, isolator and other elastic components.
2. Fix different attachment, it can do dynamic and static mechanical performance tests of metal materials and other components.
TBTTLDJ-1 computer controlled electro-hydraulic servo dynamic & static universal testing machine is suitable for fatigue test and static mechanical performance test of metal and non-metallic materials, including materials and parts tensile, compression, low-cycle and high-cycle fatigue tests. The machine can perform following tests:
1. Test elastic stiffness, static stiffness, fatigue test and other items of rubber and plastic parts, isolator and other elastic components.
2. Fix different attachment, it can do dynamic and static mechanical performance tests of metal materials and other components.
1. High rigidity double-column door-type main loading frame.
2. Intelligent constant voltage mute power source.
3. Full digital dynamic and static control system.
4. English computer operation application software.
5. Advantech industrial computers and printers.
6. Test related conventional aids.
1. High rigidity double-column door-type main loading frame.
2. Intelligent constant voltage mute power source.
3. Full digital dynamic and static control system.
4. English computer operation application software.
5. Advantech industrial computers and printers.
6. Test related conventional aids.
Model | TBTTLDJ-1 |
Maximum test force KN (dynamic and static) | ±120 |
Load frame | Two columns / four columns |
Effective column width | 600 |
Test space | 800 |
Test force measurement range | dynamic 2%～100%FS |
Force accuracy and fluctuation | better than the indicated value of 1%; amplitude fluctuation is not greater than ± 1% of each range |
Test force resolution | 1/250000 yards |
Test force indication accuracy | ± 1% dynamic; 0.5% static |
Displacement measurement range | 100mm(±50mm) |
Displacement measurement resolution | 0.001mmm |
Displacement indication accuracy | within 1% of indication accuracy within ± 0.5% FS |
Deformation Indication accuracy | From 2%, within ± 0.5% |
Frequency range | 0.01-30HZ |
Main wave | Sine wave, pulse wave, square wave, sawtooth wave, random wave (mainly supported by the controller) |
Auxiliary | force flat push clamp, with tensile bar and side jaw Compression aid |
Oil cooler | Maximum motor power: 20kW. Refrigeration power: 58kW |
Model | TBTTLDJ-1 |
Maximum test force KN (dynamic and static) | ±120 |
Load frame | Two columns / four columns |
Effective column width | 600 |
Test space | 800 |
Test force measurement range | dynamic 2%～100%FS |
Force accuracy and fluctuation | better than the indicated value of 1%; amplitude fluctuation is not greater than ± 1% of each range |
Test force resolution | 1/250000 yards |
Test force indication accuracy | ± 1% dynamic; 0.5% static |
Displacement measurement range | 100mm(±50mm) |
Displacement measurement resolution | 0.001mmm |
Displacement indication accuracy | within 1% of indication accuracy within ± 0.5% FS |
Deformation Indication accuracy | From 2%, within ± 0.5% |
Frequency range | 0.01-30HZ |
Main wave | Sine wave, pulse wave, square wave, sawtooth wave, random wave (mainly supported by the controller) |
Auxiliary | force flat push clamp, with tensile bar and side jaw Compression aid |
Oil cooler | Maximum motor power: 20kW. Refrigeration power: 58kW |
