TBTASQ-1
TBTSCIETECH
| Availability: | |
|---|---|

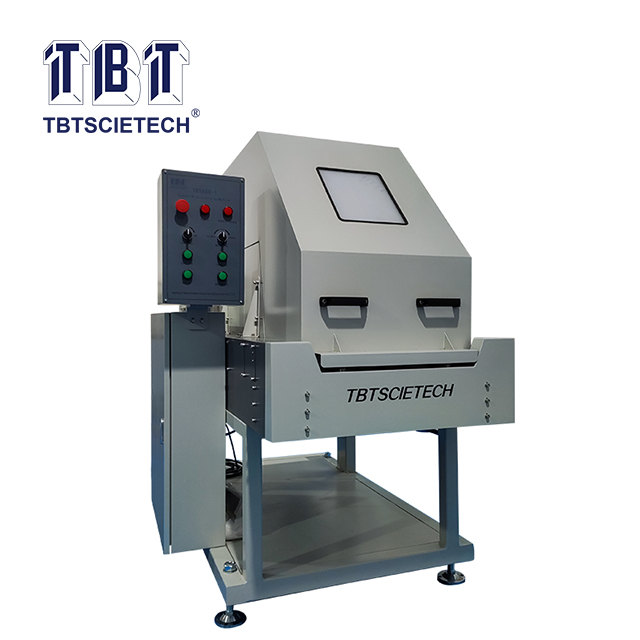

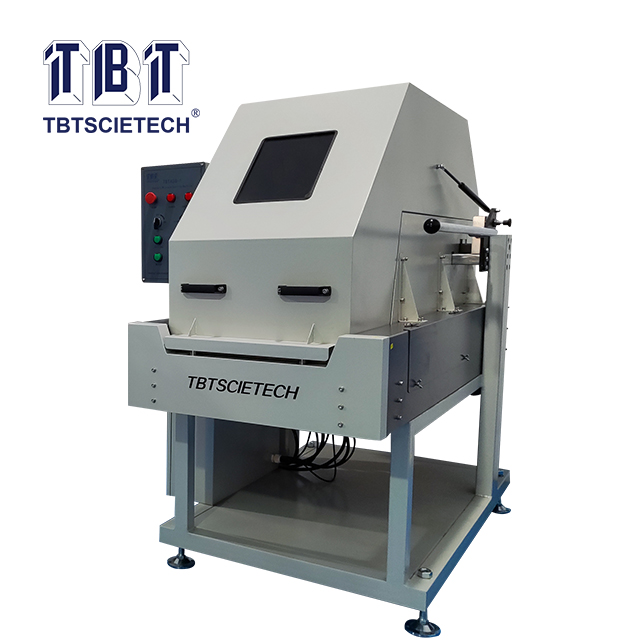

TBTASQ-1 Asphalt Mixture Cutting Machine is used to cut asphalt specimen for Asphalt Mixture Bending Test, Asphalt Mixture Shearing Strength Test and Asphalt Mixture Uniaxial Compression Dynamic Modulus Test.
It adopts waterproof motor, rigid steel frame, can perform good cutting stability with high accuracy and smooth surface.
TBTASQ-1 Asphalt Mixture Cutting Machine is used to cut asphalt specimen for Asphalt Mixture Bending Test, Asphalt Mixture Shearing Strength Test and Asphalt Mixture Uniaxial Compression Dynamic Modulus Test.
It adopts waterproof motor, rigid steel frame, can perform good cutting stability with high accuracy and smooth surface.
1. Composed by steel main unit and electronic control box;
2. Select suitable diamond saw blade according to asphalt specimen strength and grade;
3. Adopts high precision transmission system to ensure the cutting accuracy with the range of 0.15~0.2mm;

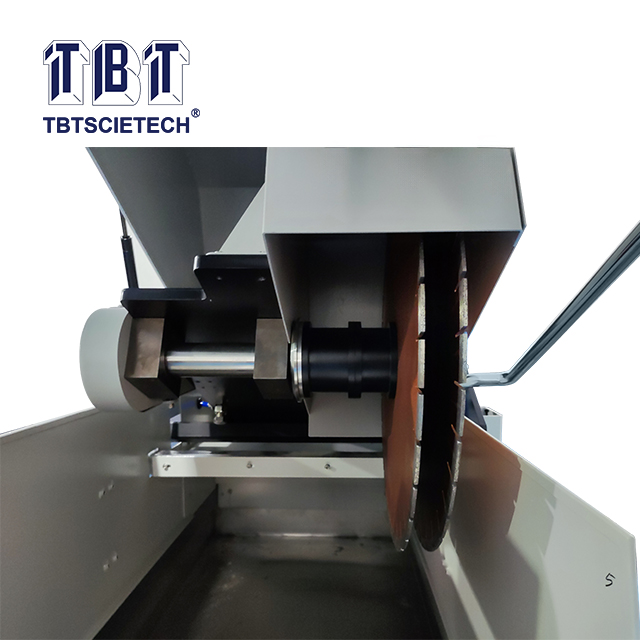

4. Double saw blade design, blade feeding speed adjustable;

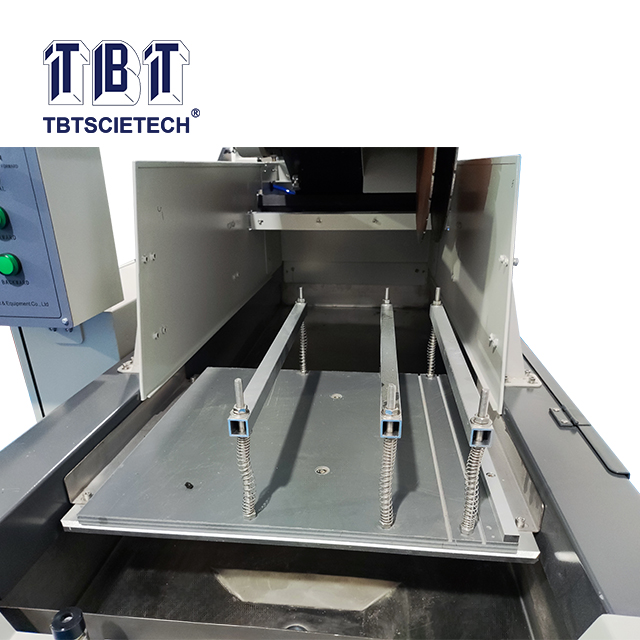

5. Changing different clamps can cut different types of asphalt specimen, easy operating;

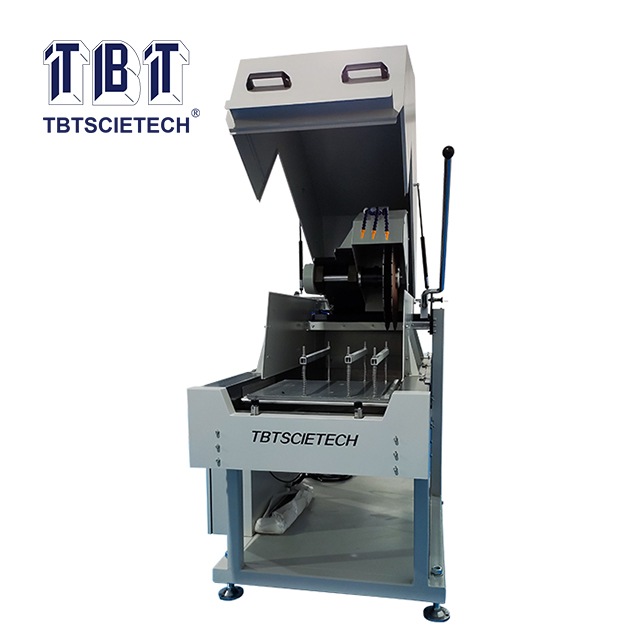

6. Fully sealing safety cover, low noise;

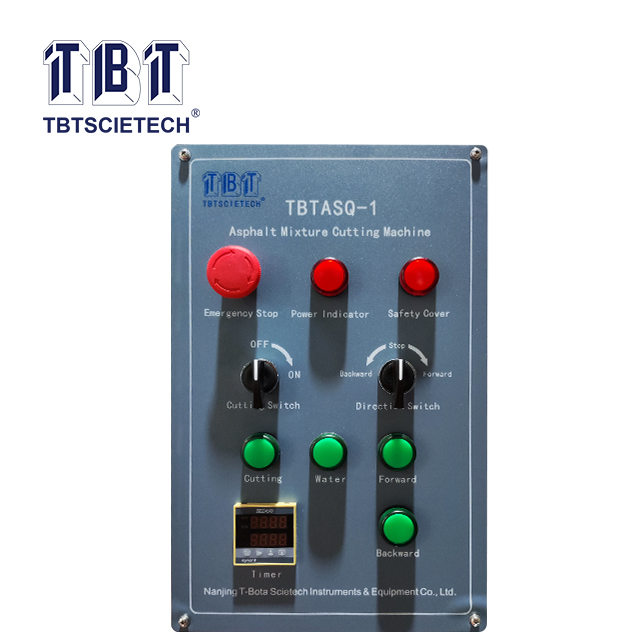

7. Cutting process are fully automatic controlled via electronic controller;-.
1. Composed by steel main unit and electronic control box;
2. Select suitable diamond saw blade according to asphalt specimen strength and grade;
3. Adopts high precision transmission system to ensure the cutting accuracy with the range of 0.15~0.2mm;
4. Double saw blade design, blade feeding speed adjustable;
5. Changing different clamps can cut different types of asphalt specimen, easy operating;
6. Fully sealing safety cover, low noise;
7. Cutting process are fully automatic controlled via electronic controller;-.
Saw Blade Rotating Speed | 3000r/min |
Saw Blade Diameter | D470mm or D500mm |
Adopted Specimen Size | Cylinder specimen: D100mm Cylinder specimen: D150mm Cuboid specimen: thickness from 25mm to 150mm(optional) |
Working Temperature & Humidity | 5~35℃ & ≤85% R.H |
Motor Waterproof Grade | IP56 |
Cutting Accuracy | 0.15~0.2mm |
Cutting Power | 4000W |
Power Supply | 380VAC 50Hz |
Saw Blade Rotating Speed | 3000r/min |
Saw Blade Diameter | D470mm or D500mm |
Adopted Specimen Size | Cylinder specimen: D100mm Cylinder specimen: D150mm Cuboid specimen: thickness from 25mm to 150mm(optional) |
Working Temperature & Humidity | 5~35℃ & ≤85% R.H |
Motor Waterproof Grade | IP56 |
Cutting Accuracy | 0.15~0.2mm |
Cutting Power | 4000W |
Power Supply | 380VAC 50Hz |
